SC778 Electric Radiator Rocker Switch, Double Pole,, BAOKEZHEN Brand

Name: SC778 Electric Radiator Rocker Switch, Double Pole,, BAOKEZHEN Brand
Brand: BAOKEZHEN
SKU: 118128545
Availability: InStock

Negotiable MOQ: 20000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

BAOKEZHEN

Model Number:

SC778 electric radiator rocker switch

Shenzhen Baokezhen Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen or other Guangdong port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name BAOKEZHEN

Model Number SC778 electric radiator rocker switch

Max. Current 10A

Max. Voltage 125VAC/250VAC

Mechanical Life 5E4

Product Description

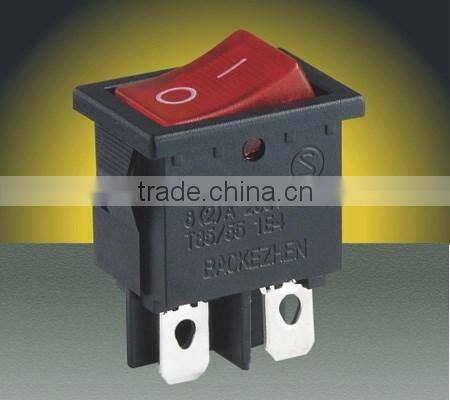

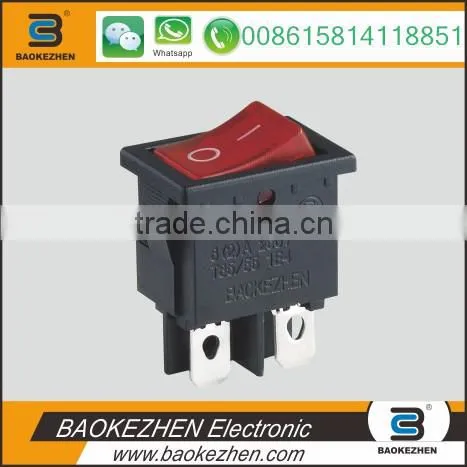

SC778 Electric radiator rocker switch, double pole rocker switch, BAOKEZHEN rocker switch

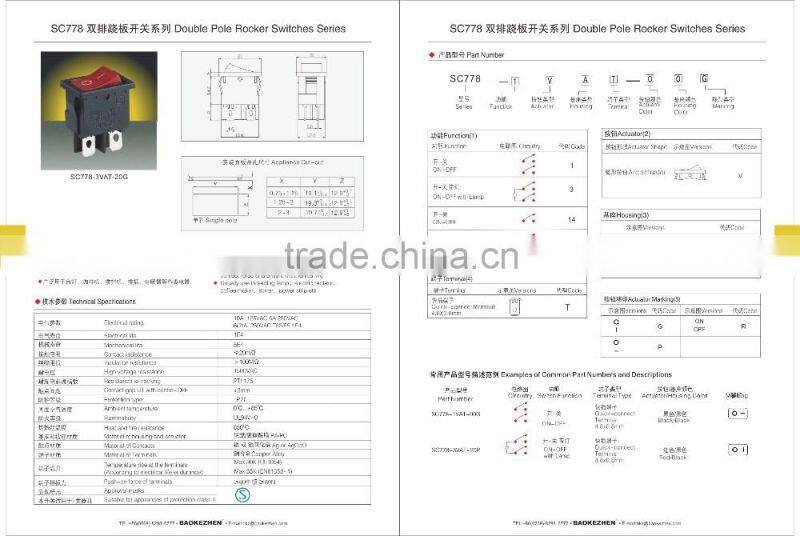

P/N	SC778 electric radiator rocker switch
Current & Voltage	6(2)A 250VAC T85/55 1E4, 10A 125VAC 6A 250VAC
Life	1E4/5E4
Materials	Housing & Button-PA /PC Terminals-copper Alloy, Contacts-Ag / AgcdO
Contact gap	less than 3mm
Contact resistance	20 mΩ or less than 20 mΩ
Insulation resistance	more than 100 mΩ
High voltage resistance	1500VAC
Resistance to tracking	PTI 175
Protection type	IP20
Ambient temperature	0℃,+85℃
Flammability	UL94V-0
Heat and fire temperature	850℃
Approvals	SEMKO
These switches are suitable for appliances of protection class II, such as reading lamp, electric radiator coffee machine, stirrer, power strip and so on. For more switches, pls refer to .
