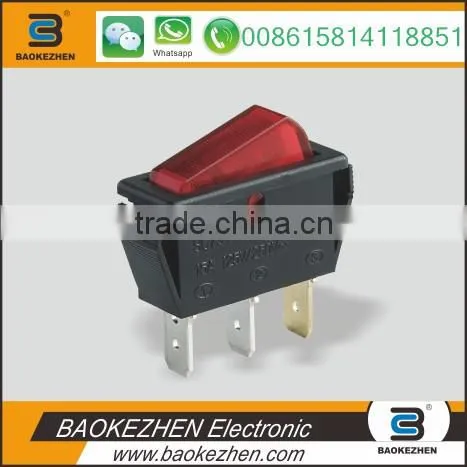

Help CenterSC791 T85 Singple Pole Rocker Switch, UL & VDE Certified
Related Products
-
SC792 T125 Single Pole Rocker Switch, 1E4/5E4, BAOKEZHEN SwitchNegotiableMOQ: 20000 Pieces -
A8 16A Single Pole Oven Rocker Switch, T125, 1E4/5E4,NegotiableMOQ: 20000 Pieces
-
SC877 Coffee Machine Rocker Switch T125 1E4/5E4, Single PoleNegotiableMOQ: 20000 Pieces
-
SC763 Power Strip Rocker Switch, UL Approved, T105 1E4/5E4, Single PoleNegotiableMOQ: 20000 Pieces
-
SC767 Double Pole Rocker Switch for Coffee Machine and Coffee Maker,t85,1E4/5E4NegotiableMOQ: 20000 Pieces

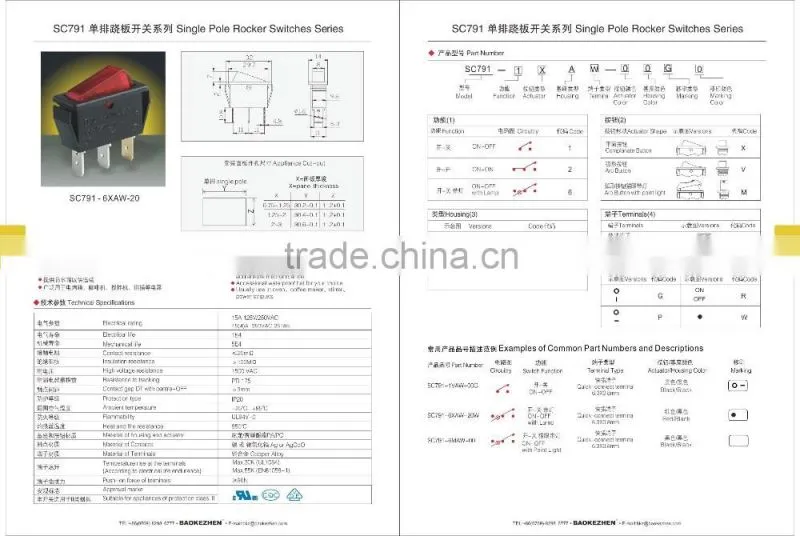

SC791 single pole rocker switch T85, T85 rocker switch 1E4, 250VAC rocker switch t85
P/N |
SC791 rocker switch t85 |
Current & Voltage |
15(4)A 250VAC 25T85 15A 125VAC/250VAC |
Life |
1E4/5E4 |
Materials |
Housing & Button-PA /PC Terminals-copper Alloy, Contacts-Ag / AgcdO |
Contact gap |
more than 3mm |
Contact resistance |
20 mΩ or less than 20 mΩ |
Insulation resistance |
more than 100 mΩ |
High voltage resistance |
1500VAC |
Resistance to tracking |
PTI 175 |
Protection type |
IP20 |
Ambient temperature |
-25℃,+85℃ |
Flammability |
UL94V-0 |
Heat and fire temperature |
850℃ |
Approvals |
UL & VDE |
|
These switches are suitable for appliances of protection class II, such as oven, coffee machine, stirrer, power strip and so on. For more switches, pls refer to . | |
BAOKEZHEN was established and started to produce switches since 1987, with 18 years manufacturing experience, we have successfully extended our switch series, such as micro switch series, single pole rocker switch series, double pole rocker switch series, push button switch series, rotarry switch series, slide switch / toggle switch series, keyboard switch / piano switch series, and so on... Meanwhile, we also extended some new industries range, such as solenoid pumps, solenoid valve, PCB controller for appliances care. So far BAOKEZHEN yearly products capacity has been up to 100million pcs.
BAOKEZHEN has the 10 years experience in export and import, so the shipment by express courier / by air / by sea / truck or FCL / LCL can be easily treated.
