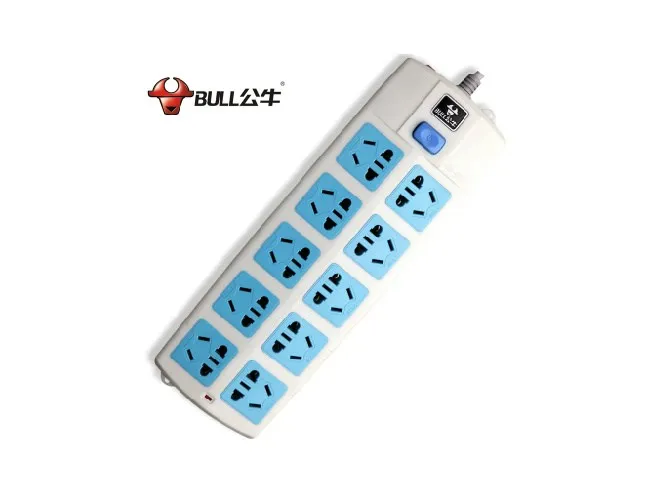

Help CenterSC760 BULL Power Strip's Rocker Switch, UL Approved.
Related Products
-
WP1-2S1 IP 65 IP67 Waterproof Micro Switch for Oven, BAOKEZHEN BrandUS$ 0.25 - 0.4MOQ: 30000 Pieces -
SC768 T105 Single Pole Multi-function Rocker Switch SeriesNegotiableMOQ: 20000 Pieces
-
WP1-2S0 IP 65 IP67 Waterproof Micro Switch for Coffee Maker, BAOKEZHEN BrandUS$ 0.25 - 0.4MOQ: 30000 Pieces
-
SC777 Round Rocker Switch for Lamps, Single Pole,BAOKEZHEN SwitchNegotiableMOQ: 20000 Pieces
-
SC778 Electric Radiator Rocker Switch, Double Pole,, BAOKEZHEN BrandNegotiableMOQ: 20000 Pieces

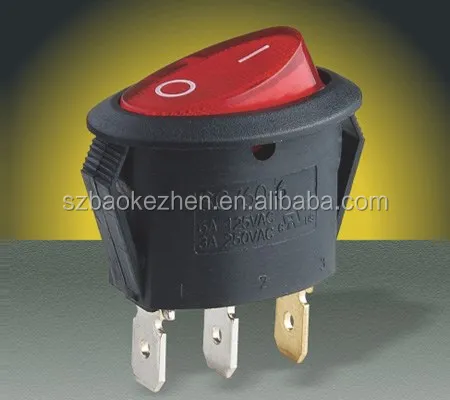

P/N SC760 power strip rocker switch
Current & Voltage 10(3)A 250VAC T90/55 1E4, 6A 125VAC 3A 250VAC
Life 1E4/5E4
Materials Housing & Button-PA /PC, Terminals-copper Alloy, Contacts-Ag / AgcdO
Contact gap 〉3mm
Contact resistance 《20 mΩ
Insulation resistance 〉100 mΩ
High voltage resistance 1500VAC
Resistance to tracking PTI 175
Protection type IP20
Ambient temperature 0℃，+90℃
Flammability UL94V-0
Heat and fire temperature 850℃

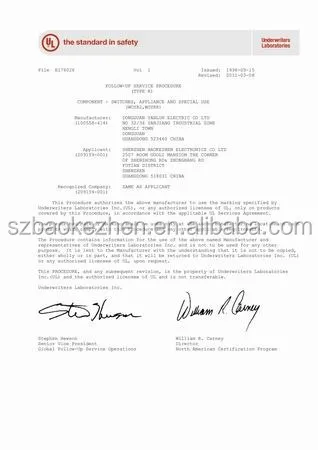

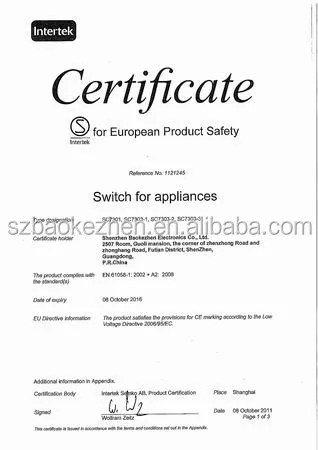

Approvals UL & SEMKO

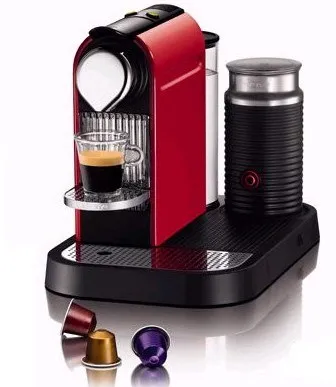

These switches are suitable for appliances of protection class II, such as reading lamp, electric radiator coffee machine, stirrer, power strip and so on.
For more switches, pls refer to .

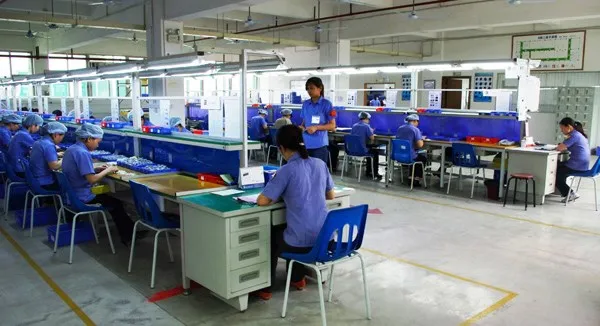

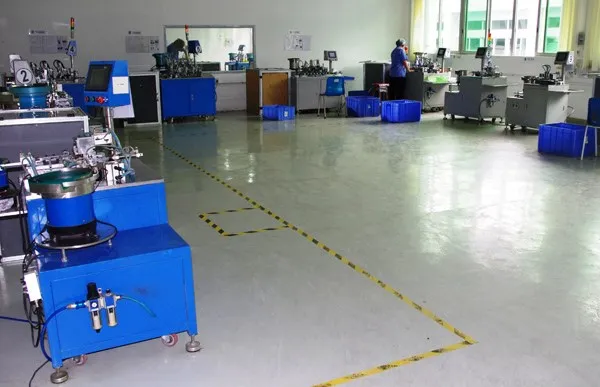

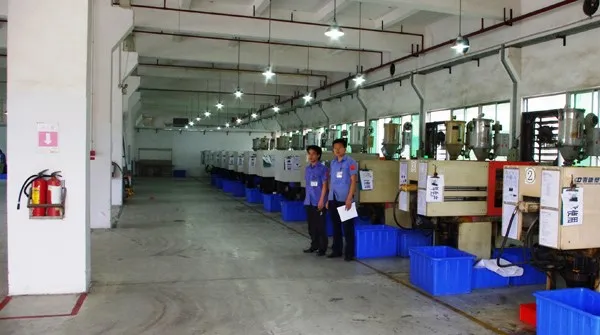

BAOKEZHEN was established and started to produce switches since 1987, with 18 years switch manufacturing experience, we have successfully extended our switch series, such as micro switch series, single pole rocker switch series, double pole rocker switch series, push button switch series, rotarry switch series, slide switch / toggle switch series, keyboard switch / piano switch series, and so on... So far BAOKEZHEN yearly capacity has been up to 100million pcs.
Packing
Standard export cartons package
Delivery
BAOKEZHEN has more than 10 years experience in export & import, so shipment by express /air /sea / Truck or FCL / LCL can be all easily treated.
-Why choose BAOKEZHEN?- we are the manufacturer, factory to market direct, save money.
-Is the switch spec fix? No, you can contact us to customize your detailed requirement. We offer solutions.
-Where can find BAOKEZHEN? - @ Alibaba / Linkedin / HKTDC Elec Fair.
