Ring Illuminated Self-locking Waterproof Push Button Switch L22(Dia.22mm) With Power Symbol

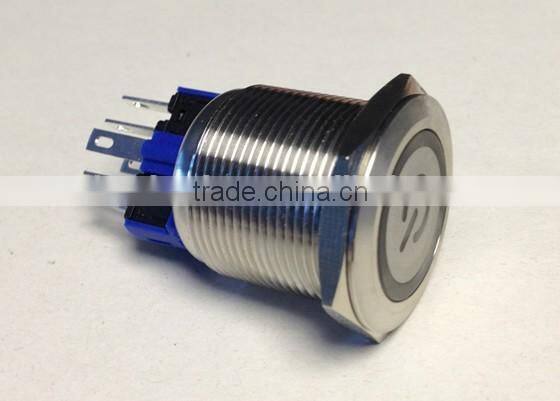

Ring Illuminated Self-locking Waterproof Push Button Switch L22(Dia.22mm) With Power Symbol photo-1

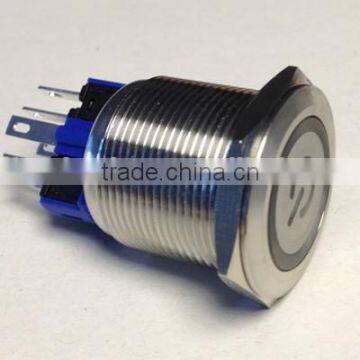

Ring Illuminated Self-locking Waterproof Push Button Switch L22(Dia.22mm) With Power Symbol photo-2
US$ 4.9 - 6.9 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
BAOKEZHEN
Model Number:
L22-2PH-6C With Power Symbol
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name BAOKEZHEN
Model Number L22-2PH-6C With Power Symbol
Protection Level IP67, IK10
Max. Current 5A
Max. Voltage 250V

Specifications

Operation type: Latching
IP Degree: IP67, IK10
LED spec.: Ring Illuminated(LED)&With Power Symbol

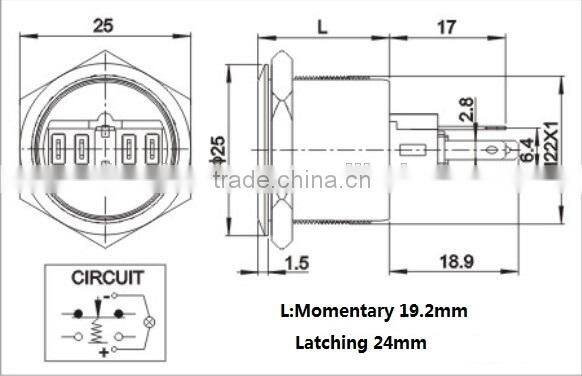

Ring Illuminated Self-locking Waterproof Push Button Switch L22(Dia.22mm) With Power Symbol

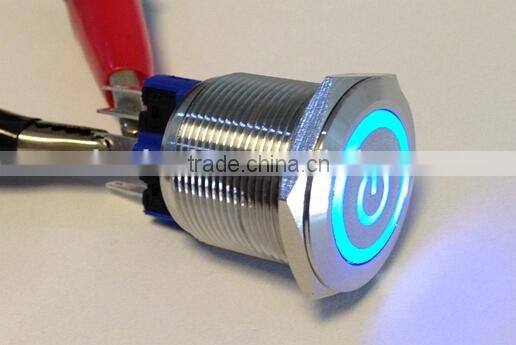

Ring Illuminated Self-locking Waterproof Push Button Switch L22(Dia.22mm) With Power Symbol



Ring Illuminated Self-locking Waterproof Push Button Switch L22(Dia.22mm) With Power Symbol



Mounting hole: Φ22mm diameter
Operation type: Latching
Contact Configuration:1NO 1NC
Front Shape: Flat Round
Terminal Type: Pin Terminals(2.8x0.5mm)
Max. Switch Rating: 5A/250V
Contact Resistance: 50mΩ
Insulation Resistance: 1000mΩ
Dielectric Strengh: 2000VAC
Operation Temp.: -20°c ~ +55°c
Mechanical Life: 500, 000cycles
Electrical Life: 50, 000cycles
Panel Thickness: 1~10mm
Torque: 5~14Nm
Operation Pressure: About 3~5N
Operation Travel: About 2.5mm
IP Degree: IP67, IK10
Contact Material: Silver Alloy
Crust Material: Stainless Steel
Button Material: Stainless Steel
Body Material: Stainless Steel
Base Material: PA66
LED spec.: Ring Illuminated(LED)&With Power Symbol
LED rated Voltage: 3V/6V/12V/24V/110V/220V
LED Color: Red,Green,Yellow,Blue,White,Oragne,Purple
LED Life: 40000 hours



We can especially make for you according to your requirement,including laser inscription,change installation dimensions,change appearance colors,change material and so on.If you have any question,pls feel free to tell me.We shall spare no efforts in endeavouring to be of service to you.Pls contact us for more information.
