Home > Products > Diesel Generator > diesel generator set 3.0kW BDE3800X/E

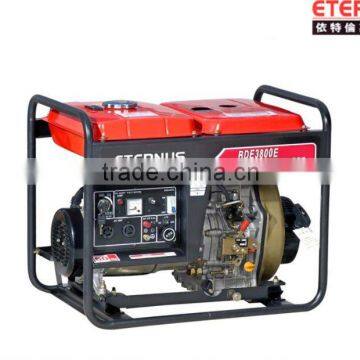

diesel generator set 3.0kW BDE3800X/E
- 50000 Set / Sets per Month
- Jiangmen port (Waihai & Gaosha port) near Guangzhou & Shenzhen
- T/T
Product Details
Place of Origin: | Guangdong, China | Brand Name: | ETERNUS | Model Number: | BDE3800X/E |
Output Type: | AC Single Phase | Speed: | 3000r/min \ 3600r/min | Frequency: | 50Hz/ 60Hz |
Rated Power: | 3.0kVA | Rated Voltage: | 230V , 120V/240V | Rated Current: | 13.0A |
Product Description
Specifications
Diesel generator set1)1 cylinder ,4-stroke ,air-cooled
2)Noise level : 72dB
3)Economical
4)Easy maintenance
Diesel generator set Model | BDE2800X/E | BDE3800X/E | BDE6800X/E/T | |||
Generator | ||||||
Rated output power (kVA) | 1.7 | 2.0 | 3.0 | 3.3 | 5.0 | 5.5 |
Rated frequency (Hz) | 50 | 60 | 50 | 60 | 50 | 60 |
Rated voltage (V) | 230 | 120/240 | 230 | 120/240 | 230 | 120/240 |
Rated current (A) | 7.4 | 8.3/16.7 | 13.0 | 14.1/28.3 | 21.7 | 22.9/45.8 |
DC output | 12V/8.3V | |||||
Power factor (cosΦ) | 1.0 | |||||
Phase | Single | |||||
Coupling mode | Direct coupled to the engine | |||||
Noise level [ dB (A)@7m] | X/E: 72 , T: 69 | |||||
Fuel capacity (L) | X/E: 12.5 , T:15 | |||||
Fuel | 0 # (summer),-10# (winter) light diesel oil | |||||
Lube | SAE10W30(above CC grade) | |||||
Low oil pressure alert system | Yes | |||||
Engine | ||||||
Model | BD170FG | BD178FG | BD186FAG | |||
Type | 1 cylinder ,4-stroke ,air-cooled, direct injection, diesel engine | |||||
Rated rotation speed(r/min) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 |
Rated power [kW (HP) /rpm] | 2.5(3.4) | 2.8(3.8) | 3.7 (5.03) | 4.0 (5.44) | 5.9 (8.02) | 6.5 (8.85) |
Displacement [ml (cu.in)] | 211 (12.88) | 308 (18.79) | 418 (25.51) | |||
Compression ratio | 20:1 | 19:1 | ||||
Structure | ||||||
Structure type | X/E:Open-frame type , T: Silent type | |||||
Dimension (L x W x H) mm | X/E:660x510x570
| X/E:685x510x555
| X/E:740x500x660 T:965x570x750 | |||
Starting system | X:Recoil E/T: Electric | |||||
Net weight (kg) | X/E:54 | X/E:64 | X/E:98 T:165 |
