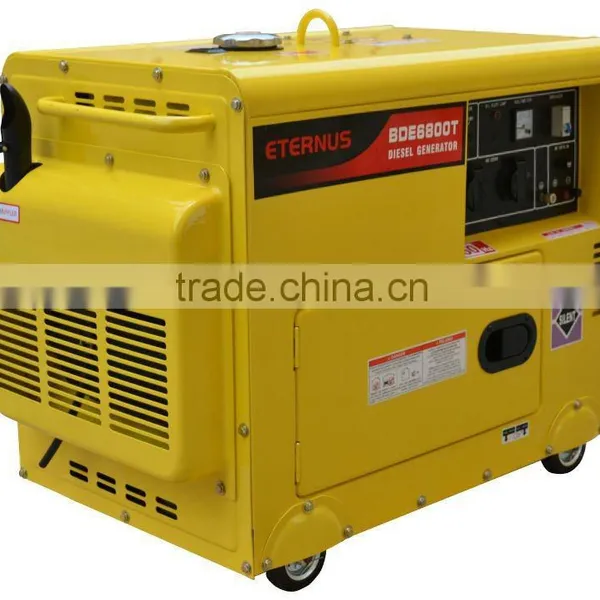

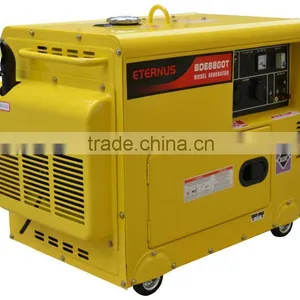

Silent Diesel Generator(BDE6800T)

Name: Silent Diesel Generator(BDE6800T)
Brand: ETERNUS
SKU: 118121985

Negotiable MOQ: 5 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ETERNUS

Model Number:

BDE6800T

Jiangmen Baodeli Mechanical Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Jiangmen port (Waihai & Gaosha port) near Guangzhou & Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ETERNUS

Model Number BDE6800T

Output Type AC Single Phase

Speed 3000r/min \ 3600r/min

Frequency 50Hz/ 60Hz

Rated Power 5.0kW

Rated Voltage 230V , 120V/240V

Rated Current 21.7A

Diesel generator Model	BDE2800X/E		BDE3800X/E/		BDE6800X/E/T
Generator
Rated output power (kVA)	1.7	2.0	3.0	3.3	5.0	5.5
Rated frequency (Hz)	50	60	50	60	50	60
Rated voltage (V)	230	120/240	230	120/240	230	120/240
Rated current (A)	7.4	8.3/16.7	13.0	14.1/28.3	21.7	22.9/45.8
DC output	12V/8.3V
Power factor (cosΦ)	1.0
Phase	Single
Coupling mode	Direct coupled to the engine
Noise level [ dB (A)@7m]	X/E: 72 , T: 69
Fuel capacity (L)	X/E: 12.5 , T:15
Fuel	0 # (summer),-10# (winter) light diesel oil
Lube	SAE10W30(above CC grade)
Low oil pressure alert system	Yes
Engine
Model	BD170FG		BD178FG		BD188FAG
Type	1 cylinder ,4-stroke ,air-cooled, direct injection, diesel engine
Rated rotation speed(r/min)	3000	3600	3000	3600	3000	3600
Rated power [kW (HP) /rpm]	2.5(3.4)	2.8(3.8)	3.7 (5.03)	4.0 (5.44)	5.9 (8.02)	6.5 (8.85)
Displacement [ml (cu.in)]	211 (12.88)		308 (18.79)		418 (25.51)
Compression ratio	20:1				19:1
Structure
Structure type	X/E:Open-frame type , T: Silent type
Dimension (L x W x H) mm	X/E:660x510x570		X/E:685x510x555		X/E:740x500x660 T:965x570x750
Starting system	X:Recoil E/T: Electric
Net weight (kg)	X/E:54		X/E:64		X/E:98 T:165
