Automatic Stainless Steel Wire Mesh Knitting Machine Manufacturer
1. Ideas for design of Automatic Stainless Steel Wire Mesh Knitting Machine Manufacturer
Our machine is made for knitting Gas Liquid Filter Mesh.
•Full automatic
•Cost-efficient
•Small occupied area
•Easy-operation
Our Video Link for your reference:
/watch?v=MHle3BDozXg
2. Application for Automatic Stainless Steel Wire Mesh Knitting Machine Manufacturer
The mesh which is made by our machine ,is widely used for oil,chemical,oil refining,Light Industry,medicine,metallurgy and so on.Its main function is eliminating droplet and liquid foam ,also for air filtration.
3.Applicable scope of Automatic Stainless Steel Wire Mesh Knitting Machine Manufacturer
Material |
Stainless Steel Wire (SUS 304,SUS 316,SUS 316L) Red Cooper Wire Phosphor Copper Wire Ni Wire Tinned copper wire |
Wire Diameter Range |
0.08mm-0.35mm |
Mesh Size |
5-50 |
Weaving Wide |
3mm-1500mm |
The mesh size also can be designed according to your request | |
4.Parameter of Automatic Stainless Steel Wire Mesh Knitting Machine Manufacturer
Model No. |
GE9710 |
|
Diameter of Knitting Cylinder |
0.5”-45” |
|
Needles |
4-560 |
|
Grade |
E2-E8 |
|
Speed of Knitting Cylinder |
80 times/min |
|
Motor Power |
main machine |
0.37KW-2.5KW |
rolling machine |
60KW-150KW |
|
Frequency converter |
main machine |
0-750 times /min |
rolling machine |
0-75 times/min |
|
Produce Capacity |
15m-30m/hour |
|
Outside Size (LxWxH) |
650 mm x 750 mm x1580 mm |
|
Weight |
110 kg/set |
|
5.Characteristic of Automatic Stainless Steel Wire Mesh Knitting Machine Manufacturer
1)The knitting mesh is U-shape, flat and smooth,good elasticity.
2)Wire feeding path can be single to nine.The produce capacity of double feeding is twice than single feeding’s.
3)Our machine has PLC control system,it can adjust working speed automatically.
4)Our machine can stop automatically when the wire or needle is broken .
6.Pictures for your reference:

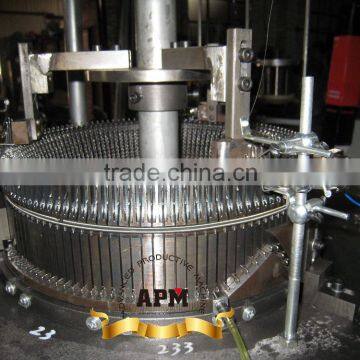

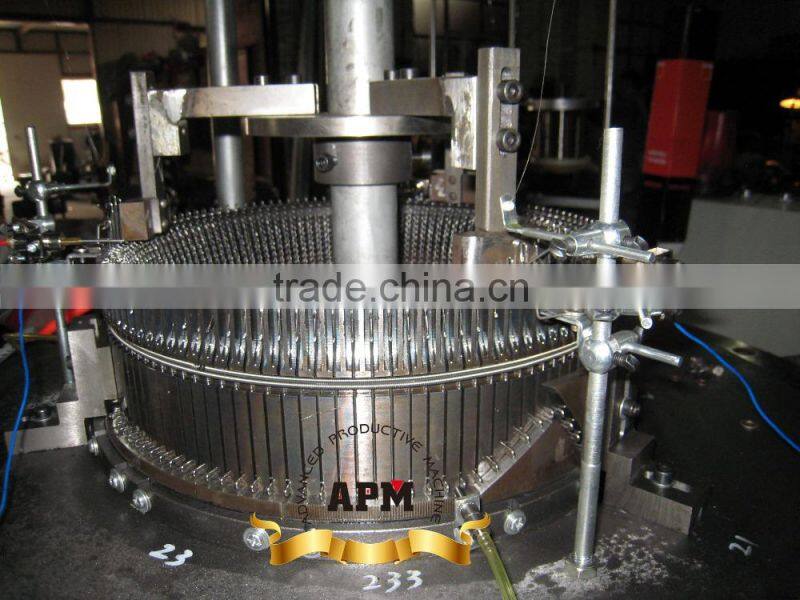

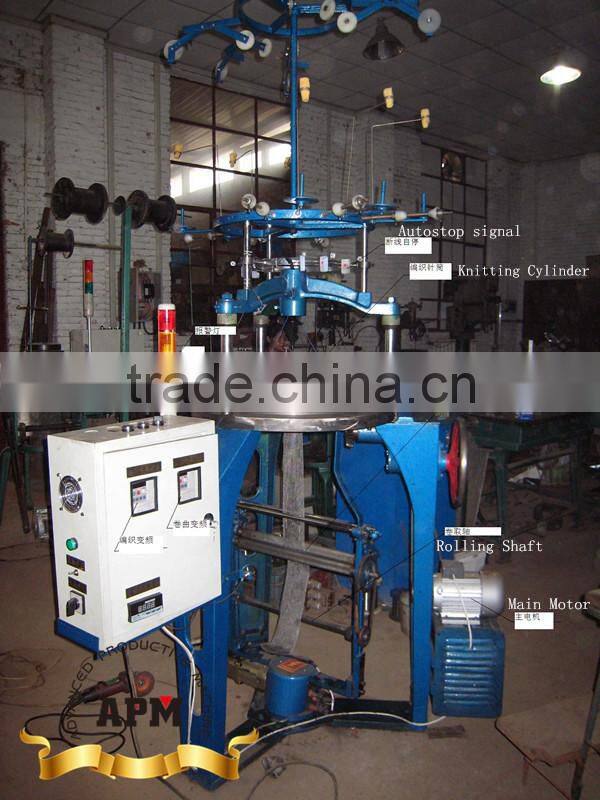

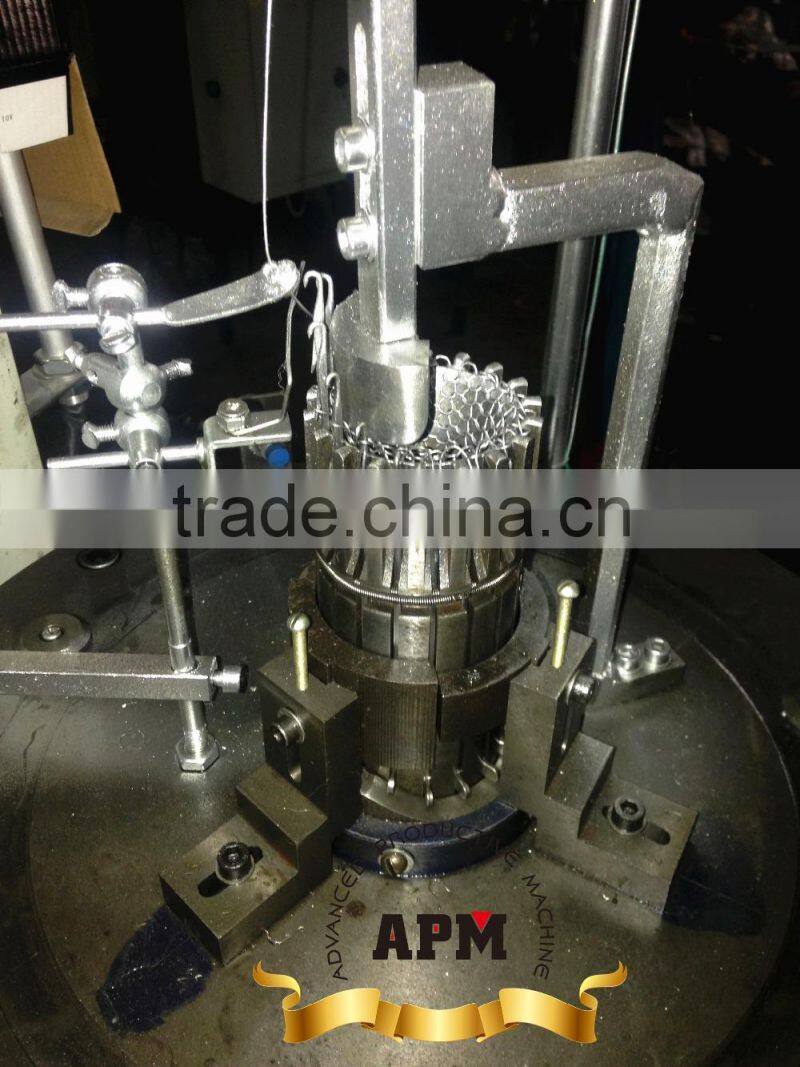

1)Main Machine

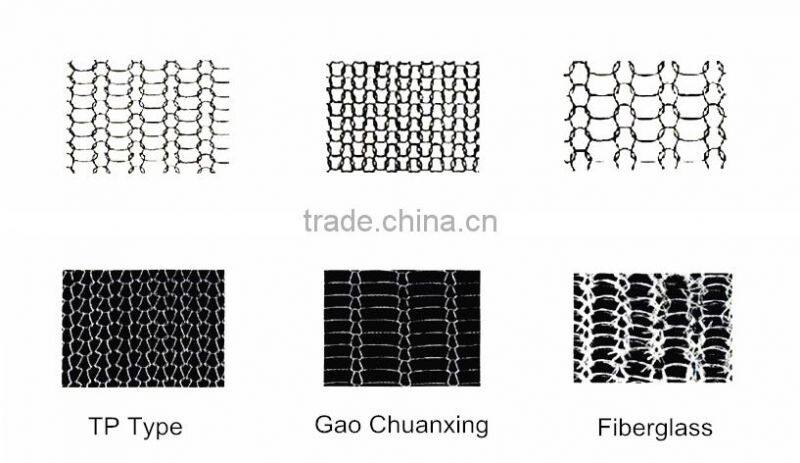

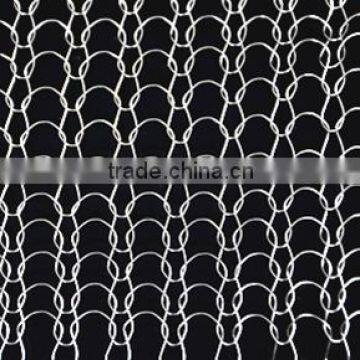

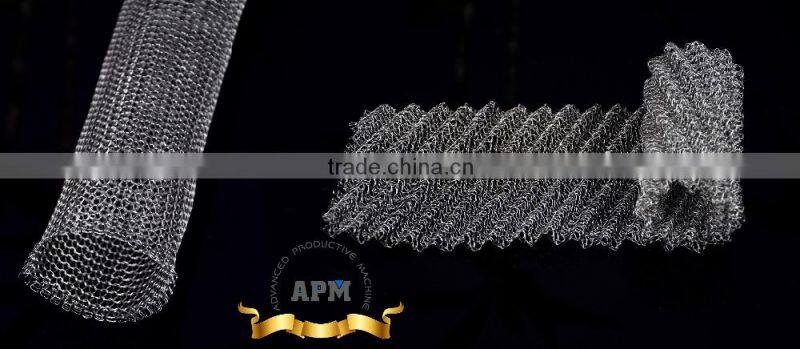

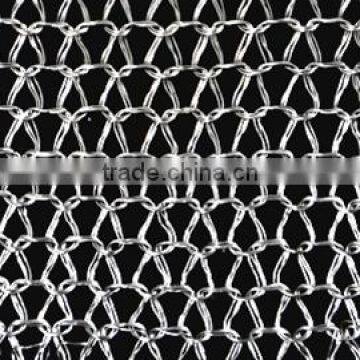

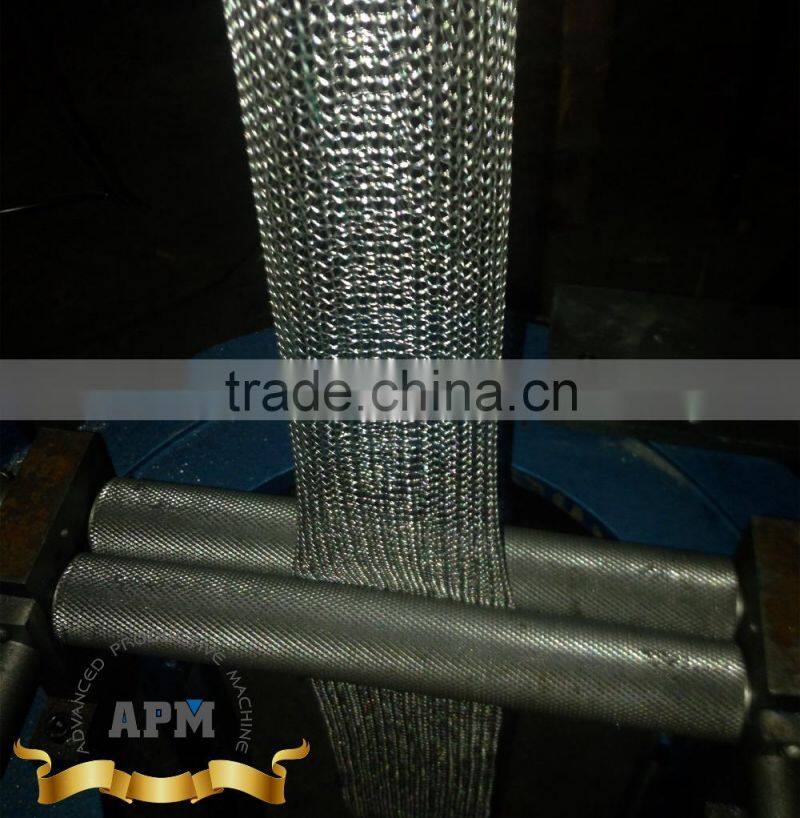

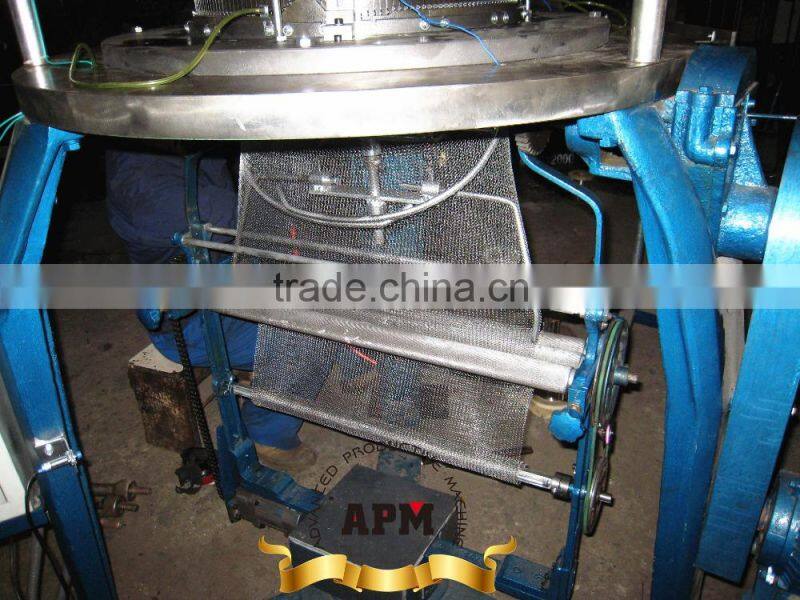

2)Finished Knitted Wire Mesh

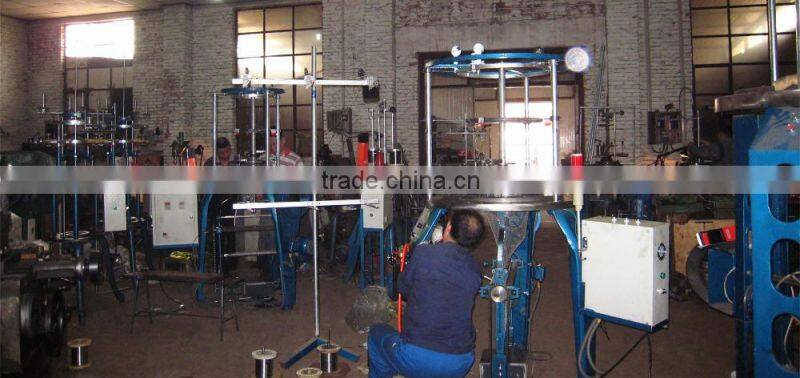

3)Our factory of Automatic Stainless Steel Wire Mesh Knitting Machine Manufacturer
