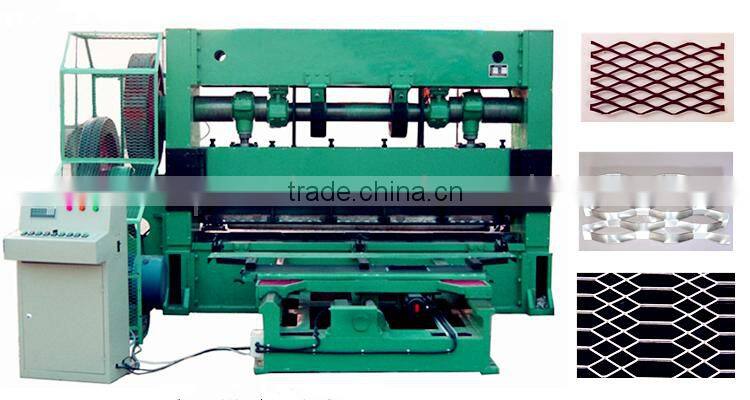

Expanded Metal Mesh Machine and Perforated Sheet Machine
High quality,High precision,Best price
1)This series of machine tool are used to expand cold-roll steel sheets
2)This machine can do all kinds of expanded meshwhich used in construction,Daily Hardware,
Window ornament,machine shield & electronic product.
3)The feeding principle is that the main machine can run exactly and stably through the direct transfer by gear wheel,ratchet wheel and cam wheel.
4)The machine adopts the four-axis feed and turbine box drive feed.
5)The feeding is that the feed shaft drives the longitudinal feeding by the four bevel gear, eccentric wheel,draw bar, worm and ratchet. Meanwhile, To promote the swinging cutter to act to left and right through the cam
6)Auxiliary part is used to lift the raw material sheet which is consists of several roller and tripod(design data can be offered by us,customers can make it themselves.)
| Model | APM-6.3 | APM-10 | APM-16 | APM-25 | APM-63 | APM-100 | APM-160 | |
| Nominal pressure(kN) | 63 | 100 | 160 | 250 | 630 | 1000 | 1600 | |
| Material dept(mm) | ≤0.7 | ≤1.0 | ≤1.2 | ≤1.5 | ≤2.5 | ≤4.0 | ≤8.0 | |
| Material width(mm) | ≤500 | ≤750 | ≤1000 | ≤1250 | ≤2000 | ≤2000 | ≤2000 | |
| Slider times(/min) | 210/250 | 210/250 | 150 | 150 | 70 | 60 | 45 | |
| Slider distance(mm) | 40 | 40 | 40 | 40 | --- | --- | --- | |
| Connecting rod adjust distance(mm) | 50 | 50 | 50 | 50 | --- | --- | --- | |
| Every time the longitudinal feeding distance(mm) | 0-1.0 | 0-1.0 | 0-1.0 | 0-1.0 | 0-4.0 | 0-4.0 | 0-7.0 | |
| LWD(mm) | 0-20 | 0-20 | 0-25 | 0-30 | 0-100 | 0-150 | 0-160 | |
| Outsize of machine | Length(mm) | 1150 | 1300 | 1800 | 2010 | 2400 | 3600 | 3000 |
| Width(mm) | 710 | 950 | 1400 | 1600 | 3500 | 2500 | 3200 | |
| Height(mm) | 1450 | 1450 | 1870 | 1940 | 2300 | 3000 | 4110 | |
| Weight(TON) | 0.95 | 1.2 | 2.5 | 3 | 11 | 12 | 21 | |
| Motor power(kw) | 2.2 | 3 | 3 | 4 | 11 | 18 | 30 | |
| Mark |
1. Material:Cold-rolled steel plate 2. It could adjust the longitudinal feeding disrtance in accordance with the request every time. |
|||||||
APM-160 expanded metal machineis a heavy-duty punching machine, can be washed the system ≤
6 mm thick steel net 2 meters wide. Kind of expanded metal mesh is mainly used in shipbuilding,
mining,machinery, construction, transportation, oil, urban construction, protective wait until the field.

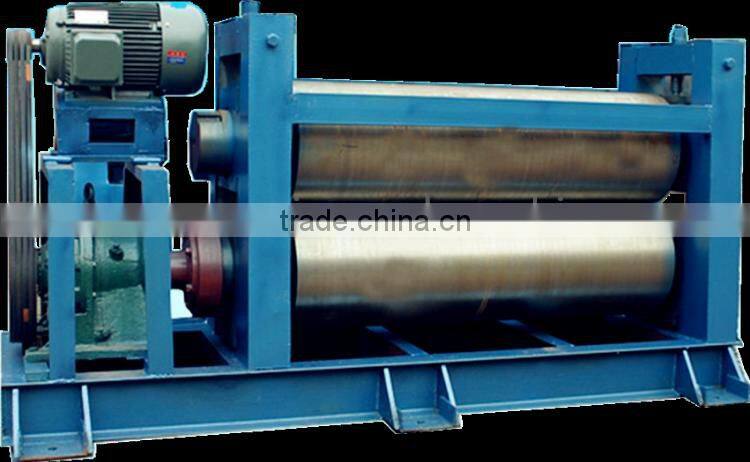

Flatten Machine:
Pressing machine is used to flatten steel net, so that the surface is flat, not only flatten steel net surface is
smooth and no glitches, there will be a certain percentage of the growth in the length of the steel net.

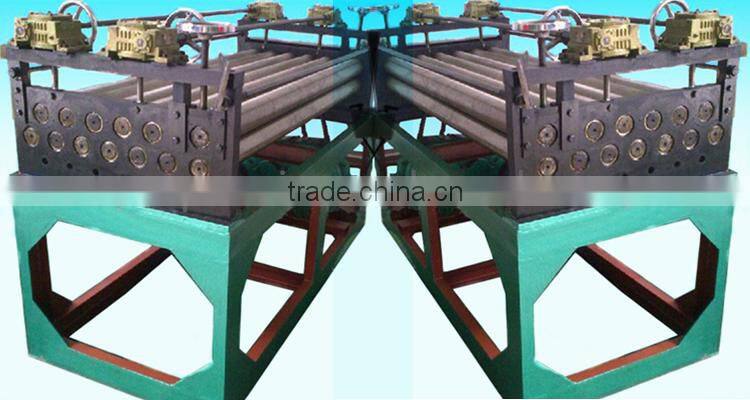

Sheet Flattening Machine:
Sheet flatting machine: The expanded mesh will have acertain degree of bending out from the metal mesh
machine, based on customer demand, we may be configured for the customers leveler the curvature leveling
If you want to learn more,pls view the video,the link:
/watch?v=WCwif1jtjxE
Q1. Are you trading company or manufacturer ?
A: We are manufacturer
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3.How to learn the operation of your machine?
A: 1) We can send our engineer to your factory for training
2) You can send your machine operator to our factory
3) We can send you a video for learning
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 40 days after receiving your advance payment. The specific delivery time
depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
|
|
|

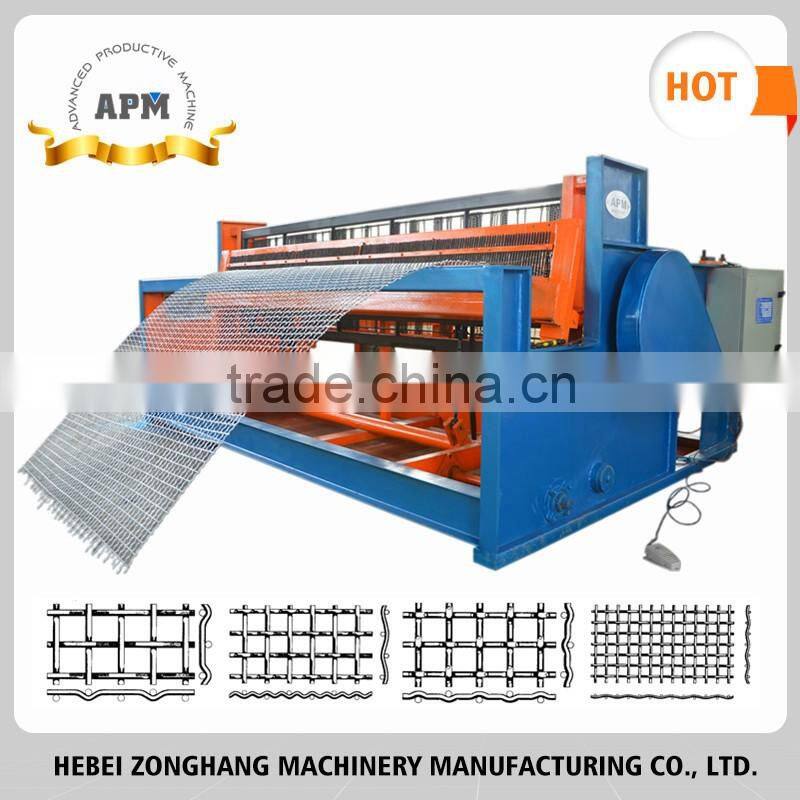

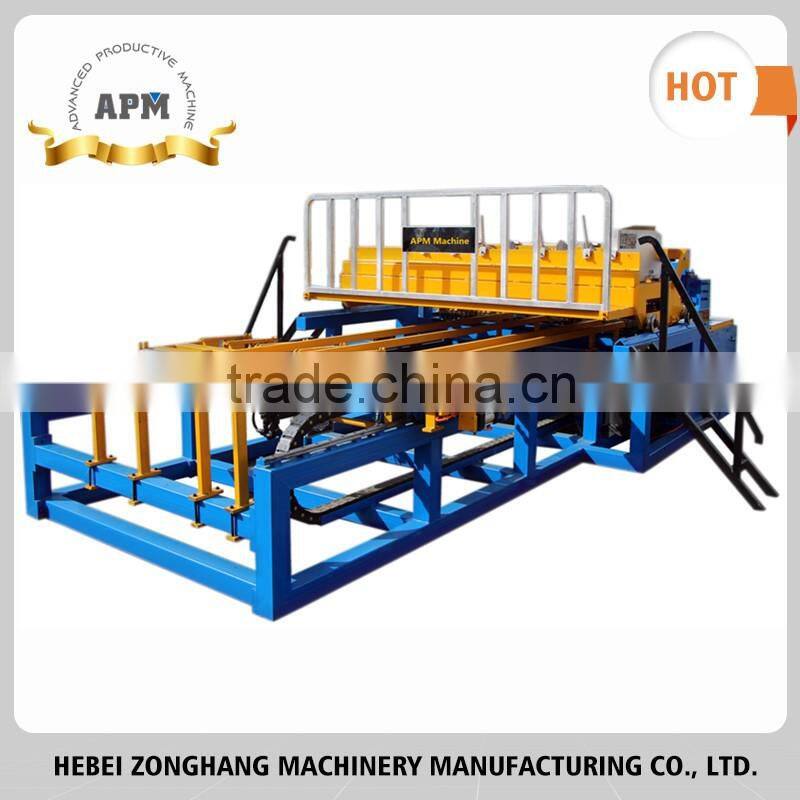

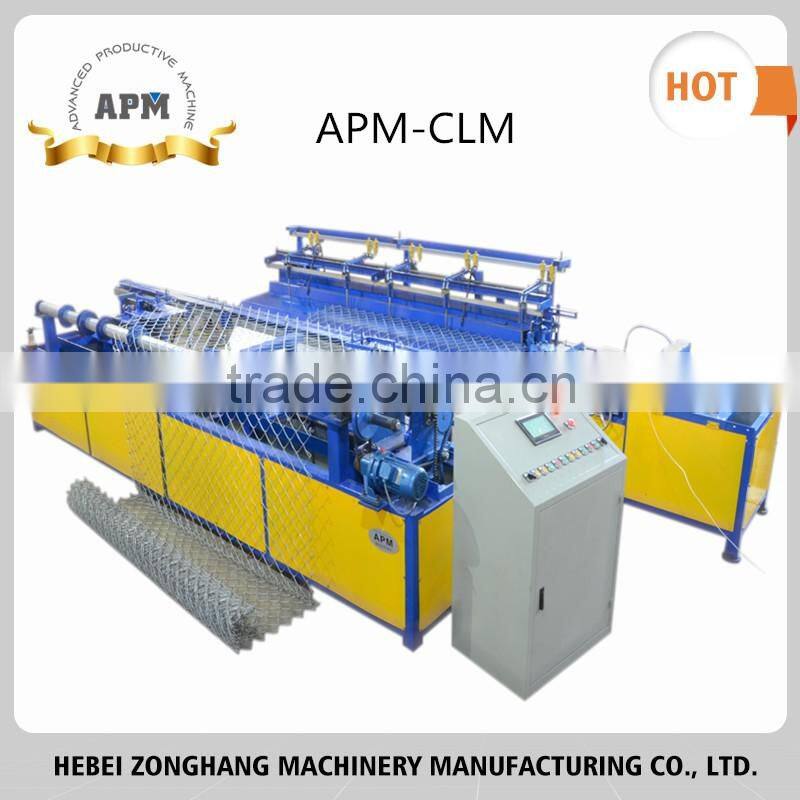

| The machine can produce welded mesh ,welded wire mesh,building mesh,steel mesh reinforcement etc. | The machine can produce chain link fence mesh,diamond mesh,chain link fence panel etc. | The machine can produce mine screen mesh,crimped wire weaving mesh etc. |
