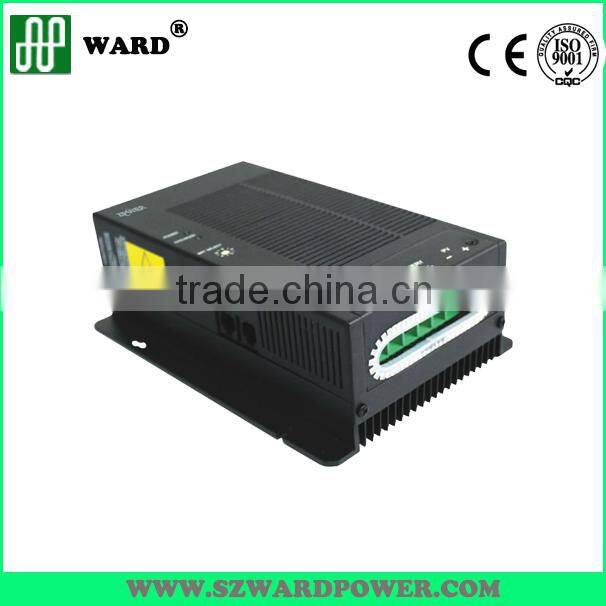

48v Mppt Charge Controller Protection Class IP21

FOB Price

US$ 40 - 160 / Set

1 Set(Min. Order)

Port Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	WARD, WARD
Model Number	SLSeries	Application	Other, Solar System Controller, Solar Charge Controller
Rated Voltage	Other, 12V/24V, 12V/24V	Maximum Current	55VDC, 55VDC

Product Description

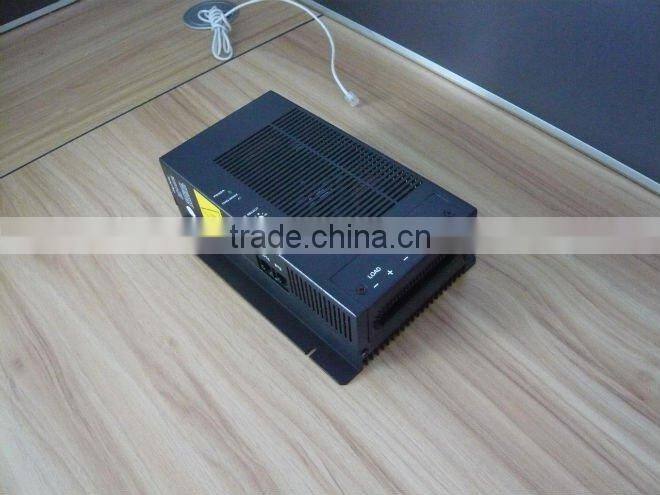

48v mppt charge controller Protection class IP21

Product Description

Applicatons:

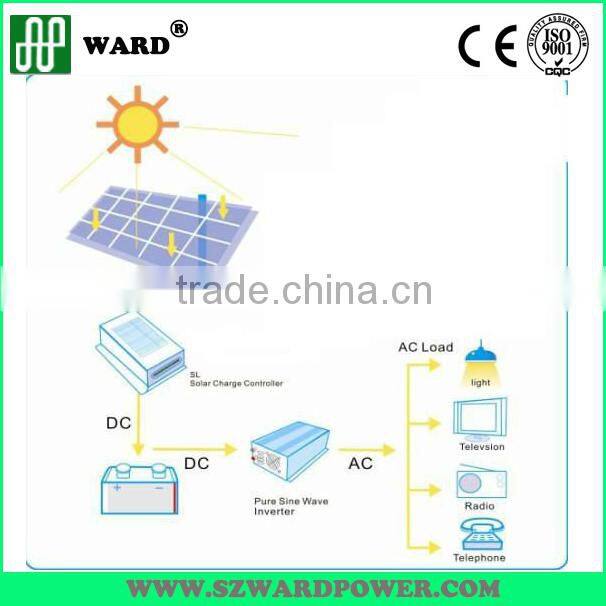

Solar charge controller mainly used for solar power station, home solar power system,solar street light control system,mobile solar system, DC wind solar generating systems.

Introduction of Function

*Adopt advanced MCU microprocessor control technology.

*12V/24V/48V self detect to choose output voltage.

*Advanced MPPT Technology, High converting efficiency higher than 97% for minimizing energy loss.

*Capable to parallel in output, to expand capacity easily.

*Reversed current protection at night, over voltage and reverse polarity protection.

*Capable of selecting different charging mode for various types of batteries

Capable of connecting additional DC load for wider applications

*Three stage charge control system (bulk, absorption, and float mode) with optional temperature compensation

*LED indicators display charge status in real time, Optional LCD digital display.

*Pulse Width Modulation (PWM) technology combined with a multi-stage charge control algorithm leads to superior charging and enhanced battery performance.

Specification:

MPPT solar charger controller	SL-40A/60A
Rated Voltage	12/24/48Vdc auto-detection
Rated charge current (include load current)	40Amp/60Amp
Load current	15Amp
Input voltage range	15-55Vdc
Max. PV open circuit array voltage	55Vdc
Overload protection (DC load)	2.0 * Inom>5s
	1.5 * Inom >20s
	1.25 * Inom temperature controlled
Typical idle consumption	At idle < 10mA
Bulk charge	14.6Vdc (default)	29.2Vdc (default)
Floating charge	13.4Vdc (default)	26.8Vdc (default)
Equalization charge	14.0Vdc (default)	28.0Vdc (default)
Over charge disconnection	14.8Vdc	29.6Vdc
Over charge recovery	14Vdc	28Vdc
Over discharge disconnection	10.8Vdc (default)	21.6Vdc (default)
Over discharge reconnection	12.3Vdc	24.6Vdc
Temperature compensation	-13.2mV/°C	-26.4mV/°C
Lead acid battery settings	Adjustable
NiCad battery settings	Adjustable
Load control mode	1. Low Voltage Reconnect (LVR): Automatic
	2. Low Voltage Disconnect (LVD): Automatic
	3. Reconnection: warning flash before disconnect and reconnection
Low voltage reconnect	12.0-14.0Vdc	24.0-28.0Vdc
Low voltage disconnect	10.5-12.5Vdc	21.0-25.0Vdc
Ambient temperature	0-40°C (full load) 40-60°C (de-rating)
Altitude	Operating 5000 m, Non-Operating 16000 m
Protection class	IP21
Cooling	natural cooling
Terminal size (fine/single wire)	#8 AWG
Dimension(LWH)	19214066mm

Plugs

Our Services

1. Respond as Soon as Possible

2. Keep Clients Updated

3. Go the Extra Mile

4. Fix Your Mistakes

5.24 hours online

6. Keep Promises

7. Don’t Confuse Clients with Jargon

8. Be Patient

9. Know Everything we Need to Know

FAQ

Q1. What's the payment term?

A. We accept TT, 30% deposit and 70% balance before shipping and Western Union.

Q2. How's the delivery time ?

A. Usually it will take about 15~20 days for production

Q3. Tell me the standard package?

A. For the small capacity, it uses carton, but for big capacity, we should use strong wooden case for protection.

Q4. What kind of material of transformer?

A.We have two types, one 100% copper and the other is copper with aluminum.It depends on your requirment. In fact, those two have little difference. Copper is better and also price higher.

Q5. Would you accept our logo ?

A.If you have reached the minimum quantity, absolutely no problem to do OEM.

Q6. We want to know your monthly capacity.

A. It varies with product models. For example, monthly capacity can reach near 20000pcs for small capacity and big capacity near 3000pcs.

Q7. Where is your market?

A. Our products are popular in Nigeria, Egypt, Russia, indonesia, Philippines, Italy, America, Pakistan and so on. Hope you can join us and make mutural benifits through our cooperation.

Q8. Does the inverter connect with solar system ?

A. Yes. The unique feature combines inverter, charger and AC auto-transfer switch into one complete system, making the inverter not only connects with solar system, also can be used in office equipment, household items, power tools and etc..

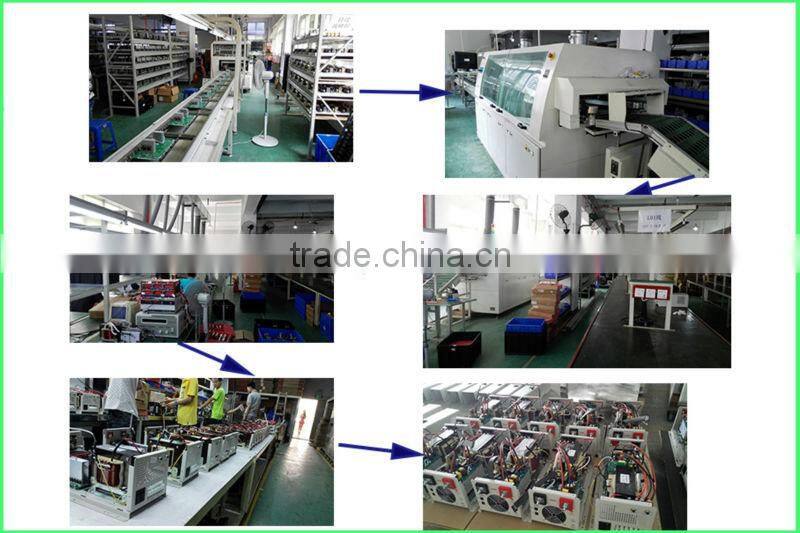

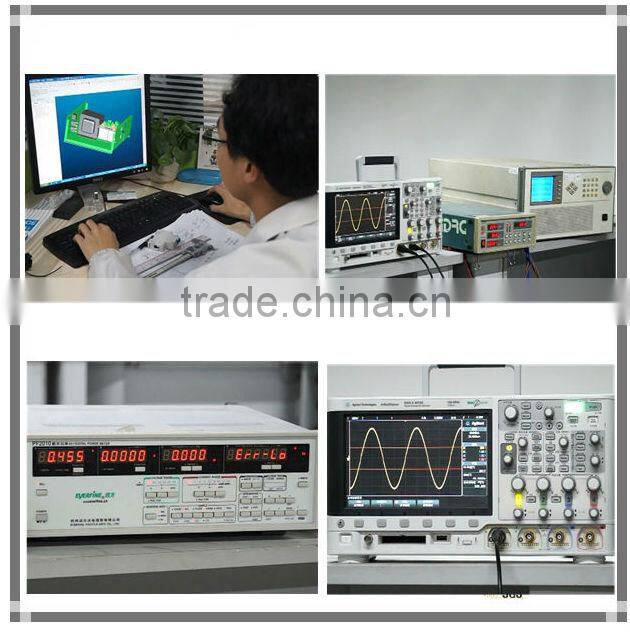

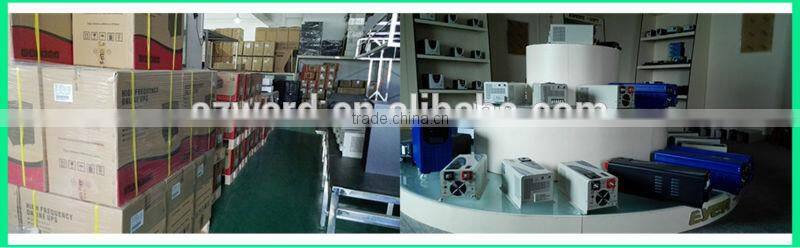

Factory Show

Packaging & Shipping

Packaging Detail: Standard Export carton or wooden package. The Safest Transportation Package

Delivery Detail: 15~20 days for Routine machine, once received deposit, 20~25days for Specified requests, once received deposit. It will be varied according to actual order quantity.
