Home > Consumer Electronics > Water Heater & Components > Gas Water Heater > Wall Mounted Installation and Instant Gas Water Heater/wall Hung Gas Boiler Manufacturer

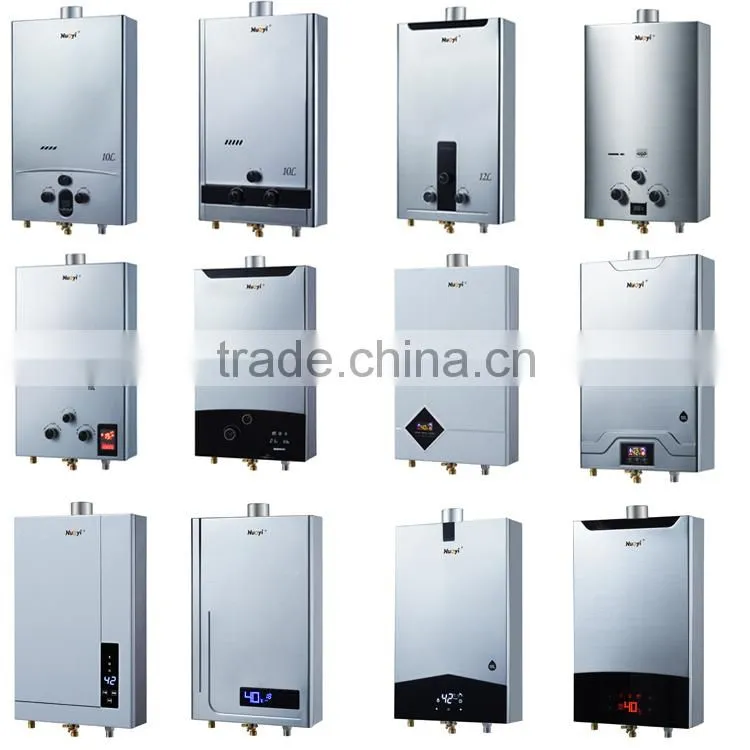

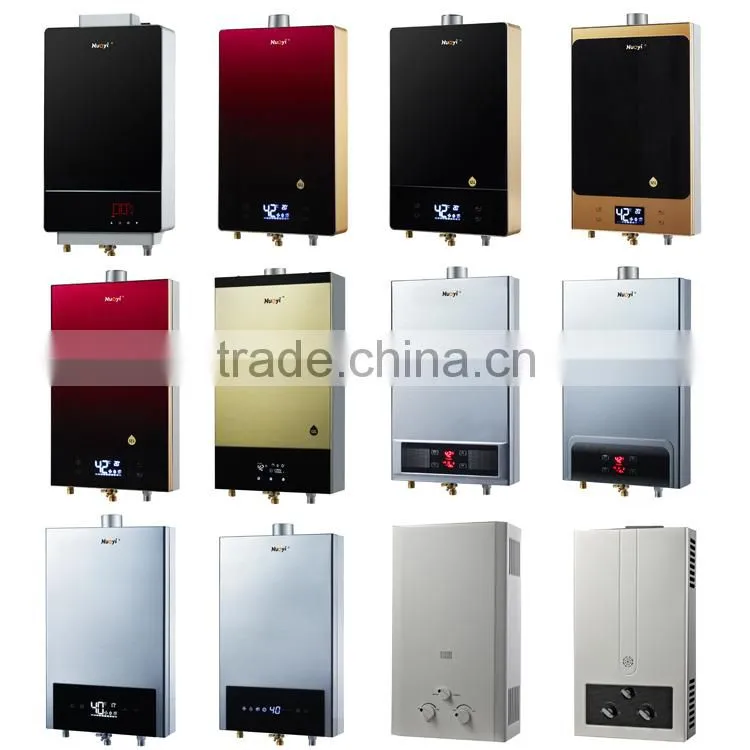

Wall Mounted Installation and Instant Gas Water Heater/wall Hung Gas Boiler Manufacturer

Name: Wall Mounted Installation and Instant Gas Water Heater/wall Hung Gas Boiler Manufacturer
Brand: NUOYI
SKU: 118090455
Availability: InStock

Wall Mounted Installation and Instant Gas Water Heater/wall Hung Gas Boiler Manufacturer thumbnail-1

Wall Mounted Installation and Instant Gas Water Heater/wall Hung Gas Boiler Manufacturer photo-1

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Storage / Tankless:

Instant / Tankless

Installation:

Wall Mounted

Housing Material:

Stainless Steel

Contact Supplier Request Quote Chat Now

Zhongshan Nuoyi Electric Appliances Co., Ltd.(Prowally)

Payment & Shipping

Payment Methods:

Port of Shipment:

XIAOLAN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Storage / Tankless Instant / Tankless

Installation Wall Mounted

Housing Material Stainless Steel

Power (W) 20000

Voltage (V) 220

Place of Origin Guangdong, China

Brand Name NUOYI

Model Number NY-JSQH13

Product Description

Good Quality Gas water heater

Product Specifications :

Panel	Stainless steel/ Spray powder coating
Housing material:	Spray powder coating
Capacity (L):	6/7/8/10/12/16/20
Heat input (KW):	12/14/16/20/24/32/40
Gas type & rated gas pressure (pa):	LPG (2800)/NG (2000)
LCD display	available
Water Pressure	Min.0.01MPa.Max.0.5MPa
Heating time	≤10seconds
Stability time	≤10seconds

Feature:

1. Low pressure start gas water heater

2. Can keep constant water temprature

3. Flameout protection

4. Auto-cut-off protection: numerical control automatic ignition, the auto-cut-off protection will shut off gas supply immediately once flameout accidentally, and no gas leakage.

5. Water-controlled automatic ignition: the water-controlled automatic ignition is applied for the unit, double-ignition device with high rate, the flame is sensed by ion, this sensitive control can be achieved, and easy and convenient to operate.

6. Anti-dry combustion protection: once dry combustion occurs, the protection device will shut off gas supply automatically.

7. Over-pressure protection: once water pressure is over than 1.0Mpa, the unit heater will relieve the pressure automatically to avoid damage.

8. Low water pressure startup function: when water pressure is less than 0.025Mpa, the water heater can also startup, it is suitable to the user who living in high floor or lower water pressure.

9. Anti-freezing protection: when temperature is very low, remove the water discharge valve to discharge cumulative water inside pipe to avoid the damage caused by freezing.

10. Energy saving: advanced combustion system with the Winter/summer switch, the water temperature can be adjusted in the maximum range, save about 20% of energy

Packaging & Shipping

Packaging & Shipping ,Trade Terms:

Packaging

Capacity	Weight		Product Size & Meas		Container Loading 20GP/40GP/40HQ
Capacity	N.W(kg)	G.W.(kg)	Size(mm)	Meas(mm)	Container Loading 20GP/40GP/40HQ
6L	8	10	440 x 280 x 120	520x 320 x 165	1050 / 1960/ 2470
7L	6.2	7.8	490 x 310 x 120	580 x 350 x 165	840 / 1620 /2030
8L	8.5	10	520 x 320 x 140	610 x 360 x 180	710 / 1360 / 1720
10L	9.5	10.9	590 x 320x 140	680x 360 x 185	620 / 1200 / 1500
10L	10.3	11.0	590 x330 x185	705 x390 x230	450/860/1080
12L	13.2	15.5	620x 330 x 185	740 x 390 x 235	412/ 796/ 1002

Shipping

1. DHL//TNT for samples, payment on delivery and Payment in advance opptional

2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving.

3. Customers specifying freight forwarders or negotiable shipping methods.

4. Delivery Time: 10 days for samples; 25-30 days for batch goods.

Payment Terms

*30% As Deposit, The 70% Will Be Paid Before Loading

*30% As Deposit, L/C In Sight for Balance.

MOQ : 100 Pcs For Each Model.

Quanlity Warranty 1 Years

Our Services

Why Choose us?

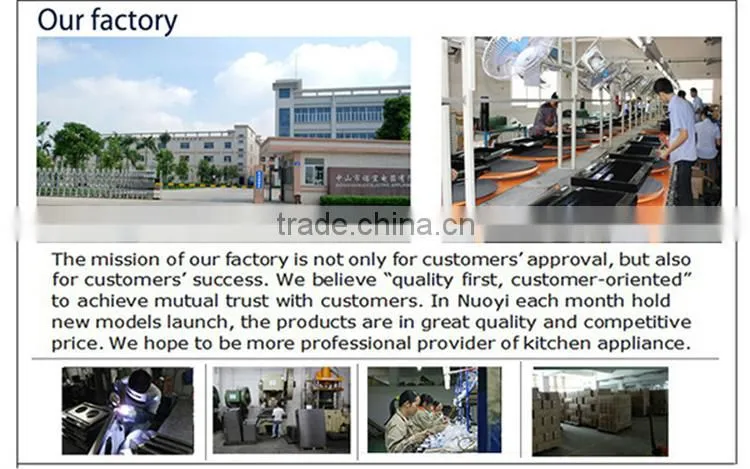

Our factory's advantages:

1. We are Alibaba Assessed 4 years Gold Supplier , We developed the core components and Control every process into lowest cost and highest quality as customer’s require.

(1) Best production capability

(2)Best quality control

(3) Best Service

2.Patent design from the national Patent Office

3.100% QC inspection Before Shippment:

(1)Raw Material QC team

(2)Sample QC team

(3)Mass production QC team

4.CE/CB/SASO Cetificate,competitve price

5,our R&D terms keep up with the state of art technology,each month hold new models launch.

6,customize the packing box and other things as your require

7,Professional service:We have professional business sales at your service within 24 hours.
