Home > Products > GSM Antenna > GSM 806-960MHZ 13DBI 9elements Outdoor Digital TV Yagi Antenna With 3M Cable

GSM 806-960MHZ 13DBI 9elements Outdoor Digital TV Yagi Antenna With 3M Cable

FOB Price

US$ 6.5 - 9.8 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	XYT
Model Number	XYTY-15

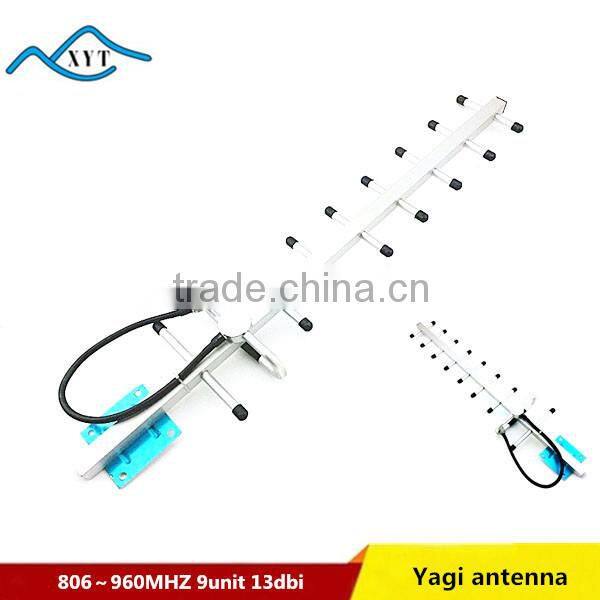

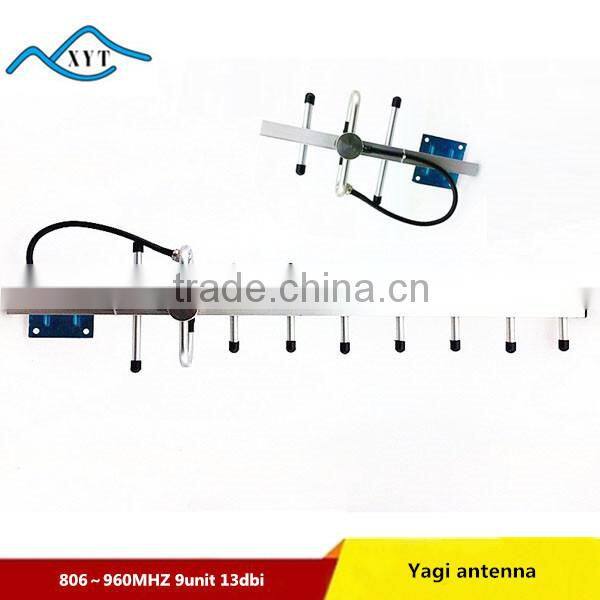

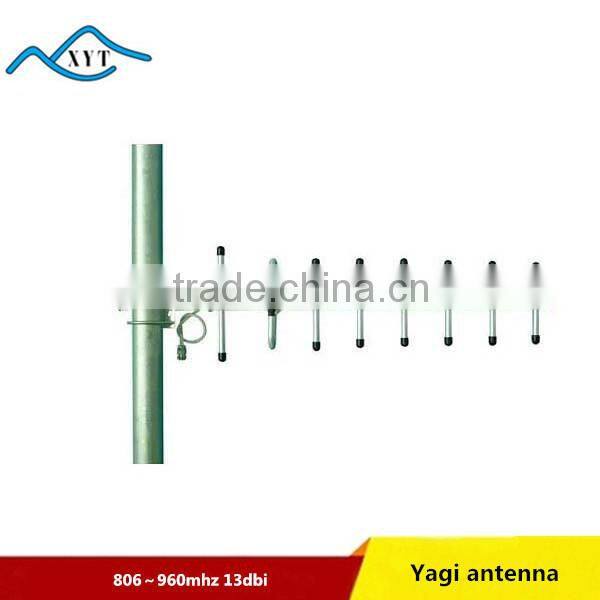

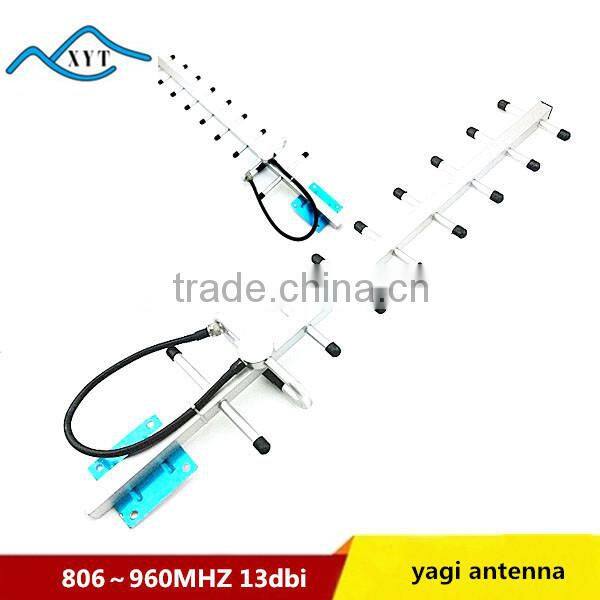

GSM 806-960MHZ 13DBI 9elements Outdoor digital TV yagi antenna with 3M cable

ELECTRICAL
Frequency Range	806-960-MHz
Bandwidth	154-MHz
Gain	13-dBi
Beamwidth	H:48 V:40
F/B ratio	≥16-dB
VSWR	≤1.5
Polarization	Horizontal or Vertical
Max power	100 -W
Nominal Impedance	50 -Ω
MECHANICAL
Connector	N female /SMA male or customized
Antenna Dimension	71019054-mm
Weight	0.5-Kg
Rated Wind Velocity	60-m/s
Mounting Mast Diameter	40-50mm

More Antenna:

Production Equipment:

About Us:

Shipping:

Trade Terms

1. Payment: T/T , 30% deposits before production, 70% balance to be paid before delivery.

2. Production lead time:5~ 7days against the deposit received.

3. Sample can be delivered in 3-5 days.

4. Shipping freight are quoted under your requests.

5. Shipping port: Shenzhen.

6. Discounts are offered based on order quantities.

7.MOQ:1PCS.

Our Service

1.Your inquiry related to our products or prices will be replied in 24hrs.

2.Well-trained and experienced staffs to answer all your enquires in fluent English.

3.OEM&ODM, any your customized Antenna we can help you to design and put into product.

4.Offered for your unique design and some our current models.

5.Protection of your sales area,ideas of design and all your private information.

If you need more detail information about us,pls send the enquiry to us now.thanks!
