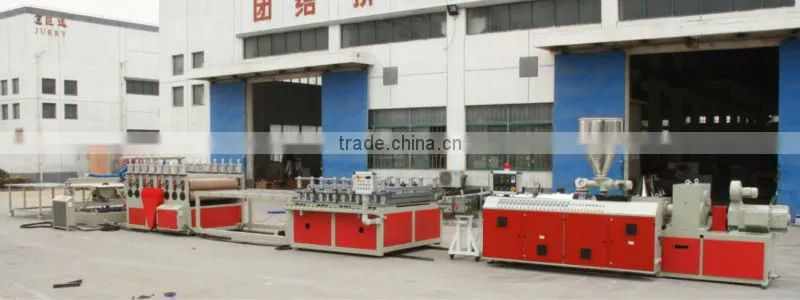

WPC foam board making machine
WPC foam board making machine is a new machine that our company developed. It is popular in building construction career nowadays. Its characteristics are as follows: 1. it is strong enough so that you can hummer it heavily and put nail on it. It will not be broken. 2. It is anti-erode, anti-water, heat resistance and insect prevent. 3. It can be reused for 18 times, which can reduce the cost. 4. It is environmental and is advocated by government. 5. It also has a lot of other advantages. Our company is professional in manufacturing this extrusion line, which can assure the quality and your requirements.
1 Extruder
No |
Name |
Spec |
1 Electric parts |
Inverter |
ABB brand |
Temperature meter |
RKC brand |
|
Contactor and relay |
Schneider brand |
|
Breaker |
Delixi brand |
|
|
|
|
2 Driving system |
Main motor |
Siemens AC motor |
Gear box |
Deling brand |
|
|
|
|
3 Feeder |
Type |
Screw type calibrated feeder |
Speed controller |
ABB inverter |
|
|
|
|
4 Screw and barrel |
The screw and barrel is designed according to customers’ formula |
|
The barrel is equipped with vacuum system and the screw is equipped with thermostatic system. | ||
Barrel heating |
Aluminum heating ring |
|
Barrel cooling |
By fan |
|
|
|
|
5Protection system |
Screw dislocation protection device |
It would stop the extruder automatically when the screw dislocates. |
Current overload protection device |
It would stop the extruder automatically when the current is overload. |
|
A whole set alarming system |
The alarm would ring when there is any part of the extruder goes wrong |
|
2 Vacuum calibration table
No |
Name |
Spec |
1 |
Main materials |
Stainless steel |
2 |
Water pump |
Shanghai Yvlong brand |
3 |
Main electric parts |
Schneider brand |
4 |
The calibration table is equipped with water temperature and water pressure supervising device. |
|
|
|
|
3 Cooling bracket
No |
Name |
Spec |
1 |
Type |
Roller type |
2 |
Roller materials |
Stainless steel |
4 Hauler
No |
Name |
Spec |
1 |
Type |
Roller type |
2 |
Hauling motor |
Densen brand (Germany joint venture) |
3 |
Gear box |
Densen brand (Germany joint venture) |
4 |
Speed regulator |
ABB inverter |
5 |
The hauler is equipped with edge cutting device and dust collecting device |
|
6 |
Main electric parts |
Schneider brand |
5 Cutter
No |
Name |
Spec |
1 |
Type |
Crosswise cutter |
2 |
Controlling system |
Schneider PLC |
3 |
Cutting motor |
Siemens AC motor |
4 |
Length counting |
Rotary encoder |
5 |
Main electric parts |
Schneider brand |
6 |
The cutter is equipped with dust collecting device |
|
6 Stacker
No |
Name |
Spec |
1 |
Type |
Auto stacking |
2 |
Main materials |
Stainless steel |
7After sales service:
----After production, we would invite you to test machines in our factory.
----After shipment, we would send our engineer to install the machines and communicate with your engineer in your factory.
----After installation, we would reply to your problem within 24 hours and if necessary we could send our engineer to your factory.
