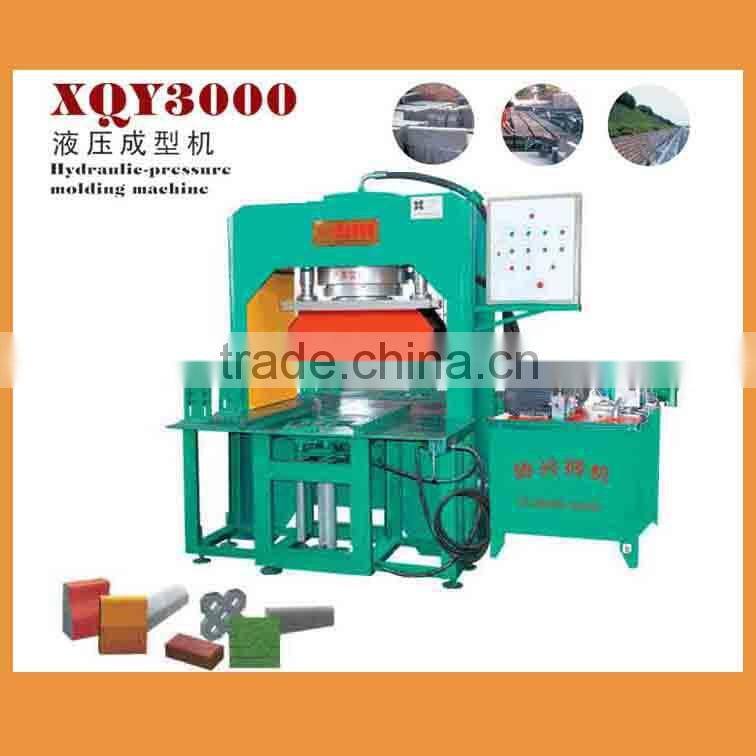

Hot selling XQY3000 hydraulic clay brick making machine
Technology Description of XQY3000 clay brick making machine
1, XQY3000 clay brick making machine as Machine bracket is combined in frame structure with two synchronous oriented poles.This machine is carefully designed to be tight-fixed,complete in functions and stable in operation.
2, XQY3000 clay brick making machine as Hydraulic-pressure and electric-controling system are perfect in designing,the parts are used all with domestic famous brands with pressure protection unit to guarantee the machine,electricity and hydraulic with safety.
3, Elevator and lowerator are added to raise the automation and production efficiency while reducing the working intensity at the same time.
4, XQY3000 clay brick making machine was wildly used,specially for producing the slope protection block,pathway block and so on,the maximum size is 1000×500×200mm.The size of final products is accurate,the angle is clear and the pressure-protection intensity is high.
5.Technical Datas of XQY3000 clay brick making machine
Item No. | XQY3000A | XQY3000B | XQY2000 |

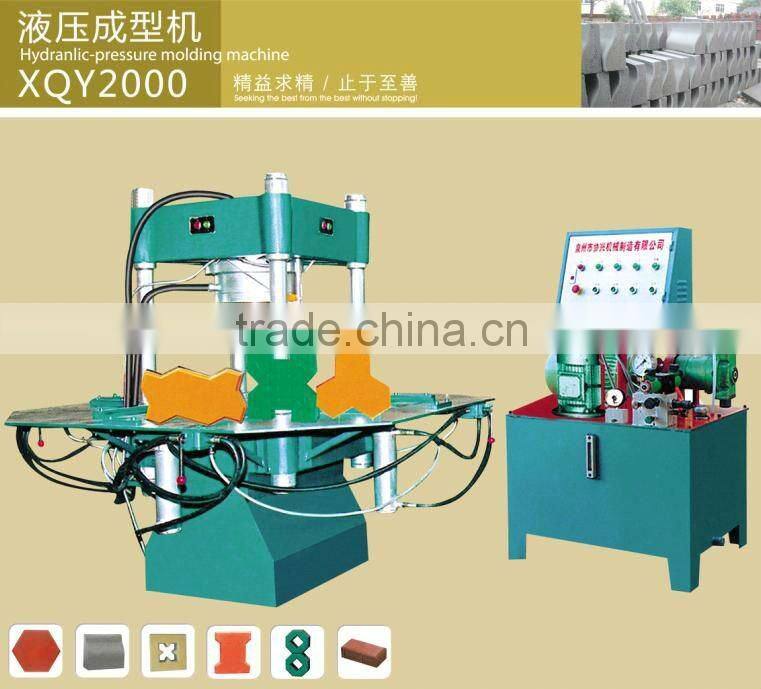

Overall Size | 4400X2500X3000 | 4400X2500X3000 | 3300X1850X1700 |
Rated Pressure | 300T | 300T | 150T |
Froming cycle | 20-50s/plate | 20-50 s/plate | 20-50 s/plate |
Power | 14KW | 14KW | 8.5KW |
Shaking frequency |
|
| 2800-4500r/min |
Weight | 6000kg | 4500kg | 3500kg |
Overall size | 4300×2350×2500(mm) | 2450×2450×2200(mm) | 2010×2010×1850(mm) |
Oil cylinder diameters | 360mm |
| 250mm |
Oil pump pressure | 31.5MPa | 31.5MPa | 31.5MPa |
6.Product folw for clay brick making machine
7.Other material can be used for XQY3000 clay brick making machine
8.The certifications for XQY3000 hydraulic clay brick making machine

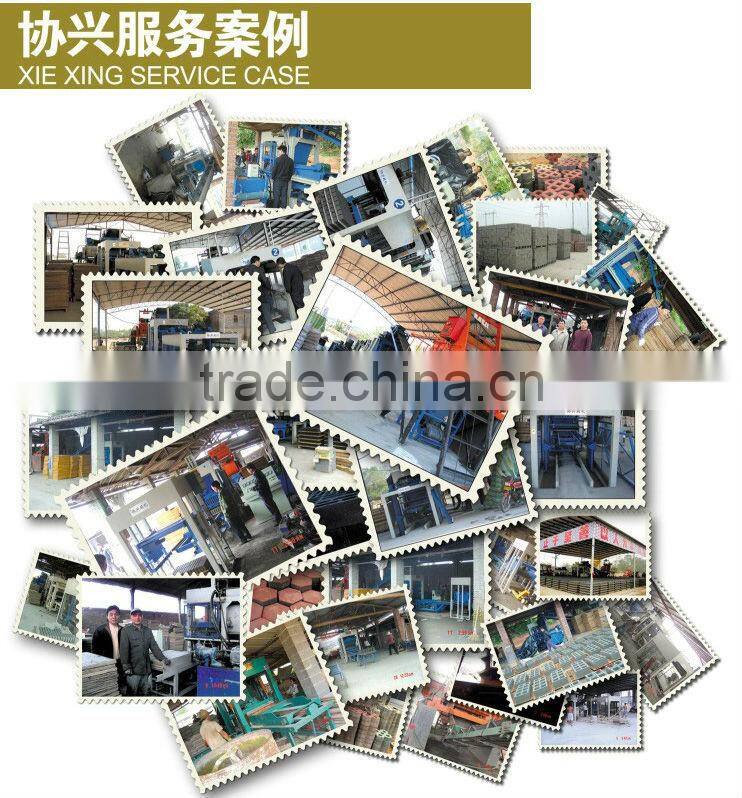

9.Serviced customer cases for XQY3000 hydraulic clay brick making machine
10.Other items of clay brick making machine

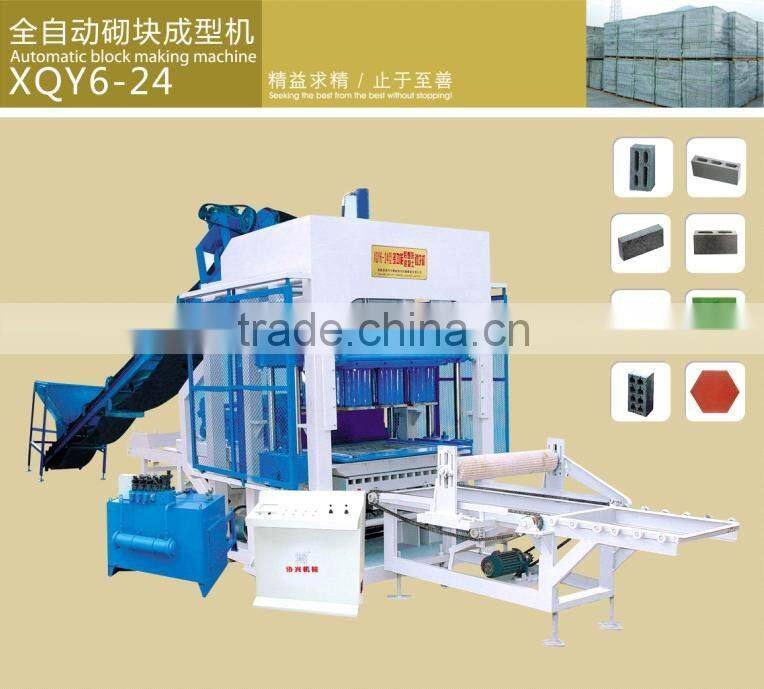

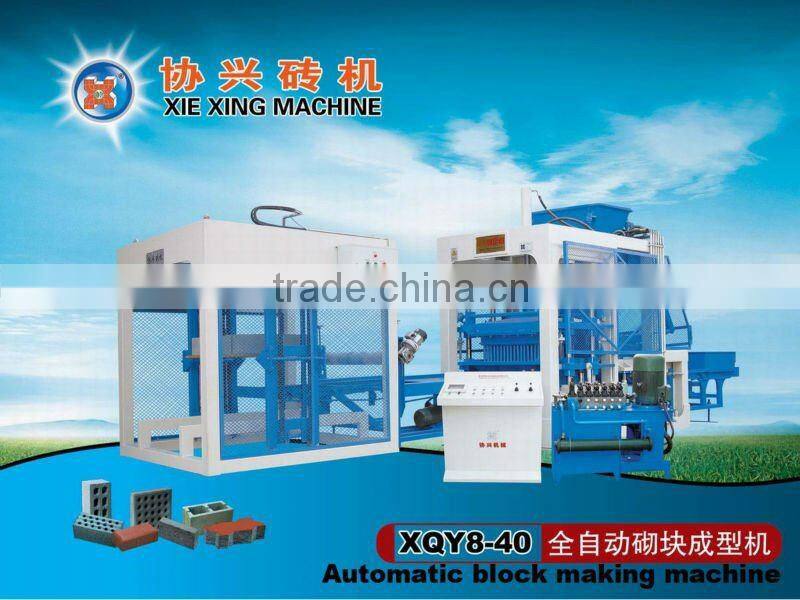

11.Concrete series product line we have

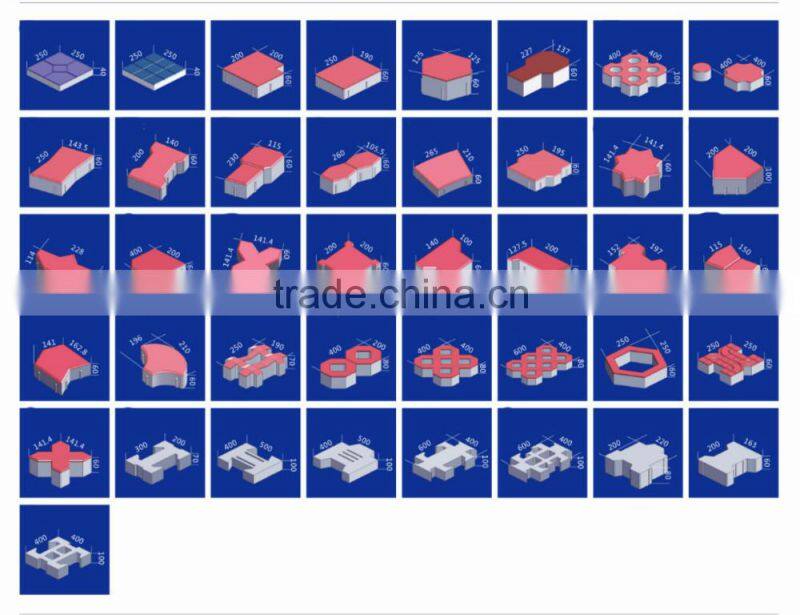

12.The concrete blocks can be made by concrete series machinery
13.The transportation & afterservice for XQY3000 hydraulic clay brick making machine
Questions | Answers |
How to contract with you | Skype:catherine6518 Telphone:+86-13062424086 |
What is the productivity of the brick machine? | Different brick machine with different productivity of different brick size.please contact the customer services to give you the detail productivity |
What is the electric voltage and rate? | Our local electric voltage is 380v, 3phase, 50hertz, the electricl voltage can be revised according to local situation |
Is PLC fully automatic or semi automatic? | PLC can be fully automatic and semi automatic, according to our experience, we recommend you fully automatic PLC to you. It is easier to operate fully automatic PLC, thus saving labour cost. |
Warranty period your company | 12 month after delivery. |
Do you have enterprise website? | |
How many molds come with one brick machine? | One brick machine come with one mold free, the extra mold need to buy extra. |
Hong long can the molds be used? | 150000times, after repair, can you use another 150000times. |
The life of the machine? | One brick machine can be used 6-10 years in common using station |
The mode of transportation. | by sea, by land or by rail according to situation. |
The production time of the brick machine? | The general production time about 20days , the specific time depend on the specific situations. |
