XQY4-26 Automatic Block Machine

Specifications

XieXing XQY 4-26 Automatic block machine

Automatic Block Machine of Main Technical features(XQY4-26)

1, Automatic Block Machine of controll system( PLC):

    A.PLC,Touch Screen

    B.Omron Relay, Schneider Contactor

    C.Control Panel with pictures.

2, Automatic Bock Machine of hydraulic system:

    A. Proportional electro-hydraulic relief valves

    B. Solenoid directional valves

    C. Pressure control valves

    D. Water cooling system

    E. Hydraulic Tank with oil filter

3, Automatic Block Machine ofTable Vibration System, High frequency low amplitude

    A. table vibration with HIGH FREQUENCY LOW AMPLITUDE

    B. press head has one Oli Cylinder

    C. vibration platform has fixed support bar and adjustable support bar

4, Automatic Block Machine of Mould

     A. Line cutting machine to make sure 100% accurate size of mould

     B. heat treatment can reach HRC 61

     C. Based on the customer requirement to make the various moulds,

          like hollow block, solid block, interlock block, curbstone block etc.

5,Automatic Block Machine of Feeder

     A. the fork is working about 40 degrees to push the material into the mould

     B. it can feed th various materials to the various moulds

Automatic Block Machine of Main Specifications

1, Silo(50T)

2, Screw conveyor

3, Batcher(2hoppers)

4, Mixer

5, Cement weighing system

6, Automatic Block Machine

7, Stacker

8, Hydraulic Station

9,  Control system( PLC)

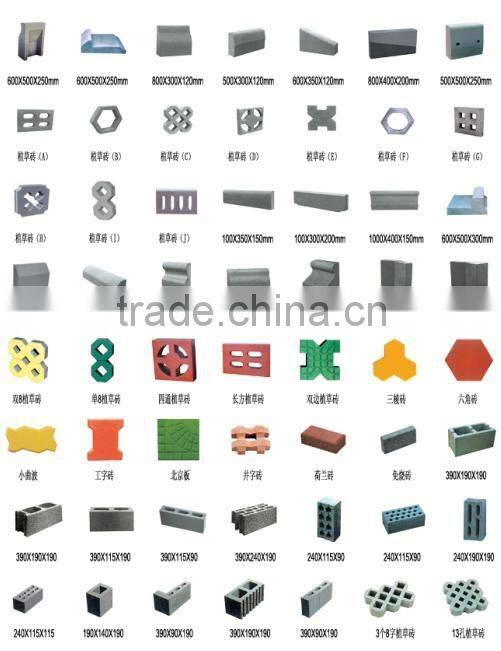

This is the highly automatic Automatic block making machine, auto weighing system, auto mixing, auto making cement blocks. this Automatic block making machine can make various blocks, like hollow blocks, paver, interlock, just change the mould. this  Automatic block making machine can be working two shifts, every shift shall be maintained very well, like clean the Moulds, Feeder, Mixer etc. this kind of  Automatic block making machine is very popular in the world, like Oman, Russia, Iraq etc.

Automatic Block Machine of Main Parameters

As these pictures showing:

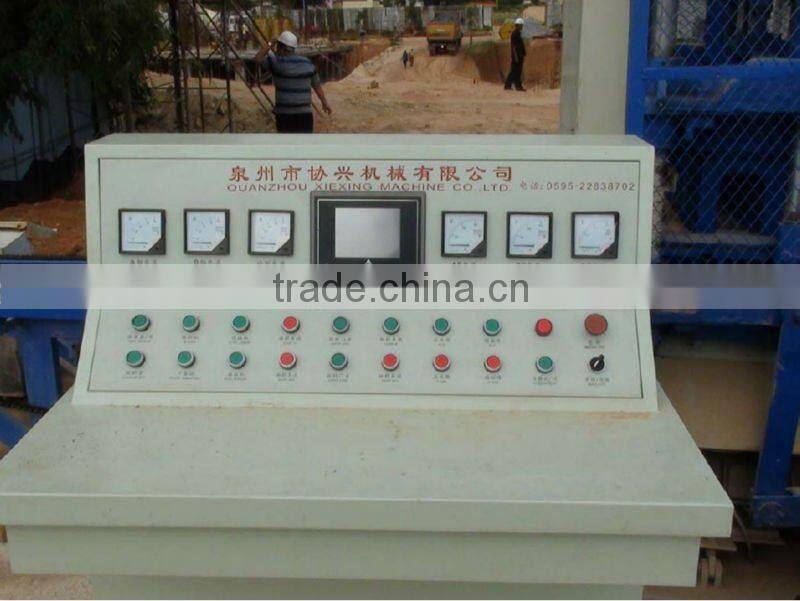

1, Automatic Block Machine of controll system(PLC)

2, Automatic Block Machine of hydraulic system

3, Automatic Block Machine of Table Vibration System, High frequency low amplitude

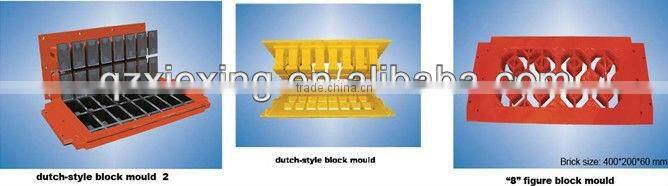

4, Automatic Block Machine of Mould

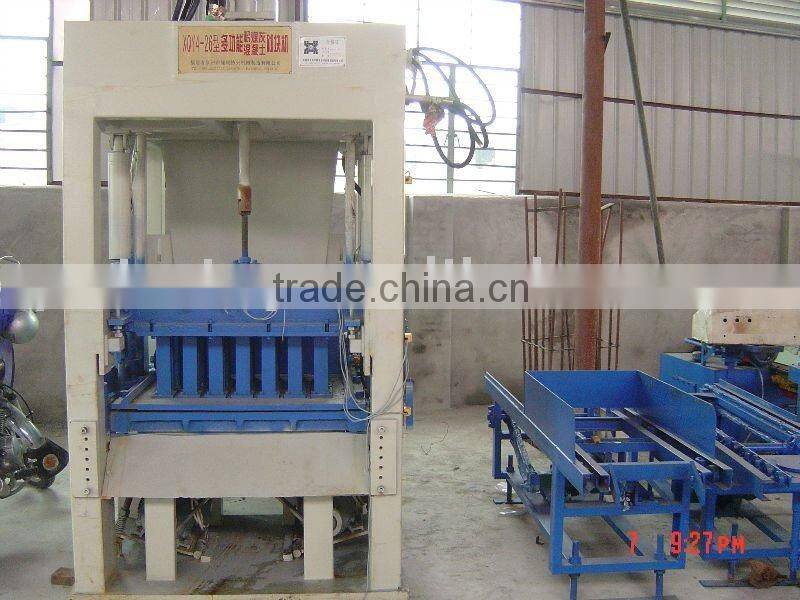

these are site picture for the  Automatic block making machine of factory

Automatic Block Making Machine of Production Line
