Specifications

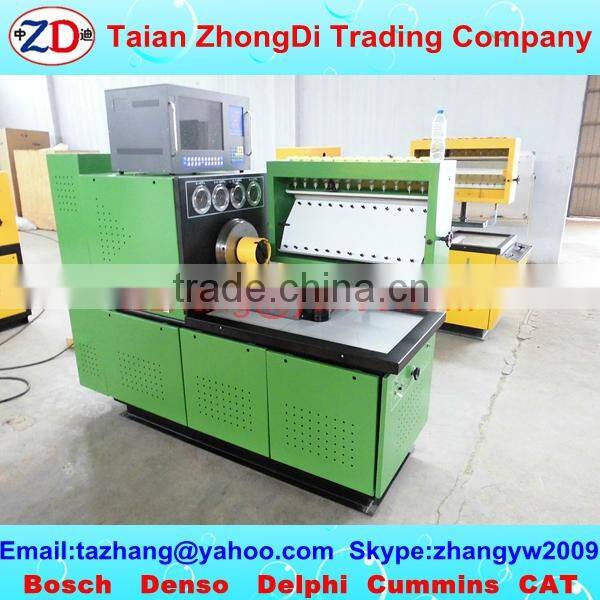

ZD-EPT-CMC Injection Pump Test BenchZD-EPT-CMC Injection Pump Test Bench
-----------------------------------------------------------------------------------------------------------
Characteristics:
*Windows operating system;
*Rotation speed,count,temperature,rack travel,air pressure and advance angle are measured and controlled by compuers in real time,then displayed by 15"LCD;
*The data of the pumps can be saved,modified and obtain pump databass;
*It is very easy to find the data of the pumps in pumps database;
*Built-in air resource;
*All data can be made into reports and printed;
*Changing frequency changing rotation speed,small fall of rotation speed and large output torque;
*Operating position:arbitrary side of the two work sides of the test stand;
*High precision,high efficiency and energy saving;
*Having the function of oil level display and alarm;
*Automatically generating and displaying speed character-istics curve;
*Operating position:arbitrary side of the two work sides of the test stand.
------------------------------------------------------------------------------------------------------------------------------------
Functions:
*Measurement of each cylinder`s delivery at various rotation speeds;
*Checking of each cylinder`s injection time with static state;
*Checking of the mechanical speed governors;
*Checking of the electricmagnetic valve of distrbutor pumps;
*Checking performance of the pneumatic governors;
*Checking of the pressure compensators(LDA);
*Measurement of the reflux delivery of distributor pumps;
*Measurement of the internal pressure of the distribu-tor pumps body;
*Checkong of the sealing of fuel injection pump body.
------------------------------------------------------------------------------------------------------------------------------------
Tecnnical Paramenters:
*Graduates:600/800ML;150/45ML;
*Oil tank volume:100L;
*Auto-controlled constant oil temperature:40±2℃;
*Test oil filtering unit:5μ;
*D.C.Supply:12V.24V;
*Feed pressure:low:0~0.4Mpa,high:0~1.6Mpa;
*Pump body inernal pressure:0~0.16Mpa,0~1.6Mpa
*Display air pressure,range:positive:0~0.3Mpa,negative:-0.03~0Mpa;
*Speed presetting range:0~4000RPM;
*Rack travel range:0~25MM;
*Center height:125MM;
*Flywheel inertia`s moment:0.8KG.M2;
*Output power:18.5KW,22KW,30KW;
*Overall size(MM):2365×960×1870;
*Net weight:1400KG.
