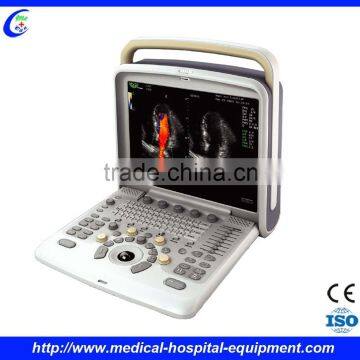

Portable Doppler Ultrasound Machine

Portable Doppler Ultrasound Machine

Medical 3D 4D Portable Ultrasound Machine Price for Pregnancy

Real Time 3D 4D Portable Color Doppler Ultrasound Machine

Model:  MC-DU-Q5

General Description of the Medical 3D 4D Portable Ultrasound Machine:

MC-DU-Q5 delivers superb image quality for multi-applications in abdomen, OB/GYN, small parts, urology and MSK. With the  advanced technologies of SRA, THI, it provides better contrast resolution, which greatly helps the diagnosis of difficult-to-scan  patients. A work-flow oriented User Interface is built to allow user-friendly operation with minimum soft key entries. Ergonomical  design of keyboard, 15 inch LCD large display, double probe connectors, USB and DICOM connectivity make your scan FAST and  EASY, and allow you to focus more on your patients.

Standard Configuration of the Portable Color Doppler Ultrasound Machine:

Main unit with 2 probe-connectors
15" high resolution and contrast LCD monitor
3.5MHz Convex probe (D3C60L)
7.5MHz Linear probe (D7L40L)
B,2B,4B,B/M,M mode
CFM mode
PW (Pulse Wave Doppler)
Power /Directional Power Doppler
EASYVIEWTM: image archive system
Built-in reporting system
AIO (Automatic Image Optimization)
320G integrated hard disk
Measurement & calculation software packages, OB/GYN/Urology/HIP/Vessel/Cardiac
DVD-R/W ,4 USB ports, Ethernet port and S-video output port

Featrues:

15" LCD monitor
Light weight and 2 probe connectors
4D

Professional OB report package
B, CFM, Power and Directional PD
Trapezoid, PW
i-Image^TM , image optimization technology Advanced technologies: SRA, compound, THI

Portable Doppler Ultrasound Machine

Specification of the Medical 3D 4D Portable Ultrasound Machine:
Imaging modes
B, 2B,4B,B/M,M
CFM
PW Mode
Power Doppler/ Directional PD
Duplex
Trapezoidal
Real-time 4D (Option)
Chroma B/PW

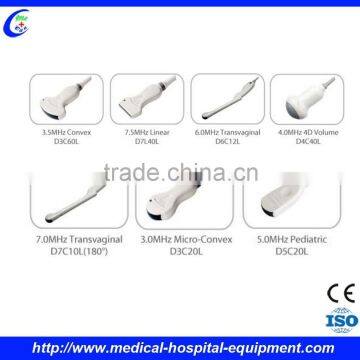

 Probes

 3.5MHz Convex probe
 7.5MHz Linear probe
 6.0MHz Trans-vaginal probe
 4.0MHz 4D Volume probe
 7.0MHz Trans-vaginal probe(180°)
 3.0MHz Micro-Convex probe (adult Cardiac)
 5.0MHz Pediatric probe
 Wideband, Multi-frequency

Image processing technology
THI on convex probe
Speckle Reduction Algorithm (SRA)
Compound technology
i-ImageTM: image optimization software

 Measurement & Report packages

OB&GYN
Vascular
Urology
Small parts
Basic cardiac

Optional modules of the Medical 3D 4D Portable Ultrasound Machine:

Super Image module (THI, Compound Imaging, SRA)

i-ImageTM software package
4D package (including 4D module, 4D software,4.0MHz 4D probe D4C40L)
DICOM 3.0
Biopsy Kit for convex/linear/trans-vaginal probes
Foot-switch
SONY UP897MD B&W Video Printer

Professional Clinical Applications of the Portable Color Doppler Ultrasound Machine:

Abdominal
Obstetrics
Gynecology
Vascular and Small parts
Pediatric
Urology
Musculoskeletal
