3d Ultrasound Machine

3d Ultrasound Machine

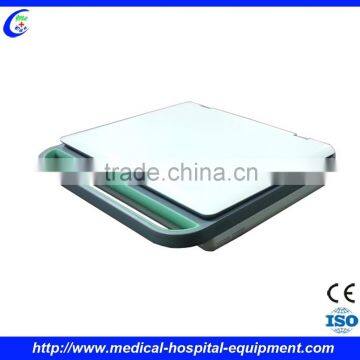

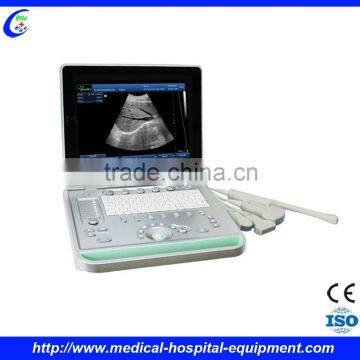

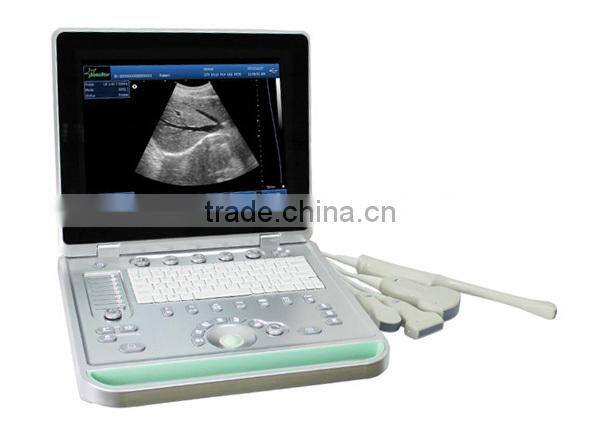

Laptop Fully Digital Ultrasound Scanner

Model: MCB-SS-9

Feature:
-15 inch LED screen
-Pretty, thin, and light
-2 probe connector
-Full digital imaging technology, crystal-clear Image
-3D Image function

-PC based, abundant functions
-Detail report edit function
-Powerful image management
-Large volume storage image and cineloop
-Not only can save image but also can save video


-DICOM display and transfer
-Compatible with laser/inkjet printers
-Abundant calculation functions and can select different calculate formula
-Can save and select some groups inspect parameter so save time to adjust per time
-Built-in battery(Work 5 hours)

-Multilingual(English, French, German, Spanish and so on)

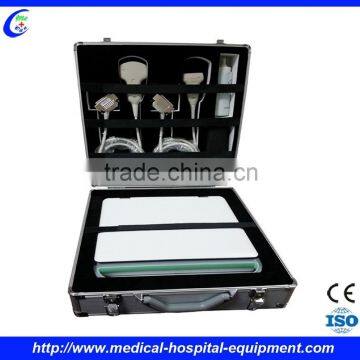

-Good aluminum trunk packing
-Multiple language:  English, French, German, Spanish,  Russian, Italian, Portuguese, etc.

Specification:
-Maximum Scanning Depth: max. 250mm
-Multi-frequency: 5 segment frequencies
-Cine Loop: max. 1024 frames
-Scanning mode: B, 2B, B/M, M, 4B, 9B, ZOOM;
-Real-time Zoom on B mode


-Image gray scale: 256 level gray scale
-Image processing: Pre-processing, after-processing, dynamic range, frame rate,  line average, edge
  enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision.
-Gain: 0-100dB; Time gain control(TGC): 8 segment adjustment, B, M adjustment separately.
-Measurement and calculation(human):

  B mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram
  M mode: heart rate, time, distance, slope and stenosis
  Gynecology measurement: Uterus, cervix, endometrium, L/R ovary
  Obstetric: gestation age, fetal weight, AFI
  Cardiology: LV, LV function, LVPW, RVAWT

  Urology: transition zone volume, bladder volume, RUV,   prostate, kidney
  Small parts: optic, thyroid, jaw and face.
  Veterinary:  Cattle: BPD, CRL, TD;  Horse: GA, Dog: GS, Cat: HD, BD,  Sheep: BPD, CRL, TD
-Supported output apparatus: U-Disk, Laser/ink printer, video printer, VGA
-Zoom: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0

-Image store: by hardisk or USB disk, can save image and also video(avi or swf format)
-3D image function(optional): can get rebuilt 3D image by any probe
-Work time by built-in battery: about 5 hours
-Monitor: 15 inch color LED touch screen
-Probe Connector:2
-Dimension: 362mm×340mm×60mm
-Weight: Around 4.8Kg

3d Ultrasound Machine

Standard Configuration:
One main host, one convex probe(3.5MHz), one power adapter, one aluminum trunk.

Optional:

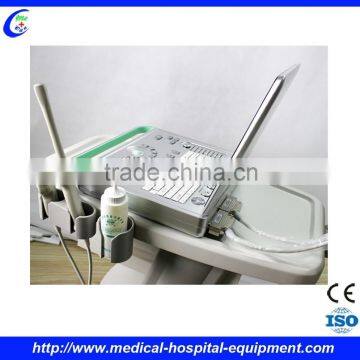

Linear, Trans-vaginal, Micro-convex, Rectal Probe, 3D image function, Bag,Trolley, Laser Printer.
