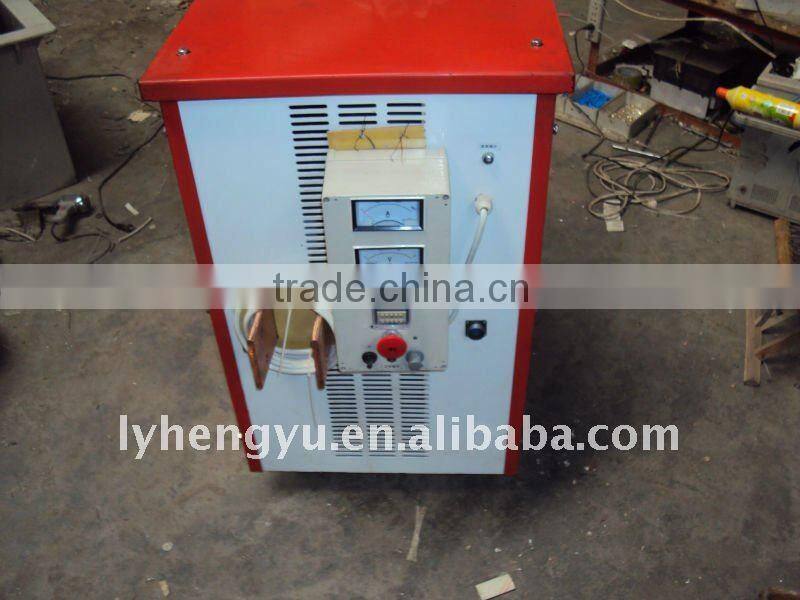

2013 Best quality high frequency plating rectifier

Specifications

IGBT hrome plating rectifier:
1.IGBT module2.PWM&full bridge inverted control
plete function &protection4.timing con

Detailed Product Description



IGBT hrome plating rectifier:
1.IGBT module2.PWM&full bridge inverted control
plete function &protection4.timing control

IGBT Chrome plating rectifer

eatures & Specification of Basic Model

type		ZY-1500A-12V
Electrical specification	Input voltage	3-phase  AC220/380/440V±15%  50HZ
	Rated output voltage	0-12V
	Rated out current	0-1500A
	Rated out power	18KW
	Range of output Conditioning	At 0 to100% of rated voltages
		At 0 to100% of rated currents
	Adjustment range	From 0-100%continuously adjustable
	Output conditioning method	Switching mode
	Machine efficiency	≥90%
	Constant voltage control accuracy	Within 1.0%of rated output voltage
	Constant current control accuracy	Within 1.0%of rated output current
Insulation resistance		5MΩor more
Cooling system		Forced air cooling
Working condition	Location	Indoors
	Ambient temperature	-20-55°C
	Relative humidity	30-85%



1. It is designed according to a chrome plating process. With complete protection functions, the impulse current does no damage to the devices. It also has the multi-step power supply function. The bonding force between the plating coat and base body is strong. 2. Low ripple coefficient. It is able to increase the deposition rate of the plating coat and enhance the current strength for blind spots so that every part of a plated object can have a uniform plating coat and a firm bond with the base layer.

3. It is able to meet requirements of the chrome plating process.

With microcomputer technology, it has complete functions and accurate time keeping capabilities to monitor and control the plating time and plating thickness effectively so as to improve plating quality and production efficiency.

4. Complete control functions. Soft starting. Multi-step power supply and timing control.

5. Expandable functions.

It has intelligent touch keys, a big screen backlight LCD, and a Chinese step-type menu. Communication function (RS485 232).

Current calculation function (ampere hour).

Applications: It is suitable for hard chrome plating, decorative chrome plating, and deep hole chrome plating in steel factories, roller factories, bearing shock absorber factories and wear-resistant parts (piston rings, cylinders), etc. (code3 & 3)
