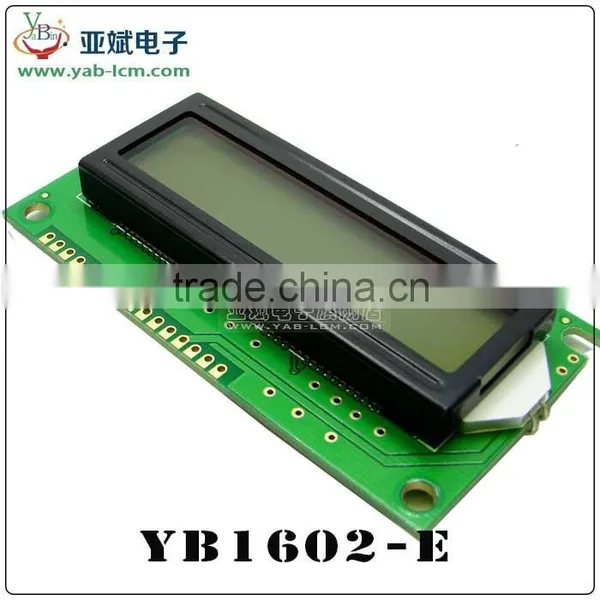

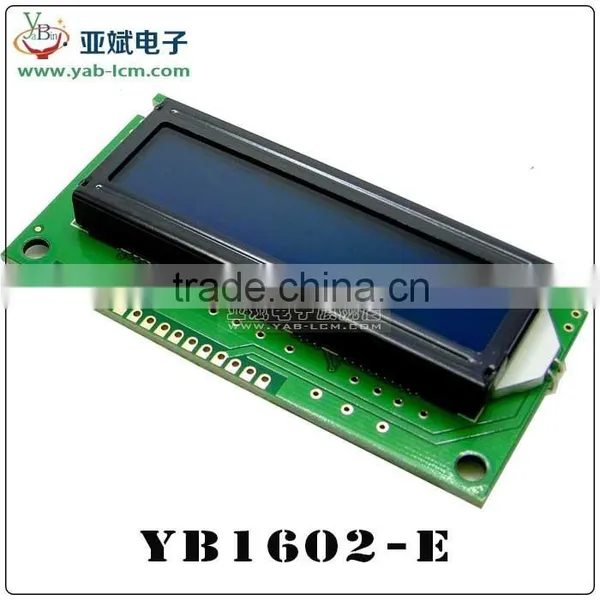

character with SPLC780 driver display module 1602 lcd display

Name: character with SPLC780 driver display module 1602 lcd display
Brand: YB
Price: Negotiable

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port Shenzhen
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	YB	Model Number:	YB1602E
Type:	Character

Product Description

character with SPLC780 driver display module 1602 lcd display

Product Description

1. Describe :

Manufacturer	YaBin
Series Number	YB1602-E
Display Format	16x2 Dots
Outline Dimension	84(W)x44(H)x12(T)mm
Visual Area	62.0×18.0mm
Active Area	55.45(W)x10.75(H)mm
Character Size	2.95x5.55mm
Diagonal Size	2.6“
Dot (Pixel) Size	0.55X0.65mm
IC Package	COB
IC or Equivalent	SPLC780C/HS44780/KS0066 or Equivalent
Interface	6800 8-bit/4-bit Parallel
Interface	parallel
Display Type	STN/FSTN
Sunlight Readable	No
Touch Panel Optional	No
Contrast Ratio(Typ)	No
Viewing Direction	6:00
LED Backlight Color	Blue /Yellow Green /Gray
Appearance	White on Blue/Black on Yellow Green/ Black on White
Power Supply(Typ)	3.3V/5V
Backlight Current (Typ)	15mA
Operating Temp	-20℃~70℃
Storage Temperature	-30℃~80℃
If accept customized	Yes
RoHS Compliance	Yes
