16X2 character lcd display 16X2 lcd screen 1602 with3.3V/5V Overall dimensions 84*44
- 10000 Piece / Pieces per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- negative segment character running machine lcd display,practical STN,blue backlight, fitness equipment
- digital fire alarm installation module display, HTN segment display with blue led lcd panel
- negative autoreclose circuit-breaker lcd display, segment module with blue led
- charger negative character lcd display,white led ,battery segment small flexible display
- character small charger lcd display ,custom battery display ,white led
- segment positive temperature time clock lcd display,blue TN white backlight
Product Details
Place of Origin: | Guangdong, China | Brand Name: | YB | Model Number: | YB1602E |
Type: | Character |
Product Description

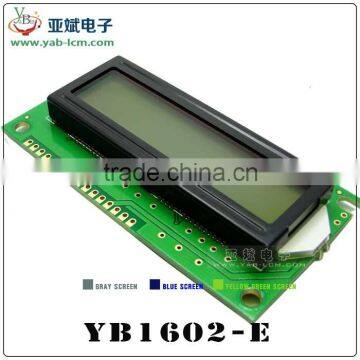

16X2 character lcd display 16X2 lcd screen 1602 with 3.3V/5V Overall dimensions 84*44
1. Describe :
Manufacturer | YaBin |
Series Number | YB1602-E |
Display Format | 16x2 Dots |
Outline Dimension | 84(W)x44(H)x12(T)mm |
Visual Area | 62.0×18.0mm |
Active Area | 55.45(W)x10.75(H)mm |
Character Size | 2.95x5.55mm |
Diagonal Size | 2.6“ |
Dot (Pixel) Size | 0.55X0.65mm |
IC Package | COB |
IC or Equivalent | SPLC780C/HS44780/KS0066 or Equivalent |
Interface | 6800 8-bit/4-bit Parallel |
Interface | parallel |
Display Type | STN/FSTN |
Sunlight Readable | No |
Touch Panel Optional | No |
Contrast Ratio(Typ) | No |
Viewing Direction | 6:00 |
LED Backlight Color | Blue /Yellow Green /Gray |
Appearance | White on Blue/Black on Yellow Green/ Black on White |
Power Supply(Typ) | 3.3V/5V |
Backlight Current (Typ) | 15mA |
Operating Temp | -20℃~70℃ |
Storage Temperature | -30℃~80℃ |
If accept customized | Yes |
RoHS Compliance | Yes |
2.Overall dimensions:
3.Interface pin connec:
1.Material cost breakdown: | |||
Product model | YB1602-E | specifications | yellow-green / blue 5V (standard configuration) |
Items | price (USD) | Items | price (USD) |
Print circuit board | 0.24 | electronic element | 0.01 |
Liquid Crystal Display | 0.28 | Integrate circuit | 0.23 |
Iron box | 0.13 | Chip on board assembly (independent production) | 0.2 |
LED backlight (independent production) | 0.1 | production cost (SMT+COB+assembly+packing) | 0.2 |
Conductive article | 0.04 | material loss | 0.15 |
cost of total amount | 1.58 | ||
2.Market pricing: | |||
Minimum quantity (PCS) | Rate of profit (%) | total profit (USD) | EXW price (USD) |
1-49(sample) | 35% | 0.55 | 2.13 |
50-99(Small batch) | 30% | 0.47 | 2.05 |
100-499(Small batch) | 25% | 0.40 | 1.98 |
500-999(big batch) | 20% | 0.32 | 1.90 |
more than 1000(big batch) | 15% | 0.24 | 1.82 |
Special configuration, the price is negotiable. If there is disagreement on the above price please contact me with details, thank you! |
According to customers' various requests,tft lcd, lcd panel, lcd monitor, lcd screen, TN and STN lcd display module,character and graphic lcd module,industrial lcd,we can match all accessories which inclusive of driver board,LED backlight
1.We provide a verity of lcd glass and lcd moudle, Includeing TN LCD,HTN,STN,FSTN,LCD,COB,COG( 8 Digital LCM )
2.Character Module: Whole product series for 8x2, 16x1, 16x2,16x4,20x2,20x4,24x2,40x2,40x4 characters
3. Graphic Module: Including 64x32 dots,122x32 dots,128x32 dots,128x64 dots,144x32dots,192x32 dots,
192x64 dots,160x80 dots,240x128 dots, 320x240 dots series.
4. LCD Display Module, TFT
1.Skilled technology and strict for quality.
2.Powerful products design and develop.
3.Experienced sales team
4.Prompt delivery and service
5.Low cost solutions and high quality product supply
2 Character lcd screen is elaborated as follows:
Advantages:
1. Backlight Replaceable
2. LED backlight
3. Wide view angle
4. High Quality
5. Produced in our own factory
6. Reasonable Price
OEM is accepted Customized LCD Module we are welcome Various LCD Display Mode Available Various LED Backlight Color Available Various Temperature Range Available
1. Long Term Continuity Supply Warranty |
We understand you probably worry whether we still offer the display after your long development time.EastRising gives the promise to every |
customer to every product we sell on this web store. We promise the long terms continuity supply and would never end supply.Some controller |
IC may stop the production,we’ll try our efforts to find the completely compatible ones.If the equivalent is unavailable, we’ll make the new |
tooling and use the most similar IC as replacement.So you don't have to worry even your research time is very long. |
2. What is covered under warranty and for how long? |
All products are covered under our limited warranty, which provides all products are free of functional defects for a period of one year from the |
date of shipment and all products are free of visual defects and missing parts for a period of 30 days from the date of shipment. |
If a product was damaged during shipping or the order is incorrect, you must notify us within 2 days of receipt. |
3. What is not covered? |
Warranty is void and no repair or replacement is granted under the following conditions: |
3-1. Evidence of mechanical stress to parts including but not limited to. |
3-2. Damaged or broken glass or touch screen. |
3-3. Damaged conductors/components. |
3-4. Damaged polarizer. |
3-5. Damaged mounting holes. |
3-6. Parts tamper ed with by grinding, engraving, drilling, cutting or applying coatings of any kind. |
3-7. Addition or removal of components. |
3-8. Evidence of damage caused by applying incorrect voltage. |
3-9. Evidence of damage caused by operating outside of specified temperature range. |
3-10.Evidence of damage caused by electrostatic discharge (ESD). |
4. What if I have a defective product under warranty? |
We will, at our option, either (a) repair the product using new or refurbished parts, or (b) replace the product with a new or refurbished product. |
"Refurbished" means a component that has been returned to its original specifications. We do not give refunds, credit memos. |
5. How do I make a warranty claim? |
For warranty service, you must begin by requesting a Return Material Authorization number (RMA) from our sales.(Please refer to our “Return" |
policy for more detail.) |
