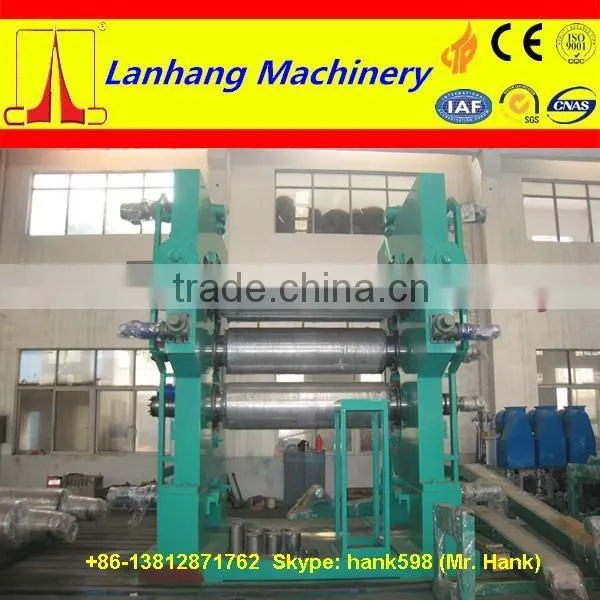

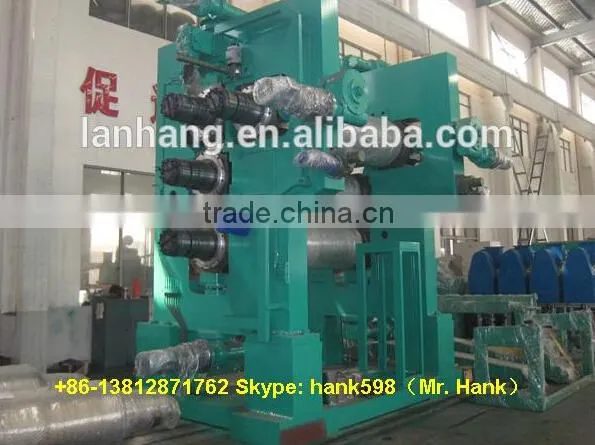

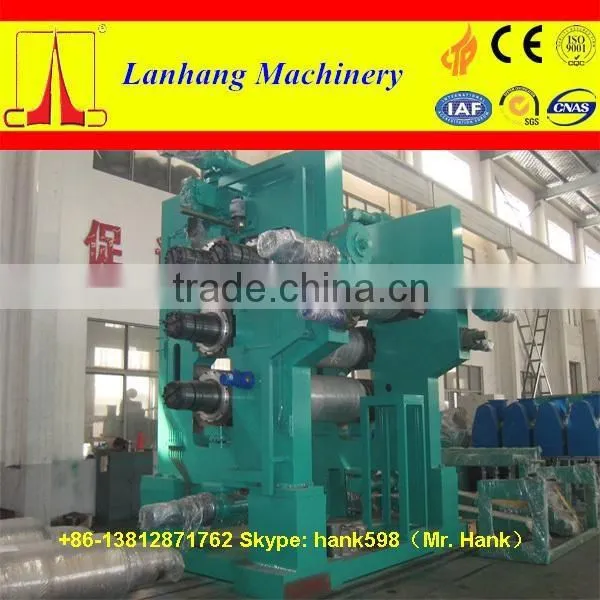

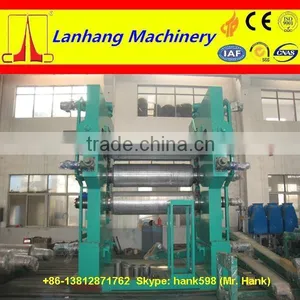

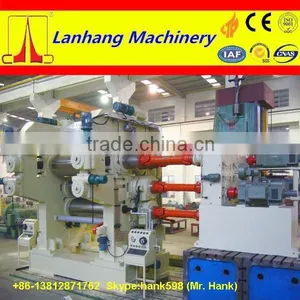

Help CenterSY660*2300 PVC Four 4 Rolls Sheet Calender Machine
Related Products
-
BP-1550 Plastic Three Rollers Calender MachineUS$ 80,000 - 180,000MOQ: 1 Set -
BP-1220 Plastic Three Rollers Calender MachineUS$ 80,000 - 180,000MOQ: 1 Set
-
BP-960 Plastic Three Roller Calender MachineUS$ 80,000 - 180,000MOQ: 1 Set
-
SJL-350 Plastic Strainer Plastic Filtering Machine Plastic Straining ExtruderUS$ 30,000 - 99,000MOQ: 1 Set
-
SJL-300 Plastic Strainer Plastic Filtering Machine Plastic Straining ExtruderUS$ 30,000 - 99,000MOQ: 1 Set

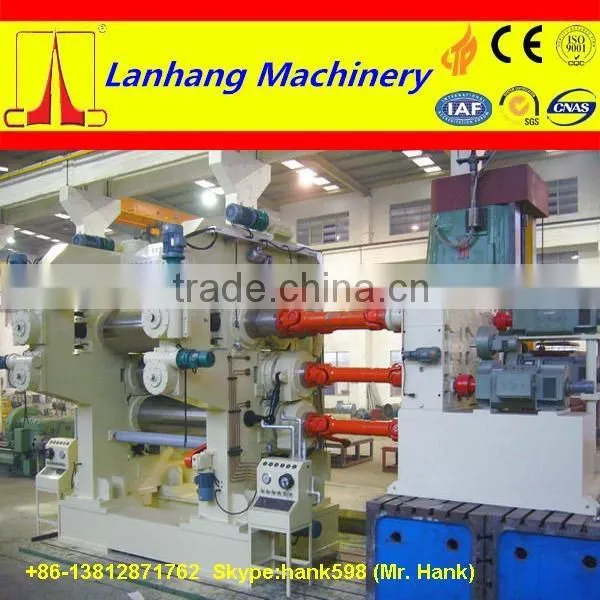

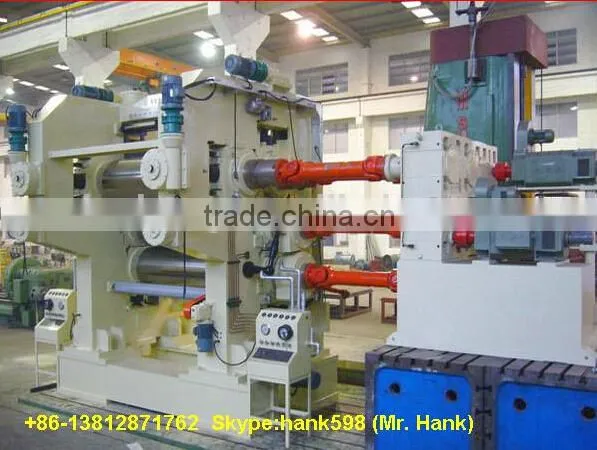

Application of 4-roll calender
SY-4F Four Roll PVC calendering machine is mainly used in the plastic (thin film, thin steel plate, aritificial leather wallpaper,flooring, etc), in rubber (tire,leather belt,textile fiber rubberizing and so on) , formation processing.
The 4-roll calender offers the advantage of working air out of the rubber more thoroughly and gets uniform thickness of film or sheet. It can also be used to coat the rubber film with single or both sides of textile operation.
In the calendering process, fabric and rubber or plastic material is passed through a series of rollers to flatten, smooth and commingle the two or more materials. The more rollers are, the more rolling, and more effective.
It is kind of precise and durable rolling equipments with simple operation, high precision, and good effect.
Why Choose 4-roll calender from Lanhang
1. Since1992, with more than 20 years' professional experience
2. Overseas service center available (in Europe, Japan, Dubai, etc.)
3. International CE, SGS, IAF, CNAS certification
4. National high-tech enterprise / products
5. Various National Patent for Inventions Letters for rubber & plastic machinery
6. ISO9001:2008 management
Main Parameters of Our 4-Roll Calender:
Item/ Model |
SY610x1900 |
SY610x2030 |
SY660x2500 |
SY710x2800 |
|
Roll specification (mm) |
610x1900 |
610x2030 |
660x2500 |
710x2800 |
|
Layout of the roll |
L type;Inverted L; S; Z |
||||
Roll speed (m/min) |
40-100 |
40-100 |
50-120 |
50-120 |
|
Final product thickness (mm) |
0.08-1 |
0.08-1 |
0.08-1 |
0.08-1 |
|
Rolled products Width (mm) |
1500 |
1600 |
2100 |
2300 |
|
Main motor power (kw) |
200kw |
260kw (55kw2sets 75kw 2sets) |
330kw (75kw2sets 90kw 2sets) |
400kw (90kw 2 sets 110kw 2 sets) |
|
