Futures of Banbury mixer:
1. Intermeshing or tangential rotor
2. Rotors, mixing chamber, harmmer and parts which contacts with the material are overlayed with 5mm wear-resistant alloy (up to 50HRC)
3. Pneumatic or hydraulic type top mounted ram is optional
4. Inverted AC motor or variable speed DC motor is optional
5. Copper-ring and hydraulic sealing
6. 2-wing, 4-wing, 6-wing are available
7. Excellent dispersing effect
8. Best mixing rotor and chamber to guarantee 100% mixing effect
9. Low noise, safe mixing
10. Maintenance friendly and long-life service
Technical paremeters:
| ProjectModel | S-75L | S-100L | S-120L | S-160L |
| Working capacity of mixing chamber(L) | 75 | 100 | 120 | 160 |
| Rotating speed of rear rotor(r/min) | 1:1.17 | 1:1.17 | 1:1.17 | 1:1.17 |
| Main motor power(kw) | 160 | 220 | 300 | 400 |
| Pressed of compressed air(MPa) | 0.6 | 0.6 | 0.6 | 0.6 |
| Weight(t) | 20 | 22 | 28 | 32 |

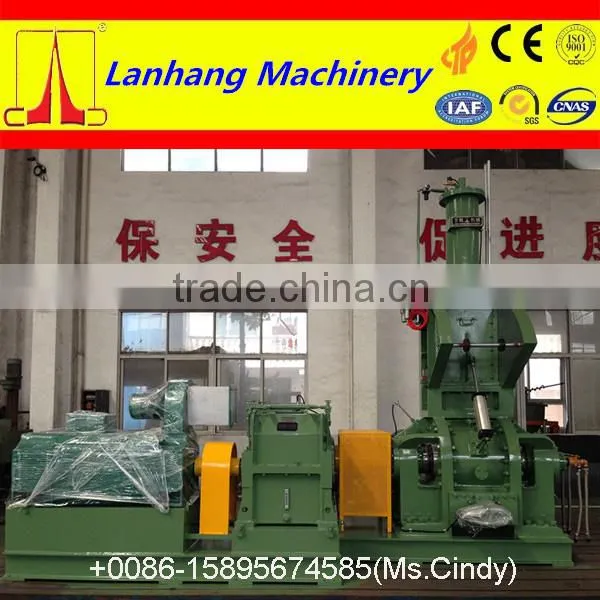

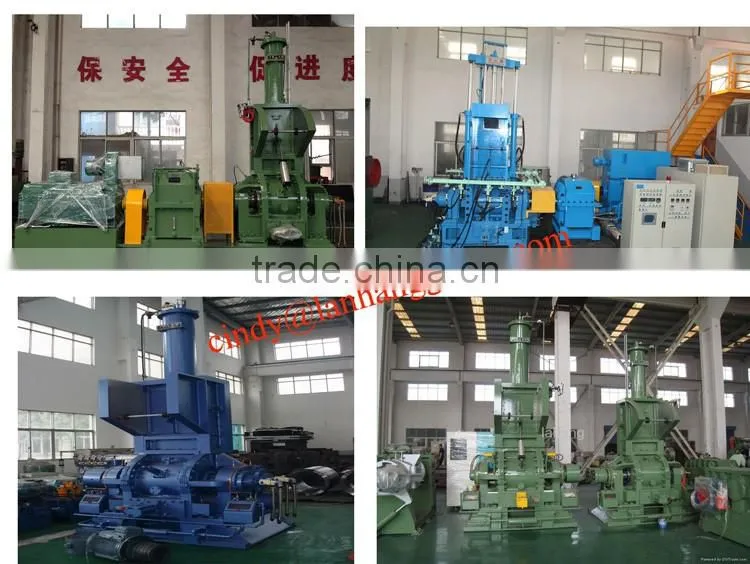

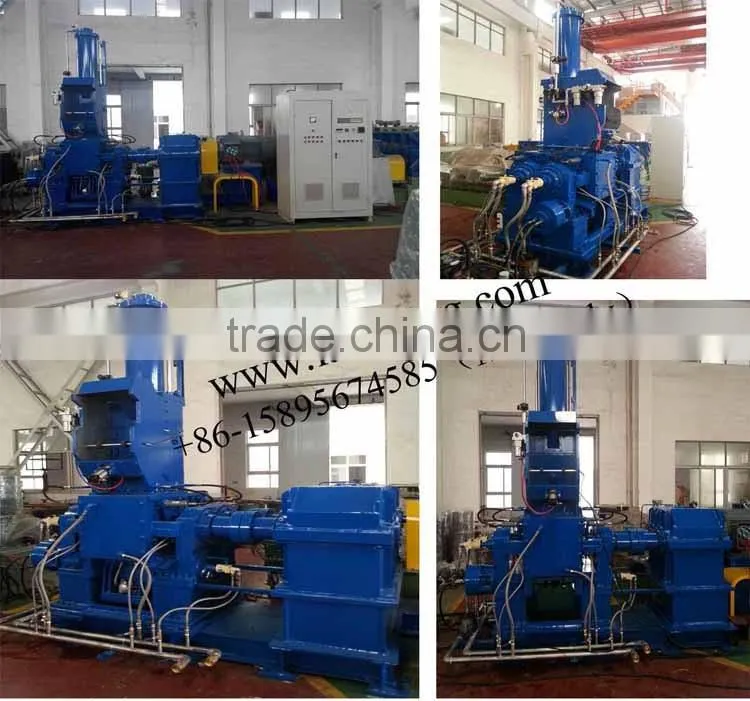

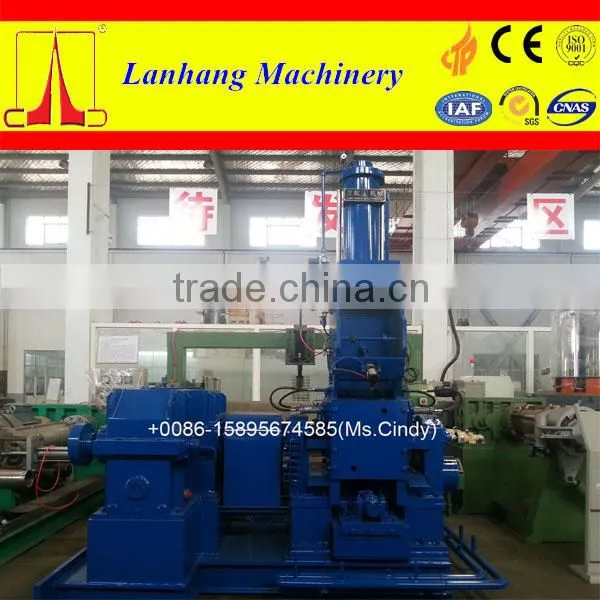

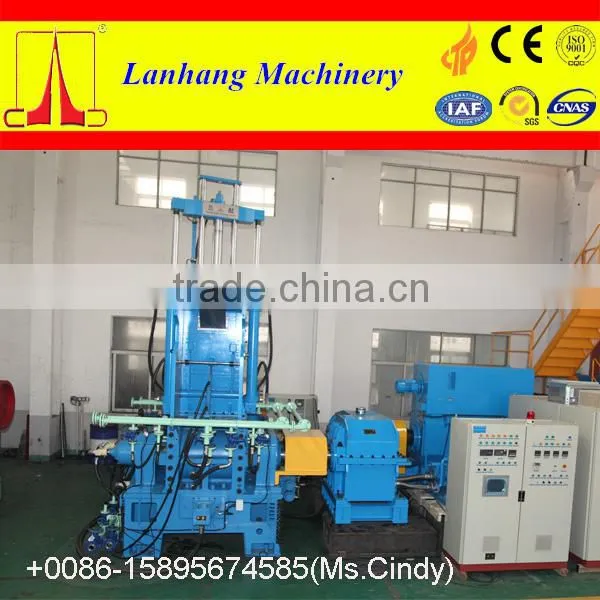

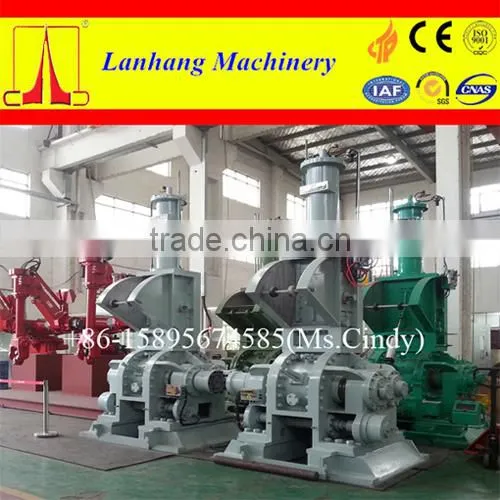

Reference pictures:
Exhibition
Service:
Workshop:
We are one of the leader of Plastic &Rubber machine manufacturers in China, Our company was founded in 1992,with more than 20 years experience. We are very professional on making banbury mixer ,mixing mill ,calender ,planetary extruder,sigma mixer and so on.
Our company's products are sold excellent well home and aboard, we exported our machines to South-east Asia,Mid-east,Europe and the America.
1. One year warranty
2. Engineers available to service machinery overseas (installation, debugging, commissioning and maintenance.)
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. Life-long technical support
