Specifications:
1.PP strapping roll making machine
2.high quality
3.it produces 5mm-19mm PP straps
duce 0.5mm thick strap
pp strap band making machine/pp strap band extruder
About machine:
This production line can produce different width and thickness of PP strap according to the client's requirement. The raw material can be 100% recycled material, which can reduce the cost and get a good profit.
pp strap band extruder Advantages:
1. Light weight of the straps with 3.3g/m(12006).
2. Automatically production reduced the labor cost.
3. Advanced technology in the same industry.
4. High production capacity with linear velocity 280m/min.
5. Free traning for customers.
Configutation of pp strap band making machine/pp strap band extruder :
1. Dehumidifying and Drying Machine
2. Automatic Feeding Machine
3. Single Screw Extruder
4. Mould
5. Casting Trough
6. The First Seven Roller Preheating Machine
7. Hot Stretch Oven
8. First Tractor
9. The Seven Five Roller Preheating Machine
10. Embossing Machine
11. Tension Heat Setting Device
12. Three Roller Tractor
13. Cooling Water Tank
14. Three Roller Tractor
15. Single Station Coiler
16. Electrical Control Cabinet
Main technical parameters:
Extruder model |
SJ-65×25 |
Embossing roller linearspeed ( min) |
12-120 |
Extrusion capacity (kg/h) |
30-50 |
Length of stereotypes sink ( mm) |
1200 |
Handpiece Forms |
Vertical |
Stereotypes coolant |
water |
Handpiece heating power ( kw) |
4 |
Coil power (kw) |
0.55 |
A Traction Power (kw) |
0.55 |
Curl Speed (min) |
12-120 |
Traction speed ( min) |
3-30 |
coil plate number |
1-2 |
Oven heating power (kw) |
8 |
Specification (mm) |
10-20 |
Secondary Traction Power (kw) |
2.2 |
Unit area (m) |
3×15 |
Traction speed (min) |
12-120 |
Unit Weight (kg) |
1800 |

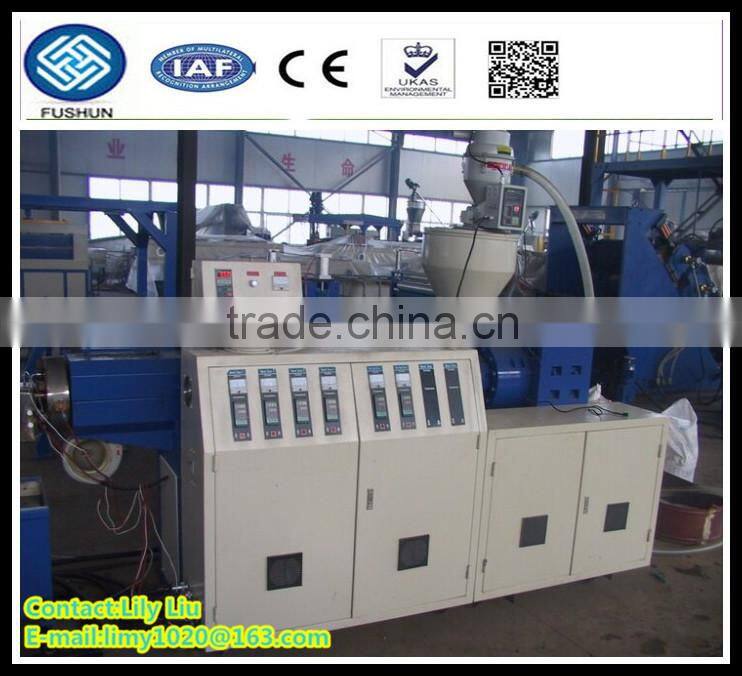

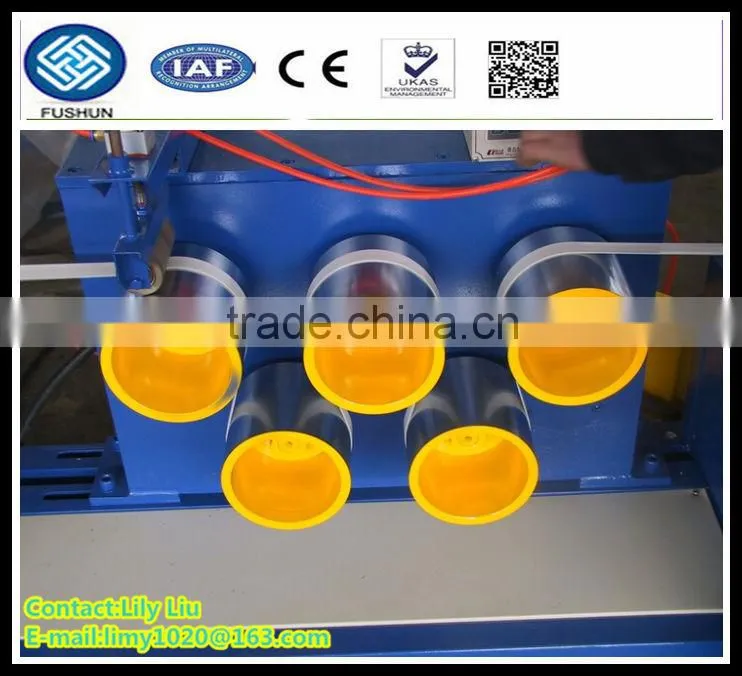

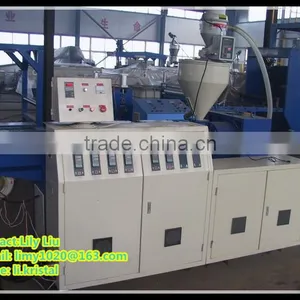

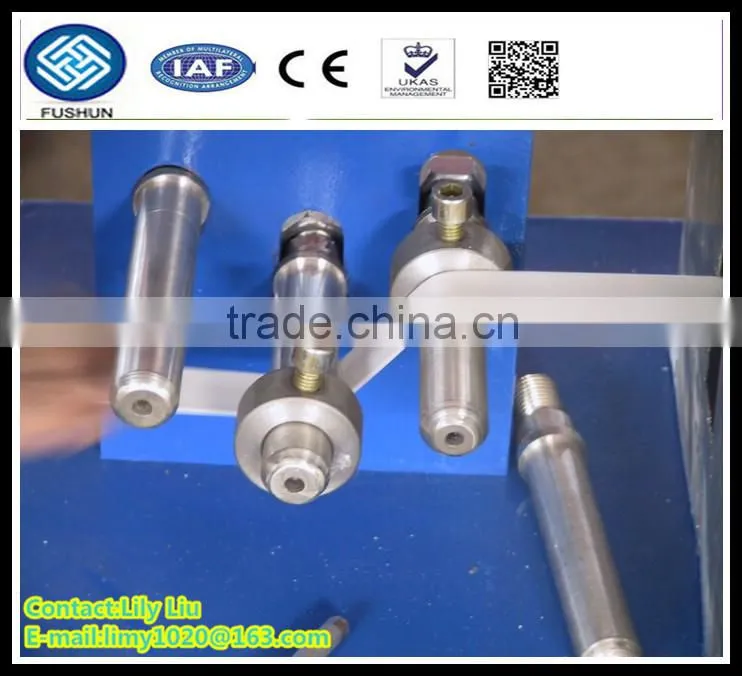

The Photo of pp strap band making machine/pp strap band extruder:

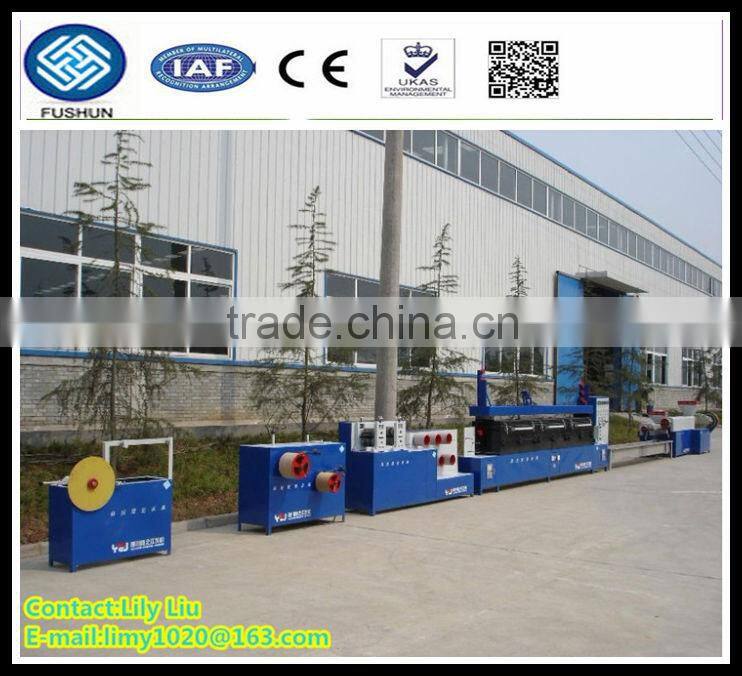

Production line:
Experience:Our company have more than 16 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology
Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Turkey, Iran, Pakistan, Bangladesh, Indonesia, Vietnam, Mexico, Peru, South Africa, Egypt and so on.
After Sales Service: after selling the machine,our technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers
