Help CenterParallel Double Screw Extruder
Related Products

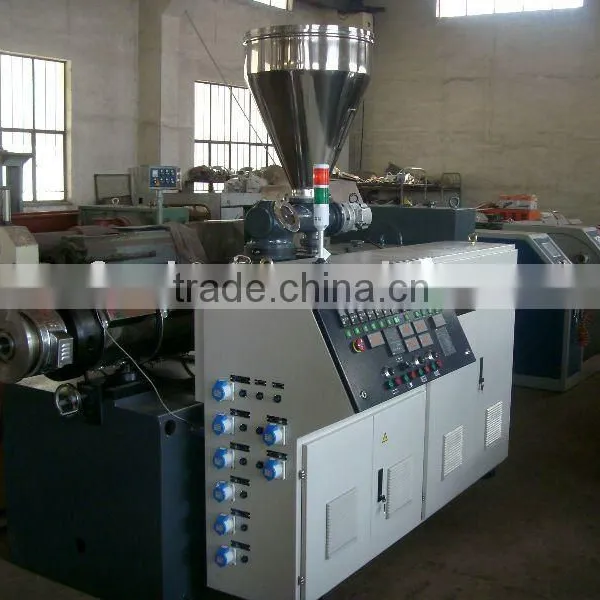

Model SJP series parallel double screw extruder is a kind of special equipment for PVC powder.
PVC plastic pipe material, profile material, plate material, sliced material, bar material and granulation.
1) The screw has applied oil cooling system. Cylinder is cooled by special wind cooling system.
2) The control system has applied special computer control system. According to customers requirements most reasonable screw can be made so as to achieve best
plasticity state and material quality.
3) The screw is made by high precision special digital screw miller. Extruding property can be highly harmonized. It has firstly introduced advanced technique of producing
screw with viable pitch and depth so that the material can be more softly sheared and cut pressure.
4) The electrical system has mainly applied imported parts and it has multiple alarm system. There are few problems, which can be easily eliminated. The cooling system
has applied special design, heat emission area is enlarged, the cooling is rapid, temperature control tolerance can be¡À1.
Main Technical Parameter:
Model SJP75/26 SJP90/26 SJP110/26 SJP120/26 SJP135/26
Motor power(KW) 45 75 110 132 160
Dia. of screw(mm) 75 90 110 120 135
Max rolling speed(rpm) 45 45 45 45 45
L/D 26 26 26 26 26
Max output(kg/h) 350 460 680 850 1100
Weight(kg) 4100 4700 6500 7500 8400
