Specifications
We have made many machine lines for Chinese and Overseas customers,with high quality and competitive price
Specifications
SJ single screw extruder:
conical double screw extruder which is suitable for produce the pvc pipe and pvc profile and pvc board ....etc
conical double screw extruder
Conical Double Screw Extruder
Funcitions and Construction:
The series Estruders with appropriate screws,dies and other auxiliaries can directly convert thermoplastic especial UPVC powder into Pipe, plate sheet, film and profile, and also Provide function of modifying and Pelleting.
The extruders are derived by D.C motor with a thruster to steeples regulate. It is also equipped with the over-load protection and stoppage alarming system. The screw's core and the outside of barrel is cooled by circulation of oil,it include vacuum venting and forced feeding.
Main Technical parameter:
Mode |
Screws |
Effective length |
|
Main motor power(kw) |
Heating Power |
Extrusion output(kg/h) |
Weight(kg) |
Centre height |
SJSZ51 |
51/105 |
1070 |
2-32 |
18.5 |
12.1 |
50-150 |
2500 |
1000 |
SJSZ55 |
55/113 |
1200 |
1-40 |
30 |
18 |
60-180 |
2500 |
1000 |
SJSZ65 |
65/138 |
1440 |
1-35 |
37 |
24 |
60-300 |
3500 |
1000 |
SJSZ80 |
80/155 |
1800 |
1-37 |
55 |
35 |
100-400 |
4000 |
1000 |
SJSZ92 |
92/185 |
2500 |
1-33 |
90 |
50 |
200-800 |
5000 |
1100 |

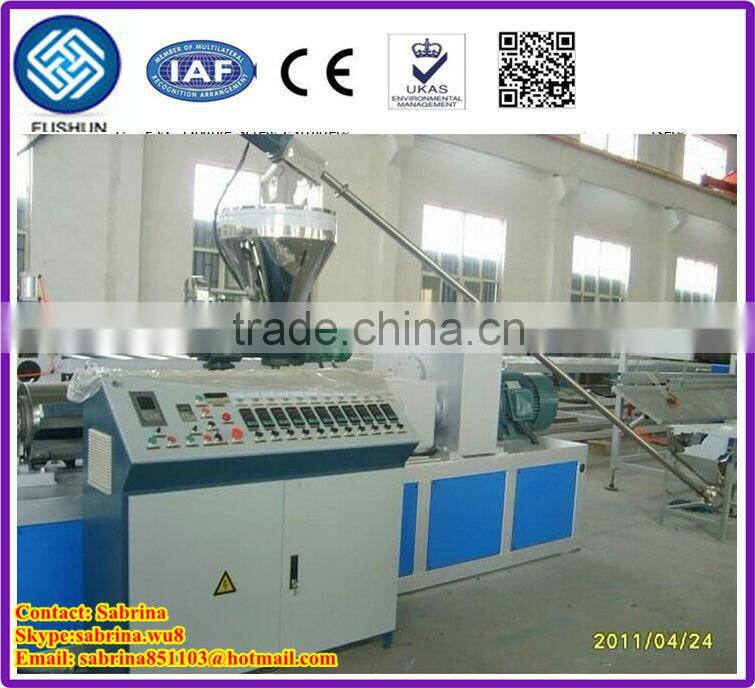

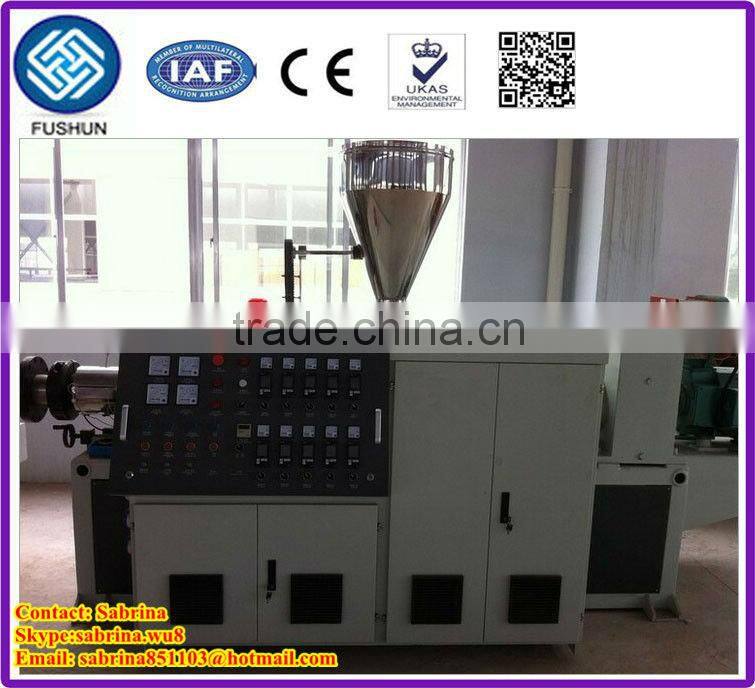

Double screw extruder Photoes
