Low Cost LCD operating High efficiency blue 10 kw solar system for home

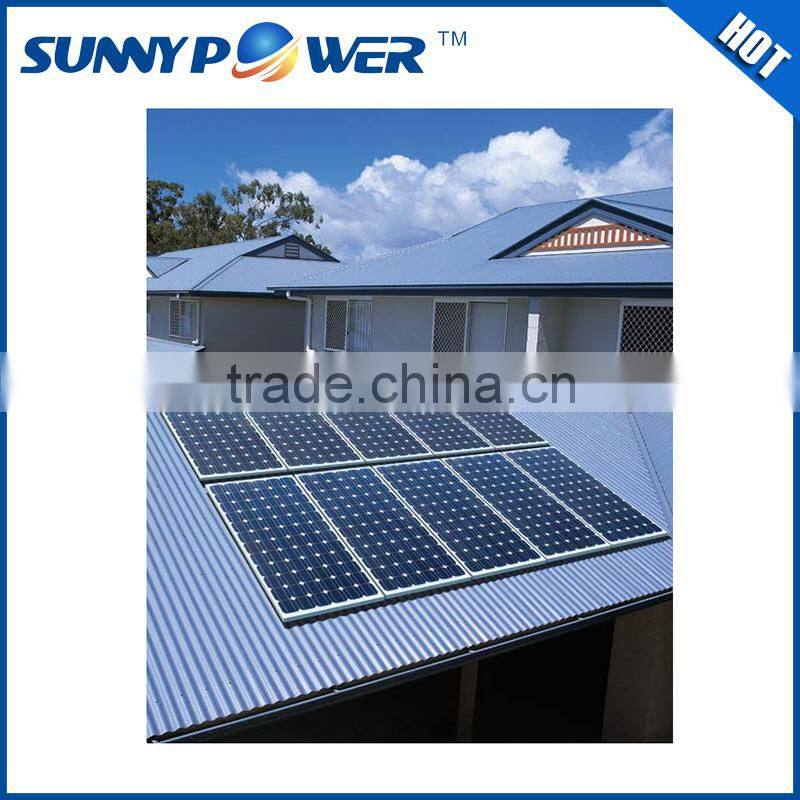

1. product picture
2. Design drawings
3.product introduction
| Technical data: | ||
| Item No. | SPS-10KW | |
| Capacity | 10KW | |
| System voltage | 240VDC | |
| Daily consumption | 25KWH | |
| Industrial Frequency Inverter and Controller All In One | ||
| Inverter | Output wave | Pure sine wave |
| Output voltage | AC240AC±5% | |
| Output frequency | 50HZ/60HZ | |
| Output Waveform | THDIAC< 3 % | |
| Overload ability | 120%,30 seconds | |
| Efficiency(TYP.) | ≥92% | |
| Controller | Maximum solar power | Ppv=12KWp |
| Charge output voltage | 220V | |
| Stop charging | 260VDC | |
| Charge recovery | 238VDC | |
| Battery | 2V 200AH*110pcs Gel or OPZV battery | 44,000WH |
|
Keep1rainy day and D.O.D 70% ,if rainy day little , battery capacity more,discharge less, extend life time | ||
| Solar panel | Pmax | 250W*36pcs |
| Vmp | 30V | |
| Imp | 8.3A | |
| Load reference: | |||||
| SPS-10KW solar home system | |||||
| loads name | specification | load's watt | qty | working hrs | Daily consumption |
| lighting | energy saving light | 11W | 8 | 8 | 704Wh |
| Fan | ceiling fan | 80W | 4 | 8 | 2560Wh |
| Computer | LCD displays | 200W | 2 | 8 | 3200Wh |
| printer | jet | 250W | 1 | 1 | 250Wh |
| fax machine | jet | 150W | 1 | 1 | 150Wh |
| refrigerator | 200L | 120W | 1 | 24 | 1200Wh |
| electric stove | 1000W | 1 | 1 | 1000Wh | |
| Rice cooker | 1000W | 1 | 1 | 1000Wh | |
| washing machine | 300W | 1 | 1 | 300Wh | |
| Microwave | 1500W | 1 | 1 | 1500Wh | |
| Air conditioner | 1.5P | 1500W | 1 | 12 | 10000Wh |
| Color TV | 32inch | 150W | 2 | 8 | 2400Wh |
| water pump | 200W | 1 | 1 | 200Wh | |
| satelite TV receiver /VCD |
25W | 1 | 8 | 200Wh | |
| TOTAL | 24664Wh | ||||
| Peak sunshine 4.5hr per day, keep 1 rainy days | |||||
| Item | Specification |
Q'ty (pcs or sets) |
||
|
10KW Solar Power System |
solar panel 250W/30V(SPM-250PB204) with cables ( 9panels in series,4groups in parallel) |
36 | ||
|
10KW power box,220VDC/240VAC,common LCD display,not touch display. |
1 | |||
| combiner box(lightning protection) with cables | 1 | |||
| battery steel bracket and Connect the copper/wire | 1 | |||
| solar panel steel alloy bracket ( Ground installation ) | 1 | |||
|
Cables : solar combiner box to power box 40M battery to power box 3M |
1 | |||
| GEL battery 2V 200Ah | 110 | |||
Warranty
- Solar panel: 5years for replacement. 25years lifespan (power not less than 90% in 10years and 80% in 25 years.
- Inverter and controller : 2years warranty. About 20 years lifespan.
- Battery: AGM 2years warranty,lifespan 5years . GEL 3years warranty,lifespan 8years.
- Brackets : 5years. Lifespan around 20years.
- Othe accessories: 1year
Features
- True sine wave output (THD<3%)
- Advanced microprocessor
- LCD operating system
- High efficiency (>90%)
- Diesel generator trigger
- Circuit Protection
- Maintenance Easy, Low Cost
- IP Level:IP54
4.Install reference
