Blue high efficiency off-grid 3kw solar system cheap solar energy system
1. Product picture

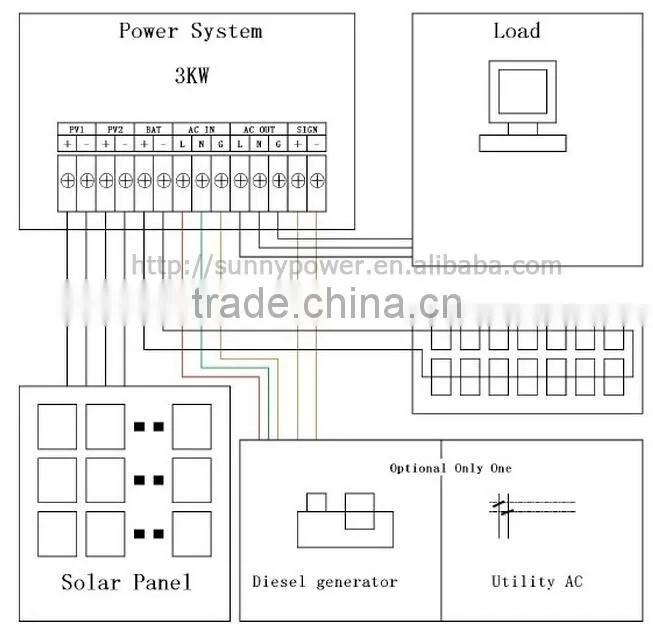

2. Design drawings
3.Product introduction
| Technical data: | ||
| Item No. | SPS-3KW | |
| Capacity | 3KW | |
| System voltage | 48VDC | |
| Daily consumption | 8KWH | |
| Industrial Frequency Inverter and Controller All In One | ||
| Inverter | Output wave | Pure sine wave |
| Output voltage | AC110/220VAC±5% | |
| Output frequency | 50HZ/60HZ | |
| Output Waveform | THDIAC< 3 % | |
| Overload ability | 120%,30 seconds | |
| Efficiency(TYP.) | ≥85% | |
| Controller | Maximum solar power | Ppv=3600Wp |
| Charge output voltage | 48V | |
| Stop charging | 68VDC | |
| Charge recovery | 64VDC | |
| Battery | 12V 225AH*8pcs Gel or AGM battery | 21600WH |
|
Keep1rainy day and D.O.D Discharge 70% ,if rainy day little , battery capacity more,discharge less, extend life time | ||
| Solar panel | Pmax | 250W*12pcs |
| Vmp | 30V | |
| Imp | 8.3A | |
| Load reference: | |||||
| SPS-3KW solar home system | |||||
| loads name | specification | load's watt | qty | working hrs | Daily consumption WH |
| lighting | energy saving light | 11W | 6 | 8 | 528 |
| Computer | LCD displays | 150W | 2 | 8 | 2400 |
| Air conditioner | 1P | 750W | 1 | 10 | 3800 |
| printer | jet | 250W | 1 | 1 | 250 |
| fax machine | jet | 150W | 1 | 1 | 150 |
| refrigerator | 50L | 70W | 1 | 24 | 900 |
| TOTAL | 8028 | ||||
| Peak sunshine 4.5hr per day, keep 1 rainy days | |||||
| 3KW solar system Solution | ||||
| Item | Specification |
Q'ty (pcs or sets) |
||
|
3KW Solar Power System |
solar panel 250W/30V(SPM-250PB204) with cables | 12 | ||
| 3KW power box,48VDC/220AC | 1 | |||
|
combiner box(lightning protection) with cables 6input 1output |
1 | |||
| battery steel bracket and Connect the copper/wire | 1 | |||
| solar panel steel metal alloy bracket groud installation | 1 | |||
|
Cables : 40m 16mm2 cables,50m 2.5mm2 cabels,MC-4 connectors 6pairs. solar combiner box to power box 20M battery to power box 3M |
1
|
|||
| Option | GEL battery 12V 225Ah | 8 | ||
| AGM battery 12V 225Ah | 8 | |||
|
Remarks: for one 20GP container,can have 10sets 3kw system , each panel with 1m cable and MC-4 connectors | ||||
Warranty
- Solar panel: 5years for replacement. 25years lifespan (power not less than 90% in 10years and 80% in 25 years.
- Inverter and controller : 2years warranty. About 20 years lifespan.
- Battery: AGM 2years warranty,lifespan 5years . GEL 3years warranty,lifespan 8years.
- Brackets : 5years. Lifespan around 20years.
- Othe accessories: 1year

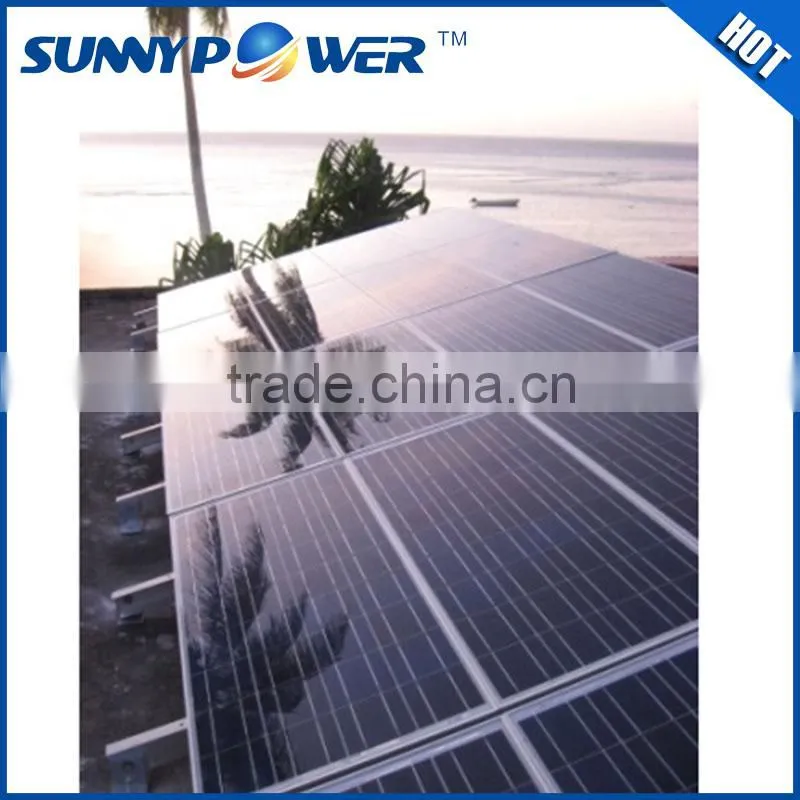

4.Install reference
