Off-grid solar home system 1kw,2kw,3kw,4kw,5kw
1. The product picture of solar system
2. Design drawings
3.Product introduction
| Technical data: | ||
| Item No. | SPS-3KW | |
| Capacity | 3KW | |
| System voltage | 48VDC | |
| Daily consumption | 8KWH | |
| Industrial Frequency Inverter and Controller All In One | ||
| Inverter | Output wave | Pure sine wave |
| Output voltage | AC110/220VAC±5% | |
| Output frequency | 50HZ/60HZ | |
| Output Waveform | THDIAC< 3 % | |
| Overload ability | 120%,30 seconds | |
| Efficiency(TYP.) | ≥85% | |
| Controller | Maximum solar power | Ppv=3600Wp |
| Charge output voltage | 48V | |
| Stop charging | 68VDC | |
| Charge recovery | 64VDC | |
| Battery | 12V 225AH*8pcs Gel or AGM battery | 21600WH |
|
Keep1rainy day and D.O.D Discharge 70% ,if rainy day little , battery capacity more,discharge less, extend life time | ||
| Solar panel | Pmax | 250W*12pcs |
| Vmp | 30V | |
| Imp | 8.3A | |
| Technical data | ||
| Item No. | SPS-5KW | |
| Capacity | 5KW | |
| System voltage | 96VDC | |
| Daily consumption | 11KWH | |
| Industrial Frequency Inverter and Controller All In One | ||
| Inverter | Output wave | Pure sine wave |
| Output voltage | AC220V/380VAC±5% | |
| Output frequency | 50HZ/60HZ | |
| Output Waveform | THDIAC< 3 % | |
| Overload ability | 120%,30 seconds | |
| Efficiency(TYP.) | ≥92% | |
| Controller | Maximum solar power | Ppv=12KWp |
| Charge output voltage | 240V | |
| Stop charging | 290VDC | |
| Charge recovery | 264±6VDC | |
| Battery | 12V 260AH*8pcs Gel or OPZV battery | 24960WH |
|
Keep1rainy day and D.O.D 70% ,if rainy day little , battery capacity more,discharge less, extend life time | ||
| Solar panel | Pmax | 250W*20pcs |
| Vmp | 30V | |
| Imp | 8.3A | |
Warranty
- Solar panel: 5years for replacement. 25years lifespan (power not less than 90% in 10years and 80% in 25 years.
- Inverter and controller : 2years warranty. About 20 years lifespan.
- Battery: AGM 2years warranty,lifespan 5years . GEL 3years warranty,lifespan 8years.
- Brackets : 5years. Lifespan around 20years.
- Othe accessories: 1year

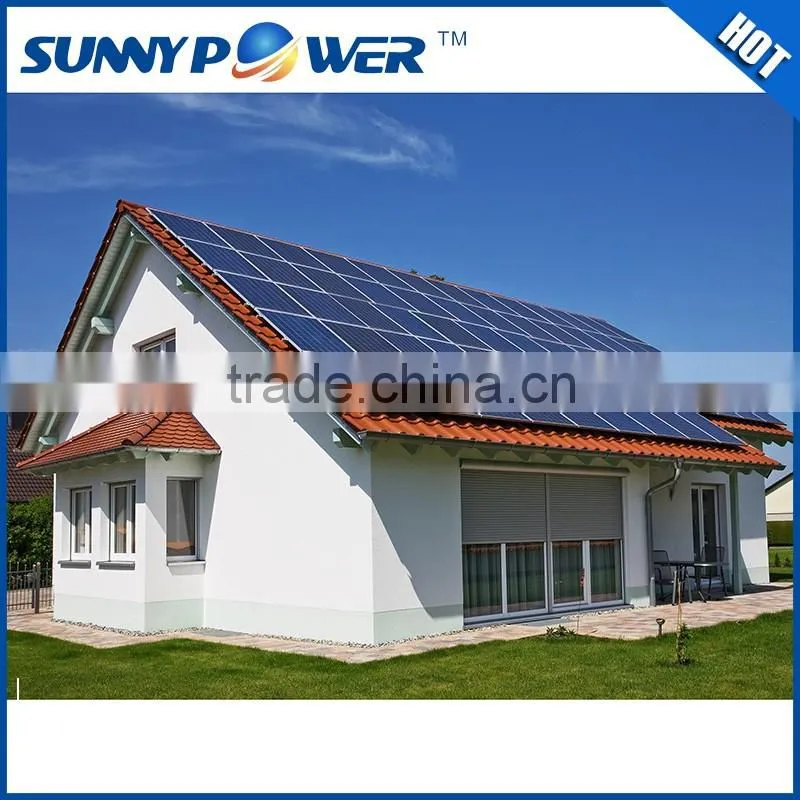

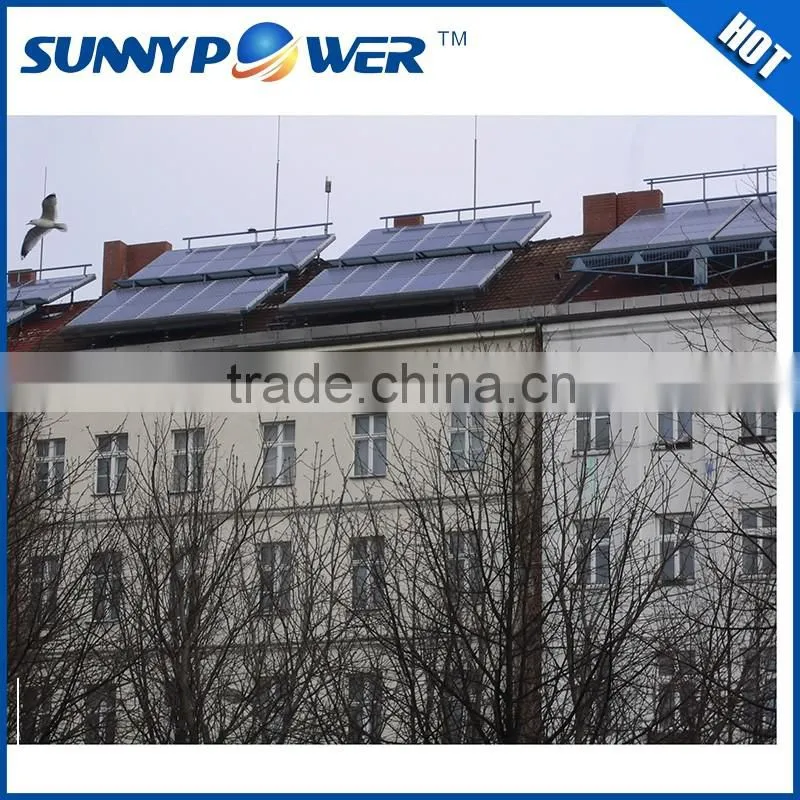

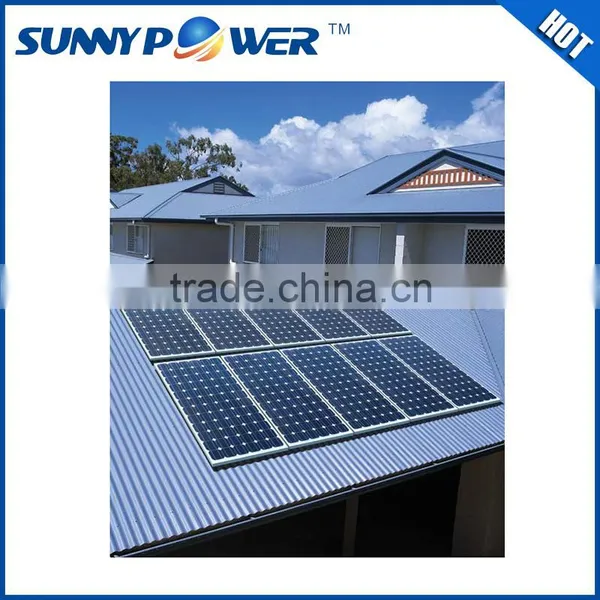

4.Install reference
5. More products pls click below
|
|
|
|
|
|
Company Information
FAQ
1. Q:What is your brand of the solar material solar cells?
A:We import the solar cells from TAIWAN MOTECH,the top 5 cells in the world,the
cells quality directly determine the quality of the solar advertising panel.
2. Q:Are u manufacture or trading company?
A:We are manufacture founded 10years.
3. Q:How many employees in your company?
A:We have about 100~150 employees,including office staff,R&D engineers,production line workers.
4. Q:What is ur certification?
A:Our product are approved by ISO, CE, VDE IEC, MCS, CSA-UL, CEC.
5. Q:Your main export market?
A:Our main market is: Asia,Africa,Mid-East, Oceania and North America
6. Q:What is ur main product?
A:Our main product: solar advertising panel, portable solar lighting system,intergrated solar home system 100W~1000W,off grid solar home system 1kw~5kw,micro solar power system 5kw~300kw,grid tie solar power system,solar street LED light system,solar fan,solar refrigerator,solar water pump and so on.
7. Q:What is your product technical support?
A:We makes progress in the field of new energy application, product R&D, technical innovation, system integration, etc. by responding to the national strategy of new energy development and adhering to “development & innovation “management concepts.Our
company partner Shanghai Academy of Sciences, Hubei Technology University and Huazhong Science & Technology University, to provide product and service for
clean energy.
