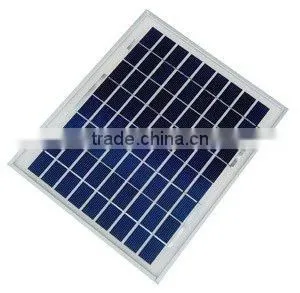

SPM10-P Solar Panel With CE and TUV Certificate

Negotiable MOQ: 100 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

China

Material:

Polycrystalline Silicon

Sunny Power & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Material Polycrystalline Silicon

Specifications

1. Using high quality Motech solar cell
2. Sell at real power
3. All solar panels are with CE, some with TUV certificate.

		SPM10-P
SPM10-P Series Photovoltaic Modules
36pcs 156x156mm poly-crystalline silicon cells

The SPM10-P series modules consists of 36pcs 156 x 156mm
poly-crystalline silicon solar cell with high efficiency,
high transmission rate and low iron tempered glass, anti-
aging EVAand high frame resistant TPT to laminate,products
have high efficiency, long life, easy installation, high
high wind and hail impact resistance,etc.advantages.

	Module					SPM10-P
Encapsulation					Glass/EVA/Cells/EVA/TPT
Size and Number of cells					156x156mm 36/4x9pcs
Maximuum power(Pm)			W	9	9.5	10	11	11.5
Tolerance						±5%
Voltage at max power(Vmp)			V	17.2	17.2	17.2	17.2	17.2
Current at max power(Imp)			A	0.52	0.55	0.58	0.63	0.66
Open circuit voltage (Voc)			V	21.6	21.6	21.6	21.6	21.6
Short circuit current(Isc)			A	0.57	0.6	0.63	0.69	0.72
Max.syst.Open voltage			V		715v
Diodes						none
Dimension			mm			28533525
Weight (kg)						1.3
Operate Temp.scope						-40/+85
Relative humidity						0 to 100%
Resistances			227g stell ball fall down from 1m height and 60m/s wind
Warranty			Pm is not less than 90% in 10years and 80% in 25years

Test conditions: @STC 1000W/, AM1.5, 25
Product Standards: Module certified to CE
