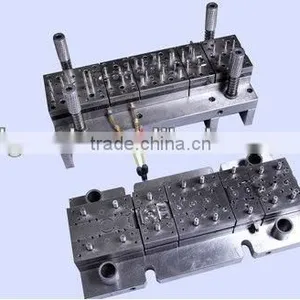

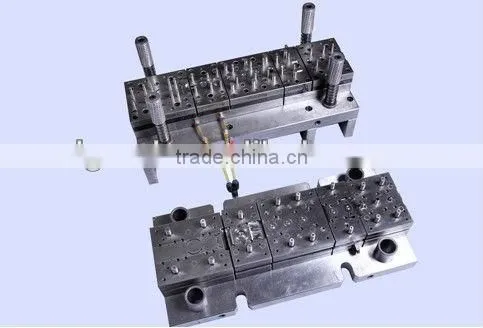

Precision stamping die/mould

Specifications

custom progressive stamping mould
Delivery timely
Good qulity
material : SAPH440



  About product:



Custom progressive stamping die/mould

Material:              Metal

Surface Finish:    Degreasing
Part Request:     There are not indentation, scratches, oxidation on the surface, 120h salt spray without rust .



Mould Info:





 Lead Time:                 40 days

 Mould Type:              Progressive die

 Mould material:       SKD11

 Design software:     Auto CAD, Pro/e, UG.





 Hardware Die Processing Flow Chart:



1. Mould design → 2. Rough finish→ 3.Heat treatment→ 4. Wire cutting→ 5. CNC machining → 6. EDM machining →7. Mould assembly → 8. Mould trial run until approval





 Hardware Product Processing Flow Chart:



  stamping--- tapping --plating --- checking --- packing



The main processing production equipments and the business scope as follows :



1. Different size of CNC high speed cutting processing center and CNC high speed milling machining center.



2. Turning, milling, drilling holes, some high precision and more complex curved surface as customized.



3. Different kinds of wire -cutting machine and different size of EDM machine.



4. Wire -cutting machine from Japan and Switzerland are mainly used to process template and mould accessories.



5. Grinding (center grinding and centerless grinding )for precision inner and outer diameter, grinders and deep hole drilling machine work coordinately to process the large moulds.



6. We have 30 sets plastic injection machine and 30 sets press machine.



7. We have 14 years’ processing experience and can produce different kinds of plastic and hardware products, mould and mould accessories.







Dongguan SML Precision Mould Co.,Ltd

NO.178 XinYaZhou Industrial Area,TangXia Town ,

Dongguan City,Guangdong Province,P.R.China

Tel: +86 769 8219 1036  ext: 607
Fax: +86 769 8213 3211
Mobile: +86 1800 2887396

SKYPE: SML Mould  hx-mould



 OUR FACTORY



















 EQUIPMENTS AND OFFICE
