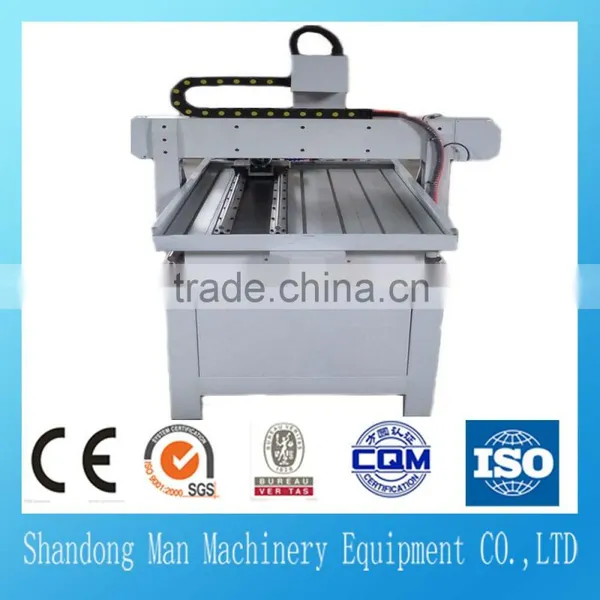

4040 mini medals engraving machine/engraving machine with cnc
Product Description
Technical Parameter |
|
|
|
TYPE |
400*400 |
||
X,Y Working Area |
400mm*400mm |
||
Z Working Area |
≥80mm |
||
Max. Running Speed |
5-6m/min |
||
Max.Working Speed |
3-4m/min |
||
Max. feeding height |
100mm |
||
Positioning Precision |
0.03mm |
||
Repeating Positioning Precision |
0.02mm |
||
Operation Command |
G Code*.u00*.mmg*.plt |
||
Operation System |
NC Studio (PCI card control) |
||
Spindle RMP |
0-24000rpm/min |
||
Collet |
3.175mm, 4 & 6mm |
||
Power of Spindle Motor |
1.5kw/2.2kw Water-cooling |
||
Voltage |
AC220V/50HZ, AC110V/60HZ |
||
X, Y and Z axis Driver |
6Amp Stepper Motor |
||
Drive Type |
Stepper Motor |
||
Power (Without the spindle power) |
400w |
||
Software Running Environment |
Windows xp/Windows7/8 |
||
CAD/CAM Software with machine |
UcanCam V8 / Type3 (Free of Charge) |
||
Compatible Software |
Type3, Artcam, Castmate, etc. |
||
Machine Dimension |
1300mm * 1100mm * 1500mm |
||
Package Dimension |
1550 * 1215mm * 1770mm |
||
Optional Device |
Spray Cooling System |
||
Dust Collecting System | |||
1.5KW/2.2KW water-cooling spindle motor | |||
DSP Hand Held Controller--Offline Control | |||
Z axis Tool Sensor | |||
♦With hard steel structure, fit for hard wood working, like cutting and engraving on rosewood for furniture, indoor decoration.
♦We use the best quality parts for the CNC routers.
♦The machine’s body is strong, rigid, high precision, reliable and durable.
♦Imported high precision ball screw gap, smooth movement, to ensure that the machine tools high-precision.

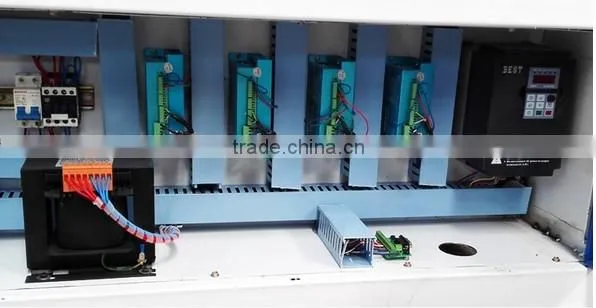

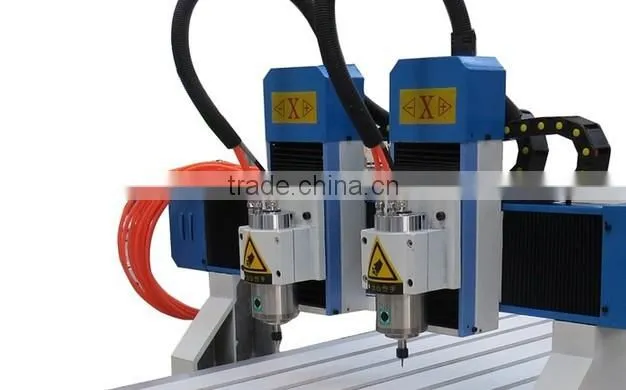

4040 mini medals engraving machine Main parts
Applicable industry and materials
Wood processing: processing of various furniture such as door, window, cabinet, craft, wood door, wood screen and so on.
Advertisement: engraving and cutting MDF,acrylic,PVC,various labels and nameplate.
Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
Wood, aluminium board, plastic, density board, wave board, PVC, acrylic, crystal, light marble ,stainless steel , aluminum , cooper
engraving machine with cnc Sample
After-sale Service:
1. our technicans will provide on-site service to customers in china. We will supply the whold day online service to foreign customer. According to foreign customer's requirement, we will arrange technicans go abord to install or maintenance the machine
2. within the warranty period and the machine parts damage under normal using condition, we will offer new ones for free for replacement
3. We will offer software upgrade for free for life
4. after the expiry of warranty, we can renewal of the contract, which can enjoy the same service that during the waranty period
5. our company will research the staffs service attitude aperiodically to improve the service satisfaction
Packaging
Company Information
Shandong Mann Machinery Co. Ltd. is CNC equipment manufacturers a set design, production and sales. High quality products, professional sales and after-sales team, won the domestic and foreign customers alike. Company main products for CNC engraving machine, laser engraving machine and other general machinery. Suitable for wood, advertising, stone, metal, crafts and other materials, involving a number of industries. Machines are exported to the United States, Germany, Canada, Australia, Russia, Southeast Asia and other countries and regions, more than 70. The company to the quality of survival, to serve the development of high quality is our eternal pursuit. Advanced manufacturing technology, large-scale production, excellent product quality, professional user training, perfect after-sales service, is to ensure that the basis of user satisfaction.
