1325 lathe cnc router wood / 3.0kw spindle cnc router price
Product Description
NO |
Description |
Parameter |
1 |
X,Y,Z Working Area |
1500x3000x200mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
4 |
X,Y,Z Repositioning Accuracy |
±0.02mm |
5 |
Table Surface |
Vacuum and T-slot Combined |
6 |
Frame |
Heavy steel Tube structure |
7 |
X, Y Structure |
Rack and Pinion Drive, HIVIN Rail Linear Bearings |
8 |
Z Structure |
HIWIN Rail Linear Bearings and Ball Screw |
9 |
Max. Power Consumption |
(Without Spindle) 4.5kw |
10 |
Max. Rapid Travel Rate |
45000mm/min |
11 |
Max. Working Speed |
30000mm/min |
12 |
Spindle Power |
9KW HSD |
13 |
Spindle Speed |
0-24000RPM |
14 |
Drive Motors |
Siemens AC Servo |
15 |
Working Voltage |
AC 380V/50/60Hz,3PH |
16 |
Command Language |
G Code |
17 |
Operating System |
Siemens controller system |
18 |
Computer Interface |
Ethernet |
19 |
Flash Memory |
256M |
20 |
Collet |
ER32 |
21 |
X,Y Resolution |
<0.03mm |
22 |
Software Compatibility |
Art cam software |
23 |
Running Environment Temperature |
0 - 45 Centigrade |
24 |
Relative Humidity |
30% - 75% |
25 |
Packing Size |
3700X2280X1900mm |

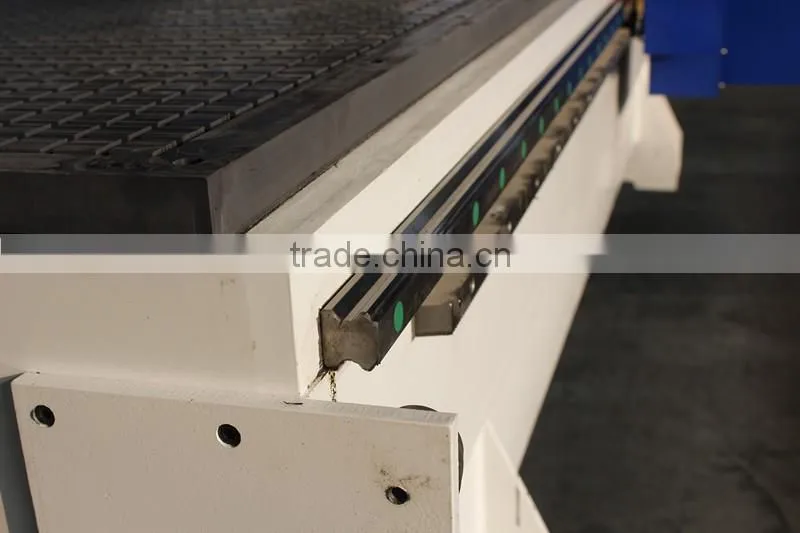

cnc router 1325 Main parts

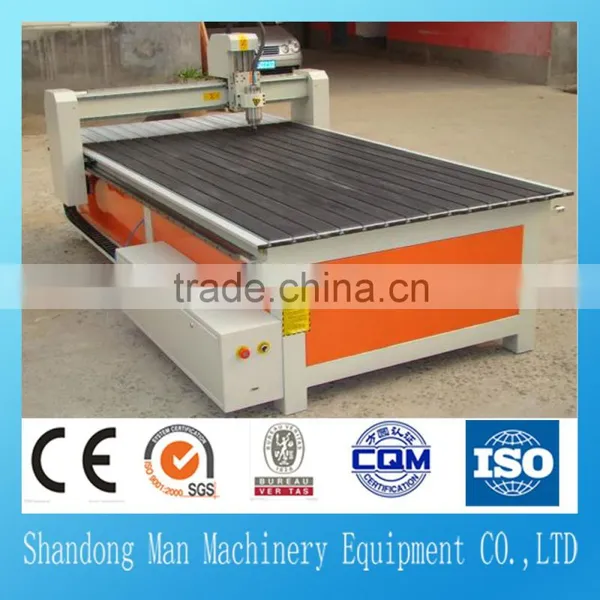

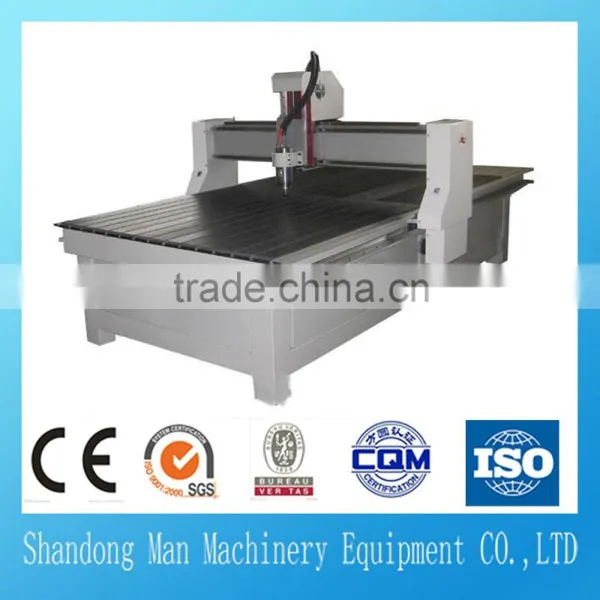

1325 lathe cnc router wood / 3.0kw spindle cnc router price Sample
about our services
1. our technicans will provide on-site service to customers in china.
2. within the warranty period and the machine parts damage under normal using condition, we will offer new ones for free for replacement
3. We will offer software upgrade for free for life
4. after the expiry of warranty, we can renewal of the contract, which can enjoy the same service that during the waranty period
5. our company will research the staffs service attitude aperiodically to improve the service satisfaction
Packaging & Shipping
Packing:
1: Plastic film + plywood case ;
Accessories and manual book are putted in handbag
2: According customer's requirement
Shipping:
By express (Fedex, DHL,TNT, UPS etc.) / by sea
Company Information
Shandong Mann Machinery Co. Ltd. is CNC equipment manufacturers a set design, production and sales. High quality products, professional sales and after-sales team, won the domestic and foreign customers alike. Company main products for CNC engraving machine, laser engraving machine and other general machinery. Suitable for wood, advertising, stone, metal, crafts and other materials, involving a number of industries. Machines are exported to the United States, Germany, Canada, Australia, Russia, Southeast Asia and other countries and regions, more than 70. The company to the quality of survival, to serve the development of high quality is our eternal pursuit. Advanced manufacturing technology, large-scale production, excellent product quality, professional user training, perfect after-sales service, is to ensure that the basis of user satisfaction.
