PCB Insulations Tape And Kapton Tape Film Die Cutting Machine
US$ 8,000 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
CHUANRI
Model Number:
MQ-320BIV
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PCB Insulations Tape And DUPONT Tape Film Die Cutter MachineUS$ 8,000 - 30,000MOQ: 1 Set -
Die Cutter For Adhesive TapeUS$ 10,000 - 20,000MOQ: 1 Set
-
Die Cut Double Sided Adhesive Foam From Roll To Sheet With PunchingUS$ 8,000 - 20,000MOQ: 1 Set
-
Velcro Self Adhesive Back Film Half Cut Through Cut Die Cutting MachineUS$ 8,000 - 15,000MOQ: 1 Set
-
Automatic Gaskets Die Cutter Making Machine For AutomobilesUS$ 8,000 - 22,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
CHUANRI
Model Number
MQ-320BIV
Condition
New
After-sales Service Provided
Engineers available to service machinery overseas
PCB Insulations Tape And Kapton Tape Film Die Cutting Machine
Main Parameters:
Model |
320BIV |
Max Feeding Width ( mm ) |
320 |
Cutting Area ( mm ) |
300*300 |
Cutting Speed ( Cuts/Min) |
30-170 |
Position Accuracy ( mm ) |
±0.10 |
Power of Main Engine ( kw ) |
2.2 |
Size ( mm ) |
2700*1250*1550 |
Voltage (V ) |
220 |
Summary:
- 320mm and 420mm max feeding width, max die cut area is 300*300mm and 400*400mm.
- Machine is with two sets servo motors. It is ok for both kiss cut and through cut.
- Whole set includes unwinding laminating equipment, host, rewind equipment.

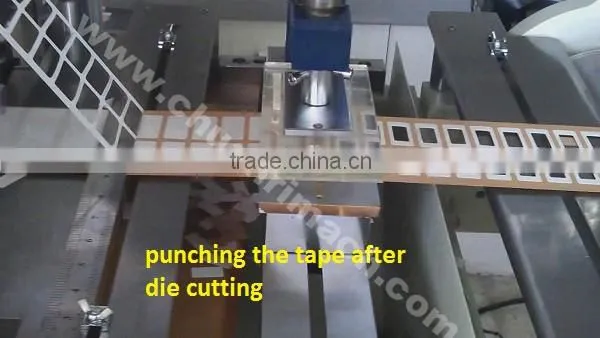

- Host can attach with punch equipment.
- If needed, machine can attach with sensor. It is ok for die cut blank and printed material.
- Anti static bard is also optional.
- Suitable for die cut adhesive tapes, labels, IML, gasket, foam tape, cap liner, Conductive tape, Insulation tape etc.
