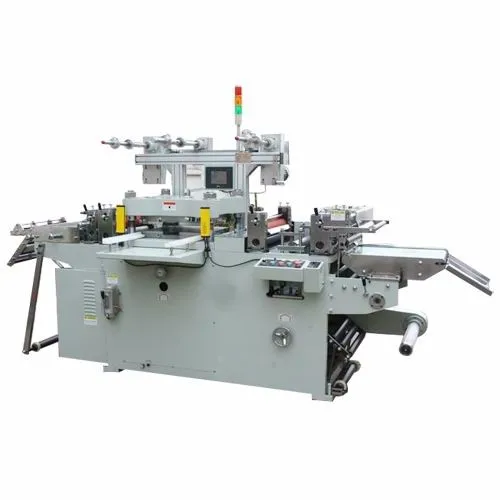

Adhesive Tape Kiss Cutting Flat-bed Machine

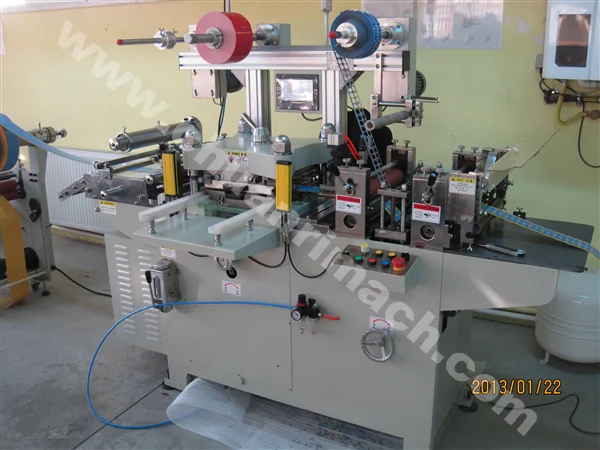

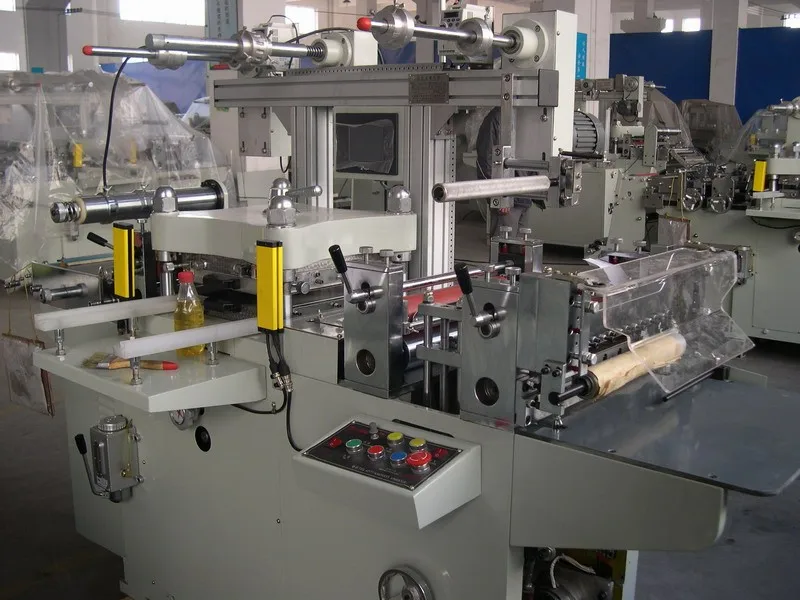

Adhesive Tape Kiss Cutting Flat-bed Machine photo-1
Adhesive Tape Kiss Cutting Flat-bed Machine photo-2
Adhesive Tape Kiss Cutting Flat-bed Machine photo-3
Adhesive Tape Kiss Cutting Flat-bed Machine photo-4
Adhesive Tape Kiss Cutting Flat-bed Machine photo-5
Adhesive Tape Kiss Cutting Flat-bed Machine photo-6
US$ 20 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Tape cutting machine
Automatic Grade:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, Tape cutting machine
Automatic Grade Automatic
Place of Origin Jiangsu, China
Brand Name CHUANRI
Model Number MQ-320BII
Voltage 380V/50Hz
Power(W) 4KW
Dimension(L*W*H) 2400*1300*1780mm
Weight 1700KGS
Certification CE Certificate
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

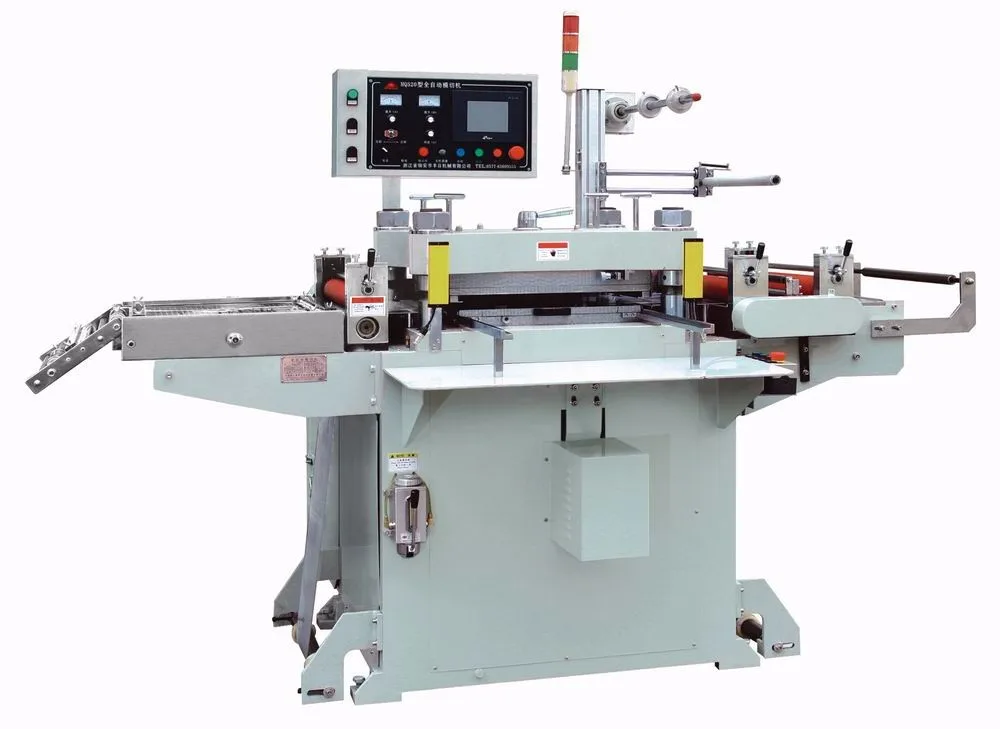

Kiss cutting machine

Product Application

Adhesive tape kiss cutting machine is suitable for kiss cutting Acrylic tapes, Silicon tapes, Kapton tapes, Conductive tapes, Insulation tapes, foil tapes etc with special shape. Cutting tool is needed. (23.8 mm wooden die or 8 mm plastic die).

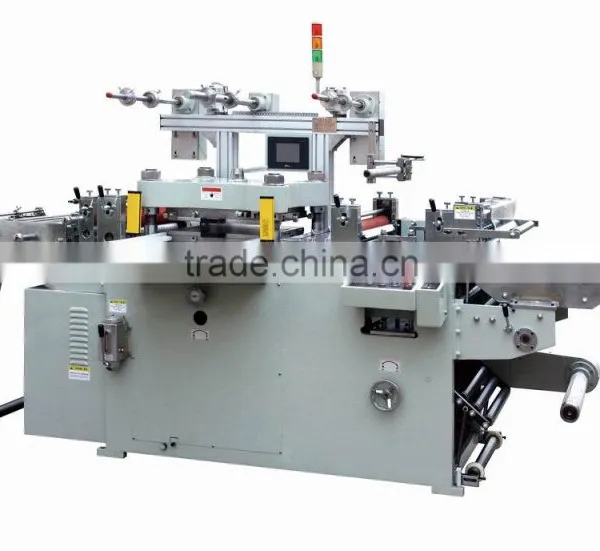

SPECIFICATIONS FOR MQ-320BII Automatic Die Cutting Machine

Three Parts

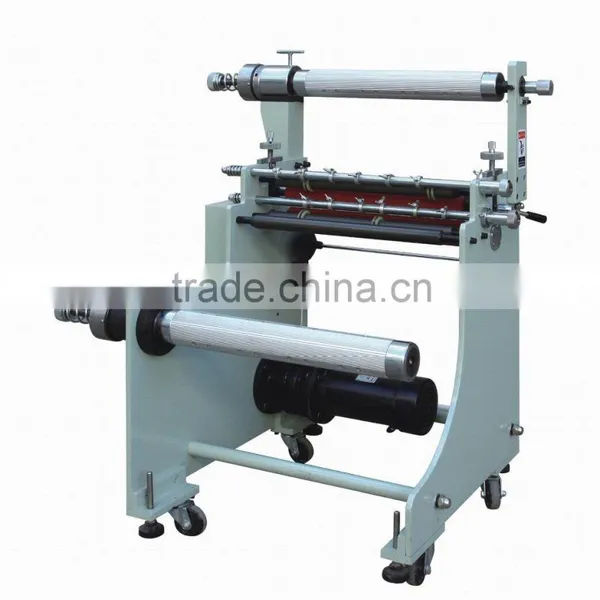

Unwind laminating equipmet
1 set
450 mm unwind diameter
Host
1 set
300*300/400*400 mm cutting area

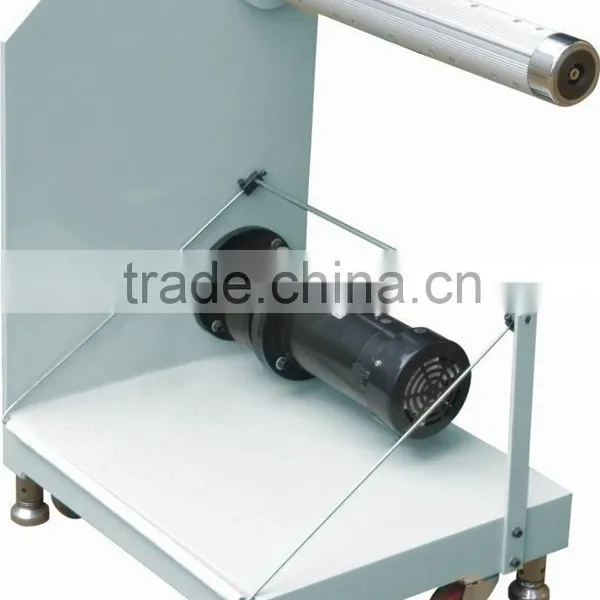

Rewind equipment
1 set
450 mm rewind diameter

Main performance parameters
Die cut speed
cuts/min
170/150 cuts/min
Die Cut Precision
mm
+/-0.1 mm
Die
mm
23.8/ 8
Final product
shape
sheet/ roll
After sales service
Warranty
Months
12
After Sales Service
Time
Whole lifetime of the machine

Main Features

1) Simple structure in linear type ,easy in installation and maintenance.

2) Adopting advanced world famous brand components for servo motor, servo driver, PLC, buttons etc.

3) Stable die cut pressure.

4) Strong body and whole casting, makes sure machine is with long lifetime.

5) Special shape of the cutter, help to avoid blocking.

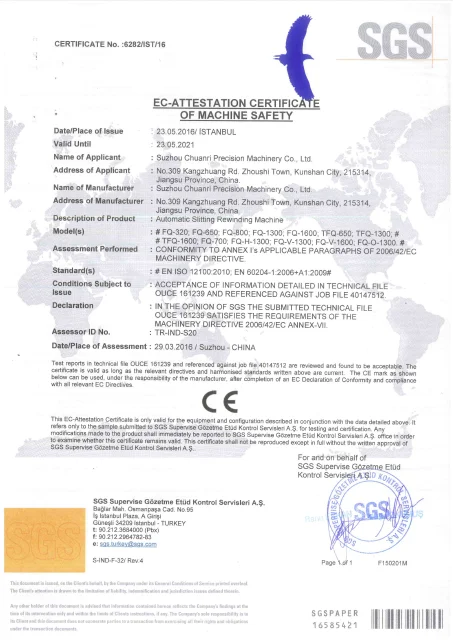

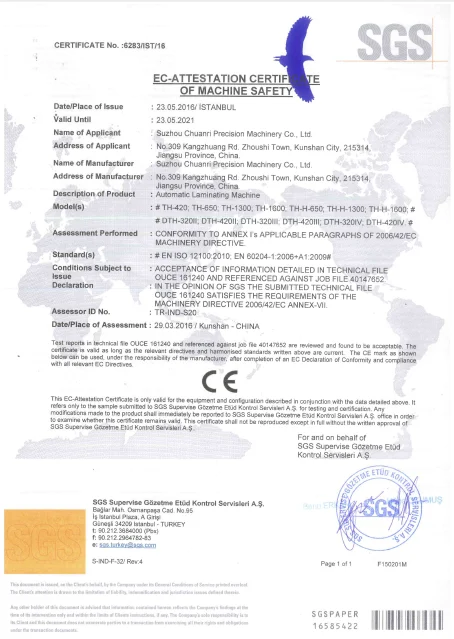

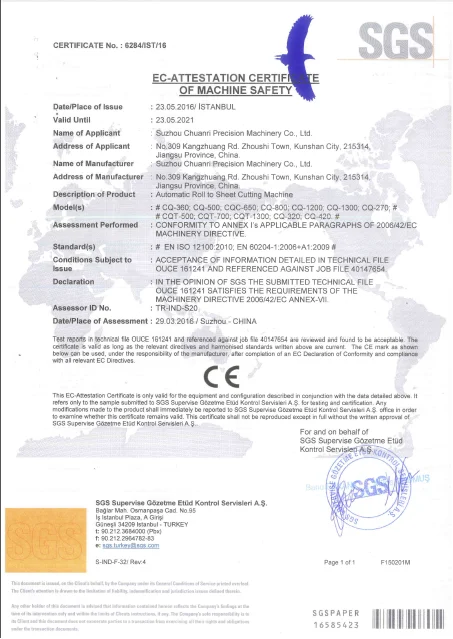

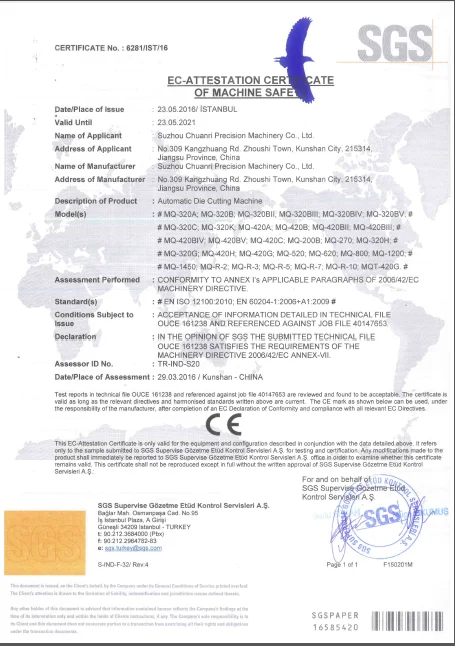

Certifications
Detailed Images

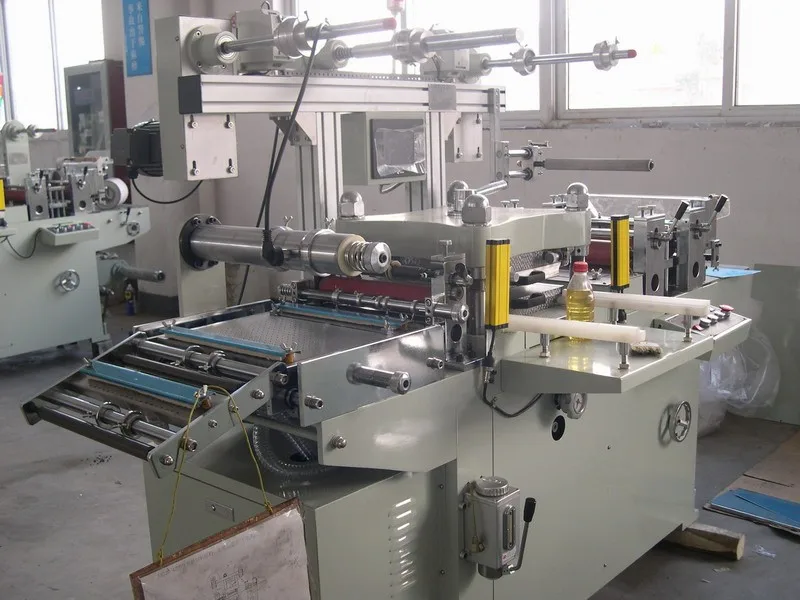

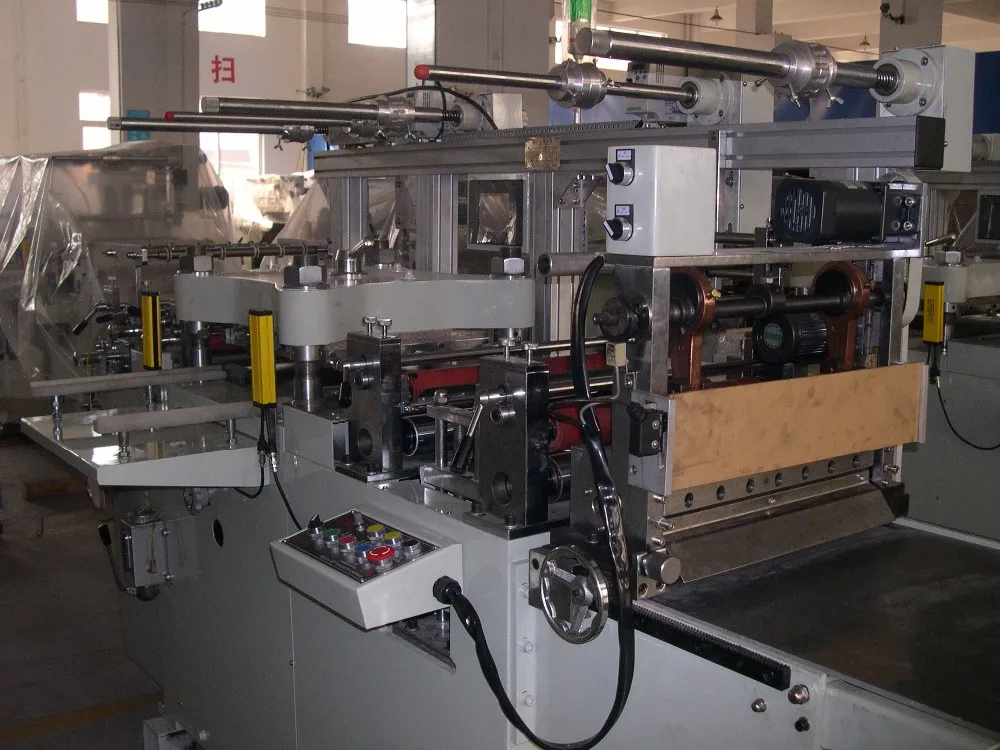

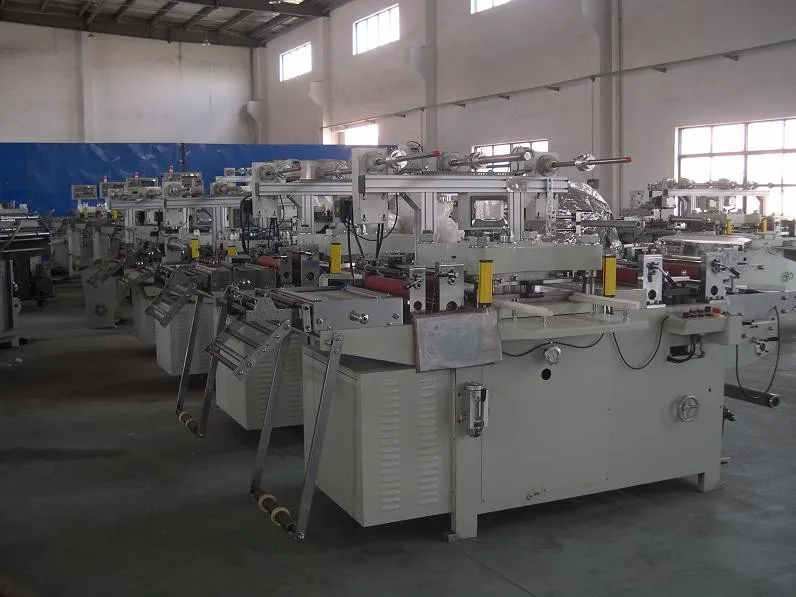

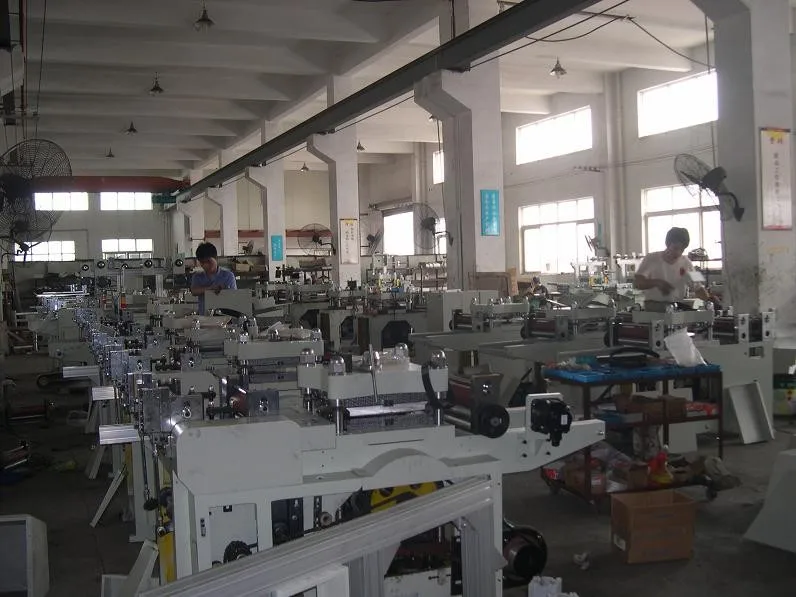

One corner of workshop

The productivity of the die cutting machine is about 300 sets/month


We have all spare parts in store. Delivery date is 10-15 days after receive the deposit.

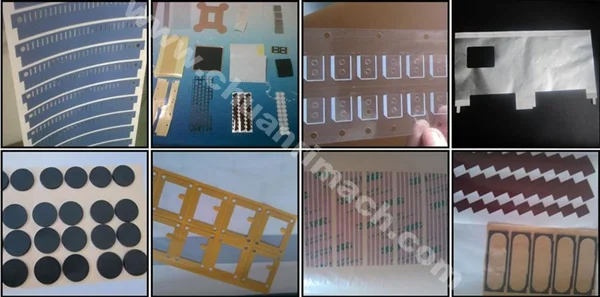

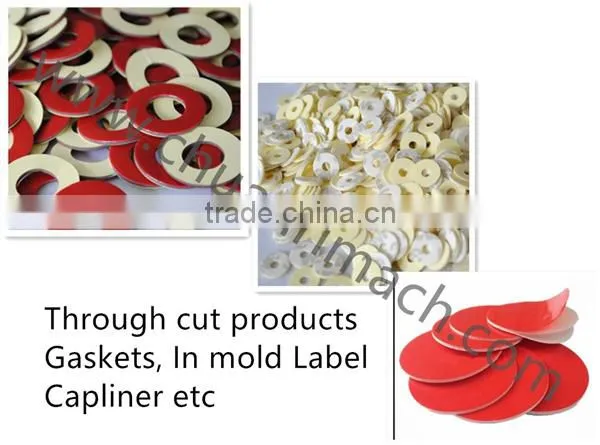

One corner of final products

All machines will be tested before delivery from our plant.

For each machine, we will offer some free spare parts.


If needed, we can arrange engineer for installation, or customer arrange people to learn the operation in our plant.


Actually, operate of machine isn't complicate.

Machine Parts

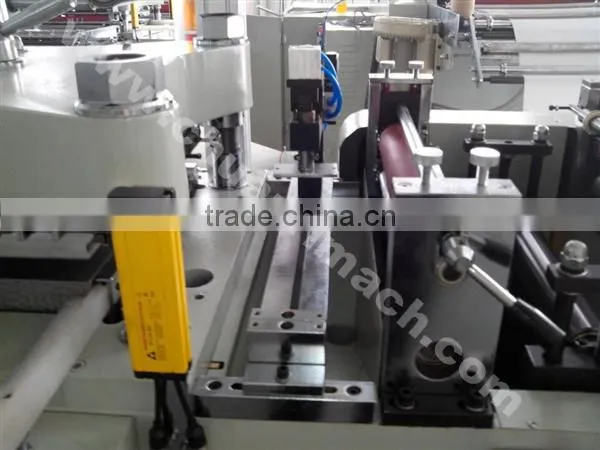

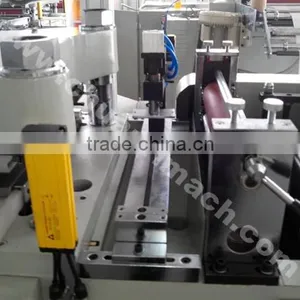

Name: Vacuum
Function: Avoid material moves left or right.
The die cutting machine is with vacuum, and quite a lot jigs for fix position of the material.


With such parts, material can feed in a straight line.

Main Features

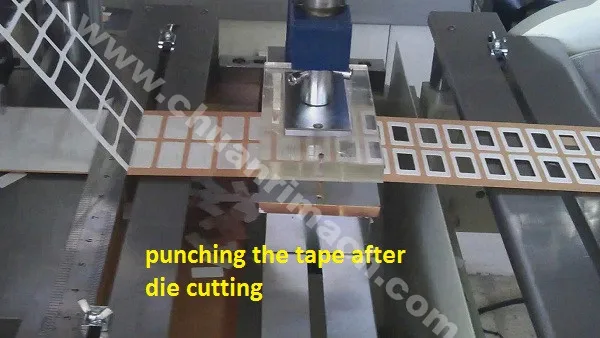

Name: Cutter
Structure: Special structure for avoid block

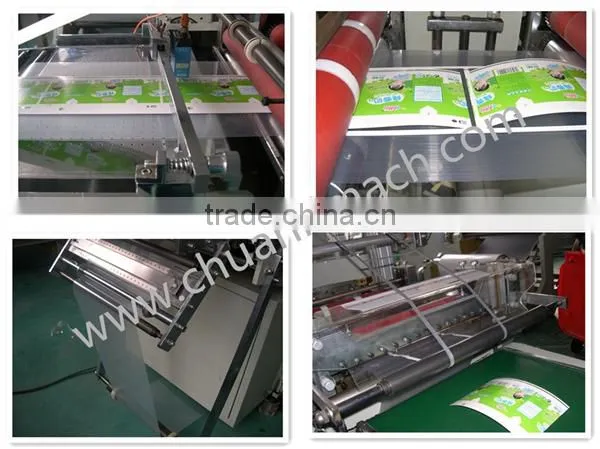

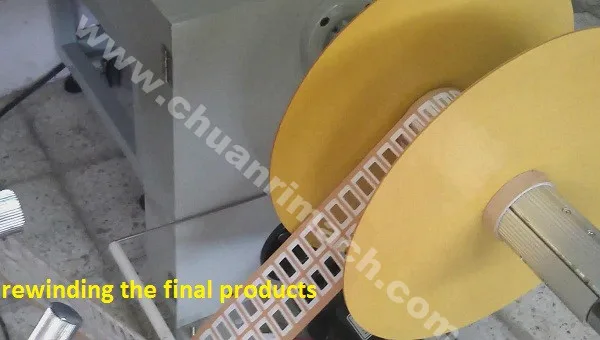

Machine is with sheeter, also with rewind equipment.

In this case, final products can be in roll, also can be

in sheets.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Installation
If needed, we can offer.
Working Aim
Customers' concern is our concern.



Delivery
Normally, for many sets machine, we will as container to loading the machines in our plant.

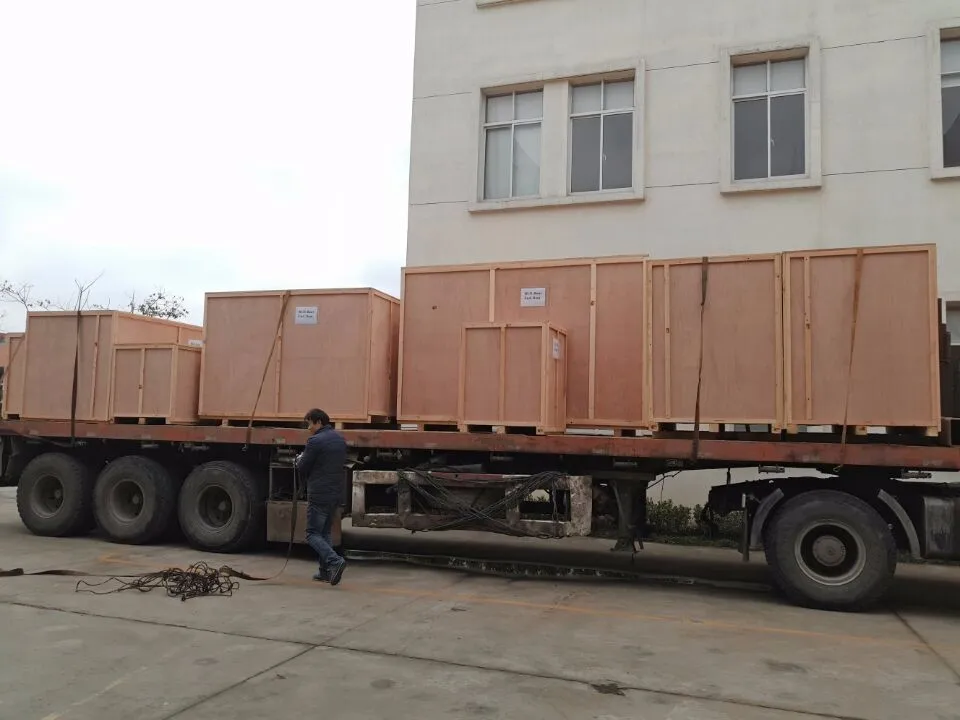

This time, due to near the holiday, container is very less. But customer need machines urgent, so we send machines buy truck. To make sure machine can catch earlier shipment.
Packaging
Size
2400*1300*1780 mm (L*W*H)
Weight
1.7 T



Packaging Details

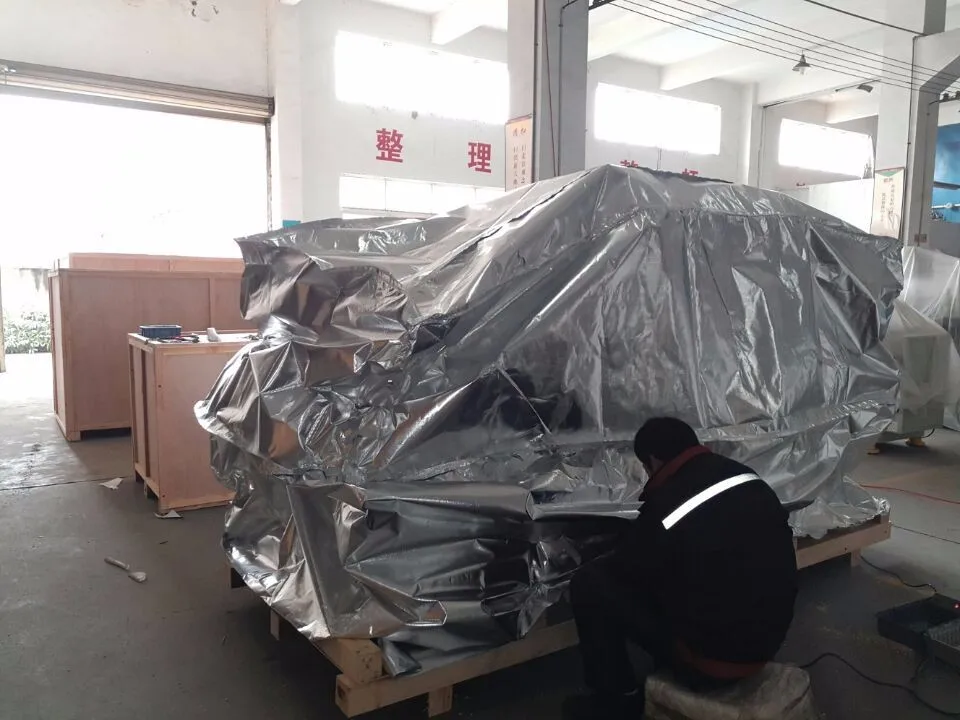

Inside is Aluminum vacuum package, avoid rusty.
Outside, fumigation wooden box.

The machine is with two wooden boxes. One is Host with rewind equipment.
The other is unwind laminating equipment.
