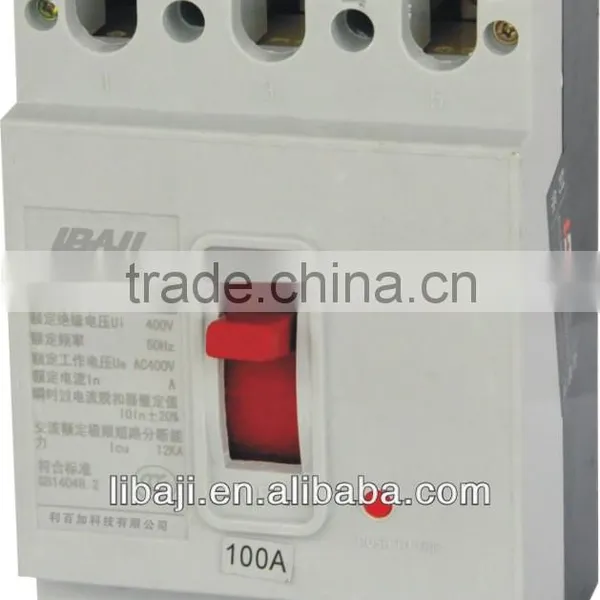

LB10 Molded Case Circuit Breaker

Name: LB10 Molded Case Circuit Breaker
Brand: libaji
SKU: 117934009
Availability: InStock

US$ 1 - 5 MOQ: 500 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

libaji

Model Number:

LB10

Libaijia Electric Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name libaji

Model Number LB10

Type Moulded Case

Poles Number 3

Specifications

1.High quality,Competitive price ,hot sales
2.OEM ,ODMservice
3.CE,CCC,ISO
4.Factory&Manufacturer

Circuit breaker application	Motor protection
Poles description	3P
Protected poles description	3t
Network type	AC
Network frequency	50/60 Hz
[In] rated current	100 A ( 40 °C )
[Ui] rated insulation voltage	800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage	8 kV
[Ue] rated operational voltage	690 V AC 50/60 Hz
Circuit breaker rating code	N

Utilisation category	Category A
Trip unit name	MA
Trip unit technology	Magnetic
Trip unit rating	100 A ( 65 °C )
Protection type	Short-circuit protection (magnetic)
Pollution degree	3 conforming to IEC 60947-

Control type	Toggle
Mounting mode	Fixed
Mounting support	Backplate
Upside connection	Front
Downside connection	Front
Mechanical durability	50000 cycles
Electrical durability	50000 cycles 440 V In/2 conforming to IEC 60947-2 30000 cycles 440 V In conforming to IEC 60947-2 20000 cycles 690 V In/2 conforming to IEC 60947-2 10000 cycles 690 V In conforming to IEC 60947-2
Connection pitch	35 mm
Local signalling	Positive contact indication
Short-time pick-up adjustment type Isd	Adjustable
[Isd] short-time pick-up adjustment range	9...14 x In
Height	161 mm
Width	105 mm
Depth	86 mm
