CJX1-45 380V AC Contactor

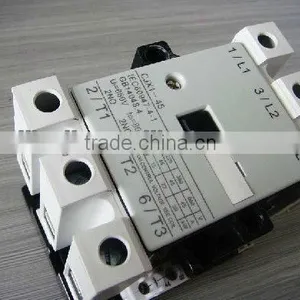

CJX1-45 380V AC Contactor thumbnail-1

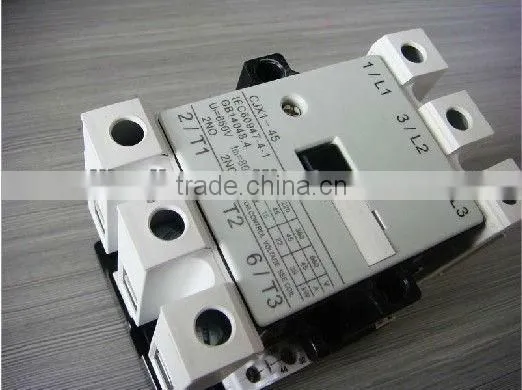

CJX1-45 380V AC Contactor photo-1
US$ 1 - 1,000 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
LBAJI
Model Number:
CJX1-45
Contact Supplier Request Quote Chat Now
Libaijia Electric Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name LBAJI
Model Number CJX1-45
Electricity Type AC
Number of Pole 3
Phase 3
Main Circuit Rating Voltage 380v
Main Circuit Rating Current Other, 45A

Specifications

*AC 380V or below
*10,20,40,60,100,150A
*Coil: 36,110,127,220,380V



magnetic ac contactor



CJX1(3TB,3TF)series AC contactors are suitable in electrical system with AC 50/60HZ,rated operating voltage up to 660V1000V.rated operating current up to 475A to make or break remote motors or system.They can form electromagnetic starters with suitable thermal overload relays,zccording to the standard IEC60947-4-1,GB14048.4

Main technical parameter



Model



CJX1-9

(3TB40)

CJX1-12

(3TB41)

CJX1-16

(3TB42)

CJX1-22

(3TB43)

CJX1-32

(3TB44)

CJX1-45

(3TF46)

CJX1-63

(3TF47)

CJX1-75

(3TF48)

CJX1-85



(3TF49)

CJX1-110

(3TF50)

CJX1-140



(3TF51)

Rated insulation voltage



660

660

660

660

660

1000

1000

1000

1000

1000

1000

Mechanical life(time×10000)



1000

1000

1000

1000

800

800

800

600

600

600

600

Rated working current A (380V)

AC-3



9

12

16

22

32

45

63

75

85

110

140


AC-4



3.3

4.3

7.7

8.5

15.6

24

28

34

42

45

48

Control of motor powe KW

AC-3

230/220V

400/380V

500V

690/660V

2.4



4



5.5



5.5

3.3



5.5



7.5



7.5

4



7.5



10



11

6.1



11



11



11

8.5



15



21



23

15



22



30



39



18.5



30



41



55

22



37



50



67

26



45



59



67

37



55



76



100

43



75



98



100


AC-4

400/380V

690/660V

1.4



2.4

1.9



3.3

3.5



6

4



6.6

7.5



13

12.6/12

21.8/20.8

14.7/14

25.4/24.3

12.9/17

30.9/29.5

22/21

38/36

28.4/27

49/26.9

36/35

63/60

Electric Life(time×10000)

AC-3



100

100

100

100

80

60

60

60

60

60

60


AC-4



20

20

20

20

20

15

15

10

10

10

10

Attract Coil operating voltage range (AC)t



0.81.1Us

Attract coil power consumption

AC

Absorption co-closed VA

10

10

10

10

10

17

17

32

32

39

39


Starting VA

68

68

68

68

69

183

183

330

330

550

550


DC

Absorption co-closed VA

6.5

6.5

6.5

6.5

10




Starting VA

6.5

6.5

6.5

6.5

10



Rated operating frequency h-1



AC-3

1200

1200

1200

1200

600

600

600

600

600

600

600
