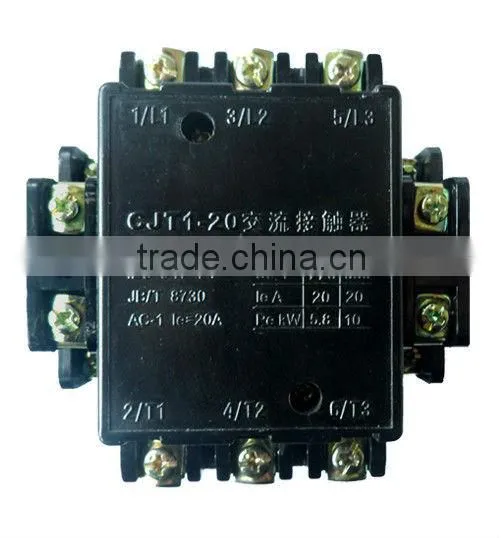

Help CenterCJT1(CJ20) Series AC Contactor
Related Products
-
CJT1(CJ40) Series AC ContactorUS$ 1 - 1,000MOQ: 500 Pieces -
CJT1(CJ10) Series AC ContactorUS$ 1 - 1,000MOQ: 500 Pieces
-
Electrical AC CJ20-630 ContactorUS$ 1 - 1,000MOQ: 500 Pieces
-
Electrical AC CJ20-250 ContactorUS$ 1 - 1,000MOQ: 500 Pieces
-
CJ19-32 Series Switch-over Capacitor Duty ContactorUS$ 1 - 1,000MOQ: 500 Pieces
Specifications
*AC 380V or below*10,20,40,60,100,150A
*Coil: 36,110,127,220,380V
CJT1(CJ10) series AC contactor:
CJT1(CJ10) series AC Contactor is designed for AC 50/60Hz, rated voltage up to 380V and rated current up to 150A.
Application:
CJT1 series AC contactor is designed for long-distance on & off in circuit and frequently
starting and controlling AC motors in power system of AC 50/60Hz, rated voltage up to 380V and rated current up to 150A. It also can be used as electronmagnetic starter
assembled with other thermal relay or electrical protection apparatus to protect circuit against overload.
Features:
1. Small volume
2. Light weight
3. Low power consumption
4. Long service life
5. Safe and reliable operation border

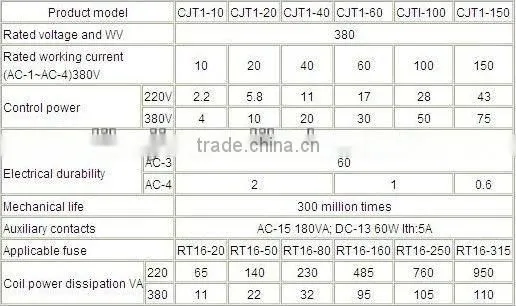

Technical data:
Circuit voltage:AC 380V or below
Rated current:10,20,40,60,100,150A
Coil voltage: 36,110,127,220,380V
Auxiliary contact:2NO,2NC
