YZD SERIES ELECTRIC VIBRATOR 3 PHASE AC INDUCTION MOTOR
Brief description:
vibrating motor is three-phase 380V, 50HZ asynchronous motor, enclosed, self -cooled , horizontal installation.
when the vibration motor in continuous operation ,the ambient air shall not contain corrosive and explosive gases ,
the ambient temperature must not exceed 40 degrees .
Main features:
1,Long service life,it only need to maintain the bearings regularly.
2,It sues smooth rotation to produce production,low noise.
3,The vibration force and the out power have a proper fit,the machine body owns light weight,small volume.
4,Many vibration motors can be used as a whole and produce various vibration forms,to complete a variety of operational requirements.
5,Fully enclosed structure,it can works on the condition that without proof requirements.
6,It only need to adjust the eccentric blocks on two outward side,to make it form a angle with the inner eccentric block,therefore the vibration force can be adjusted stepless.
7, The motors’ design can make the appropriate adjustments,to apply to the special environment.YZD series vibration motor is conjoined motors,the sealing performance is higher than the general vibration motor.
Application and usage:
The series vibration motor is widely used in powdered granular bulk materials the mechanized conveyor , to material . Crushing, screening ,
filling , tap , modeling , doffing , silo anti occlusion vibration mechanical excitation source . It can be used alone , can also be used in combination with
different installation methods , can meet different production needs . It is widely used in electricity, building materials , coal , mining , metallurgy ,
chemical industry, light industry, casting , petroleum and other industries .

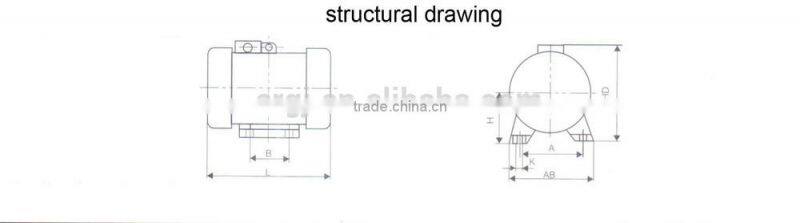

overall appearance
Technical data
