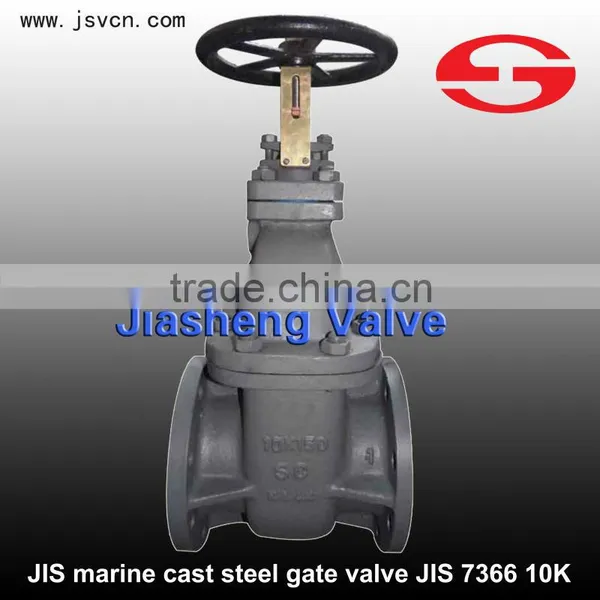

JIS Low Pressure Hydraulic marine cast steel gate valve
Cast Iron JIS Gate Valve
Jis gate valve is widely used for cutting off or adjusting the fluid in the fields of petro-chem, indu
Cast Iron JIS Gate Valve
Features:
1) Sizes: 40mm - 600mm
2) Seal: brass
3) Body: cast iron
4) Disc: cast iron
5) Stem: stainless steel/brass
6) Standard: JIS,KS
7) Pressure: 10K
9) Connection type: flange end
10) Control method: handwheel
12)Conveyance: By steam ship
Nominal Pressure 5kgf/cm2(0.49Mpa)
Seal Pressure 7.7kgf/cm2(0.76Mpa)
Intensity Pressure 10.5kgf/cm2(1.03Mpa)

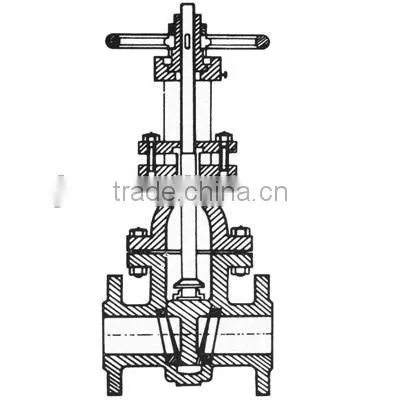

| DN | L | D | C | n-d | t | H | D1 | B2 | Weight(KG) |
| 50 | 180 | 130 | 105 | 4-15 | 16 | 285 | 125 | 153 | 13.5 |
| 65 | 190 | 155 | 130 | 4-15 | 18 | 330 | 140 | 172 | 19.0 |
| 80 | 200 | 180 | 145 | 4-19 | 18 | 380 | 160 | 195 | 24.2 |
| 100 | 230 | 200 | 165 | 8-19 | 20 | 430 | 180 | 230 | 35.3 |
| 125 | 250 | 235 | 200 | 8-19 | 20 | 495 | 200 | 265 | 48.1 |
| 150 | 270 | 265 | 230 | 8-19 | 22 | 560 | 224 | 295 | 65.3 |
| 200 | 290 | 320 | 280 | 8-23 | 24 | 680 | 280 | 365 | 103 |
| 250 | 330 | 385 | 345 | 12-23 | 26 | 800 | 355 | 438 | 164 |
Professional: We are professional manufacturer of valves.Ensure our valves is quality controlled and reliable
Quality Control: We have been engaged in valve design for many year and can guarantee best quality
Experienced Sales Team: Our sales team is experienced, and they all know our product well.
About Price: we provide very reasonable and competitive price for you
Business type : Manufacture Trading Company
Location : Zhejiang China (Mainland)
Year Established : 1995
Main product : metal to metal butterfly valves, rubber sealing butterfly valves, hydraulic butterfly valves, telescopic butterfly valves, and etc.
At present, we mainly produce/manufacture "ISO, API, ANSI, DIN, BS, EN, GB, JB" standard valves, also special valves according to the requirement of clients.
We have own factory ,
