Specifications
1.WCB Casting Carbon Steel Gate Valve2.ISO9001&14001
3.Manufacturer
4.gate valve
5.DN50~DN600

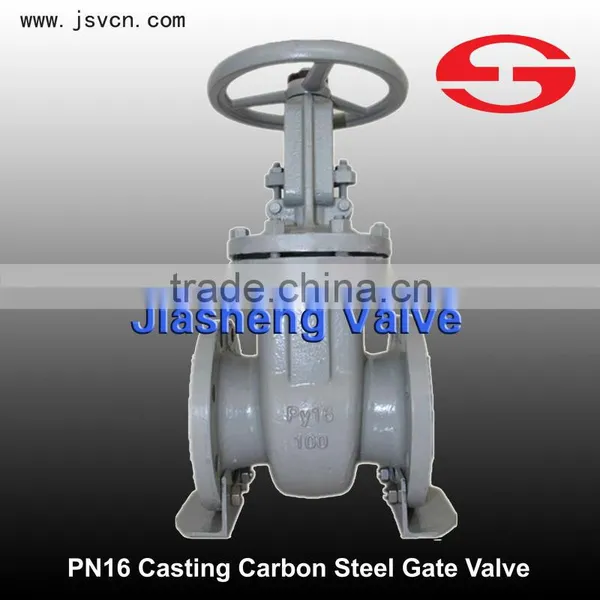

PN16 WCB Casting Carbon Steel Gate Valve Hand Operation
1.The material of our PN16 casting carbon steel gate valve
| Partes name | material |
| Valve body ,Bonnet | WCB |
| Disc | WCB+Stainless steel |
| Stem | Carbon steel ,Stainless steel |
| Yoke nut | Brass |
2.The performance of our PN16 casting carbon steel gate valve
| Type | Nominal pressure(MPa) | Testing pressure | Suitable temperature(°C) | Suitable medium | |
| Strength (water) (MPa) | Enclose (Water) (MPa) | ||||
| Z40/41H-16c | 1.6 | 2.4 | 1.8 | ≤425°C | Water,Vapour,Oil |
| Z40/41H-25 | 2.5 | 3.8 | 2.8 | ||
| Z40/41H-40 | 4.0 | 6.15 | 4.51 | ||
| Z40/41H-64 | 6.4 | 9.75 | 7.15 | ||
| Z40/41H-100 | 10.0 | 14.4 | 10.56 | ||
3.The size of our PN16 casting carbon steel gate valve
| Type | Nominal DN(mm) | Measurement(mm) | Reference Weight (kg) | ||||||||
| L | D | D1 | D2 | b-f | Zxd | H | H1 | D0 | |||
| Z41H-16C | 50 | 180 | 160 | 125 | 102 | 16-3 | 4X18 | 288 | 341 | 180 | 14.61 |
| 80 | 210 | 195 | 160 | 133 | 18-3 | 4X18 | 343 | 426 | 215 | 24 | |
| 100 | 230 | 215 | 180 | 158 | 20-3 | 8X18 | 392 | 486 | 245 | 33.9 | |
| 150 | 280 | 280 | 240 | 212 | 26-3 | 8X22 | 559.5 | 704 | 275 | 67.03 | |
| 200 | 330 | 335 | 295 | 268 | 2 | 12X22 | 696 | 896 | 320 | 107.8 | |
Professional: We are professional manufacturer of valves.Ensure our valves is quality controlled and reliable
Quality Control: We have been engaged in valve design for many year and can guarantee best quality
Experienced Sales Team: Our sales team is experienced, and they all know our product well.
About Price: we provide very reasonable and competitive price for you
Wenzhou Jiasheng Valve Co., Ltd, is a professional valve manufacturer since 1995. Our main products include high temperature regulating metal to metal butterfly valves, rubber sealing butterfly valves, hydraulic butterfly valves, telescopic butterfly valves, ball valve, gate valve and etc. At present, we mainly produce/manufacture "ISO, API, ANSI, DIN, BS, EN, GB, JB" standard valves, also special valves according to the requirement of clients.
