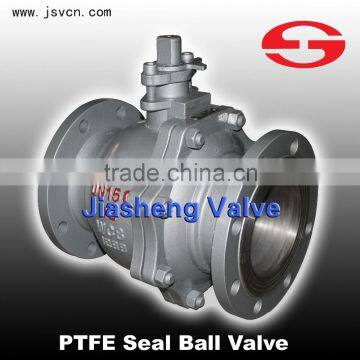

Ball Structure Kelly Cock Valve High Temperature Temperature of Media three-way motorized ball valve s
- 200 Piece / Pieces per Month
- NINGBO SHANGHAI
- T/T L/C D/P D/A
Product Details
| Standard or Nonstandard: | Standard | Structure: | Ball | Pressure: | Medium Pressure |
| Power: | Other, pneumatic operate | Material: | Stainless Steel | Temperature of Media: | Normal Temperature |
| Media: | Other, Water, Steam, Petroleum | Port Size: | ANSI B16.5 | Place of Origin: | Zhejiang, China |
| Model Number: | BV103-02 | Brand Name: | JSV | Application: | General |
Product Description
| Standard Standard or Nonstandard and High Temperature Temperature of Media three-way motorized ball valves |
1) Size: 1/2" - 12"
2) Pressure: 150Lb-600Lb
3) Applicable medium: Water, oil, gas, nitric acid, acetic acid
Material Specification:
| Description | WCB | CF8 | CF3 | CF8M | CF3M |
| Body & Body Cap | A216-WCB | A315-CF8 | A35-CF3 | A351-CF8M | A351-CF3M |
| Ball | A105-1025, A216-WCB | A182-F304L, A315-CF8M | A182-F304L, A351-CF3 | A132-F316, A351-CF8M | A182-F316L, A351-CF3M |
| Stem | A182-F6a | A182-F304 | A182-F304L | A182-F316 | A182-F316L |
| Seat | RPTFE, PTFE, NYLON | RPTFE, PTFE, NYLON | RPTFE, PTFE, NYLON | RPTFE, PTFE, NYLON | RPTFE, PTFE, NYLON |
| Seat Retainer | A105-1025 | ||||
| Spring | 3yc-7, 17-49H | 3yc-7, 17-49H | 3yc-7, 17-49H | 3yc-7, 17-49H | 3yc-7, 17-49H |
| O-ring | NBR | VITON | VITON | VITON | VITON |
| Stud | A193-B7 | A193-B8 | A193-B8 | A193-B8 | A193-B8 |
| Nut | A194-2H | A194-8 | A194-8 | A194-8 | A194-8 |
We can produce special valves according to the requirement of clients.
Wenzhou Jiasheng Valve Co., Ltd, is a professional valve manufacturer since 1995. Our main products include high temperature regulating metal to metal butterfly valves, rubber sealing butterfly valves, hydraulic butterfly valves, telescopic butterfly valves, ball valve, gate valve and etc. At present, we mainly produce/manufacture "ISO, API, ANSI, DIN, BS, EN, GB, JB" standard valves, also special valves according to the requirement of clients.
We have own factory :
Every product is under stringent detection and operation.
In 2015 ,we had joined the Carton Fair .
If you interested , pls feel free to contact me .
