Help CenterFull Automatic Vertical Weighting Vacuum Packing Machine
Related Products
-
Full Automatic Candy Packing Machine LineUS$ 1.00 - 1.00MOQ: 1 Piece -
Full Automatic Biscuit Bread Packing Machine LineUS$ 1.00 - 1.00MOQ: 1 Piece
-
Full Automatic Aseptic Carton Juice Packing MachineUS$ 1.00 - 1.00MOQ: 1 Piece
-
Full Automatic Chocolate Packing Machine LineUS$ 1.00 - 1.00MOQ: 1 Piece
-
High Pressure Water Washing MachineUS$ 1.00 - 1.00MOQ: 1 Piece

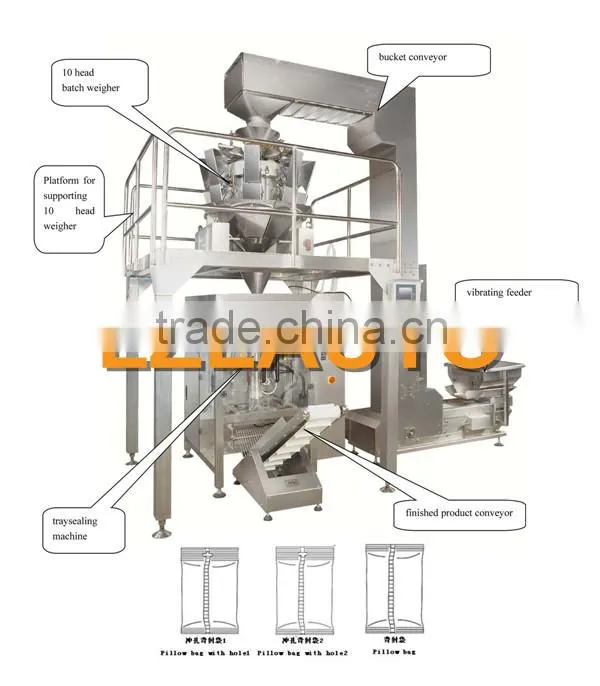

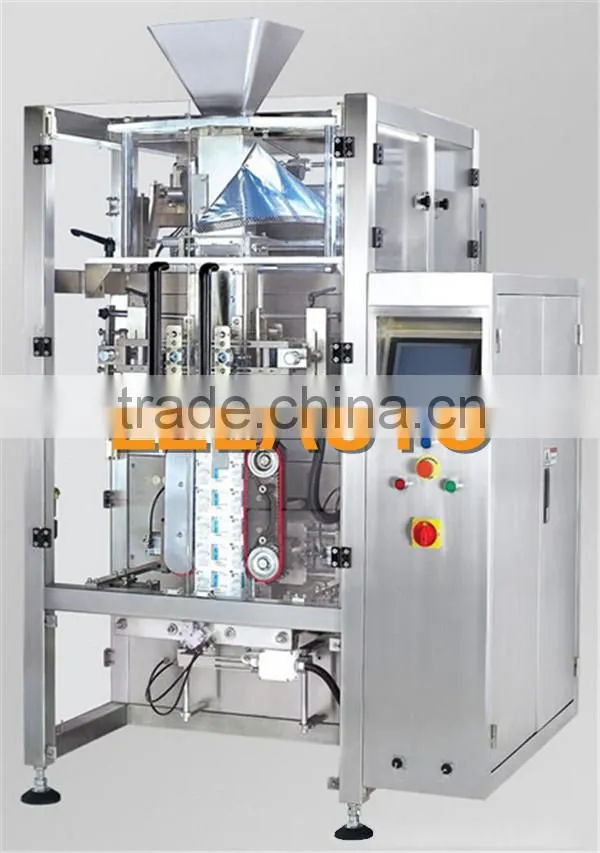

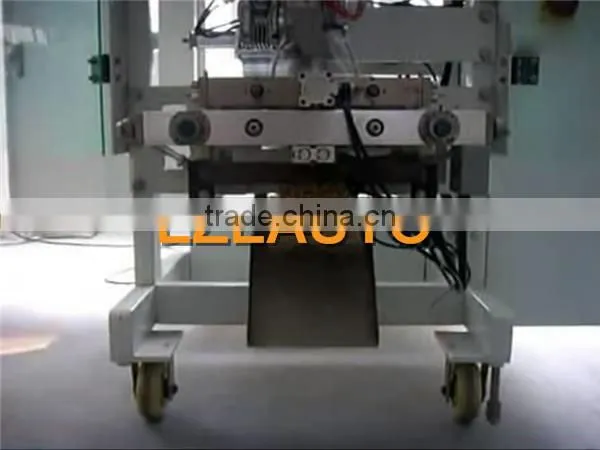

Full automatic 14 heads weighter vertical packing machine
Bag Packing machine
Suitable for packaging materials: composite film/foil membrane
Packing speed: and said even the machine speed of 20 or more bags/min
Bag size: the biggest bag 520 mm wide
Edge-sealing bag form: the use of three institutions (back cover)
Color touch screen membrane operation
Color code photoelectric control
Code printer is a standard configuration, can support two lines of print
Safety door control is independent of the PLC, controlled separately
Frame, electric cabinet, and material contact part is stainless steel, part of the transmission parts plating

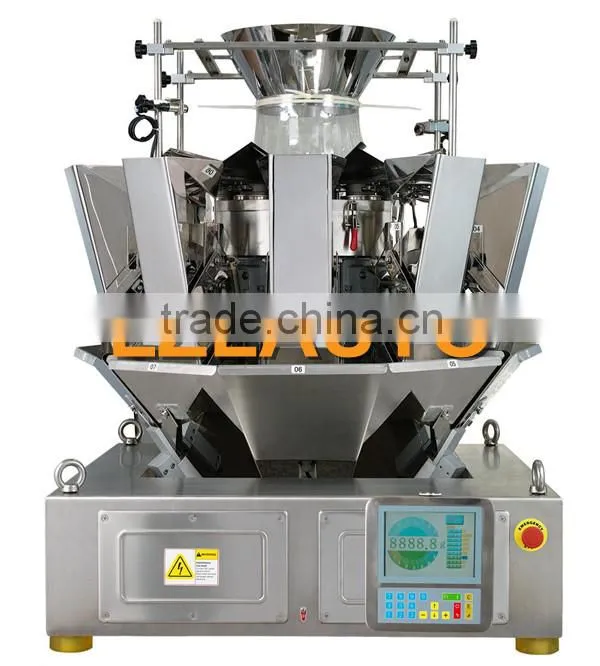

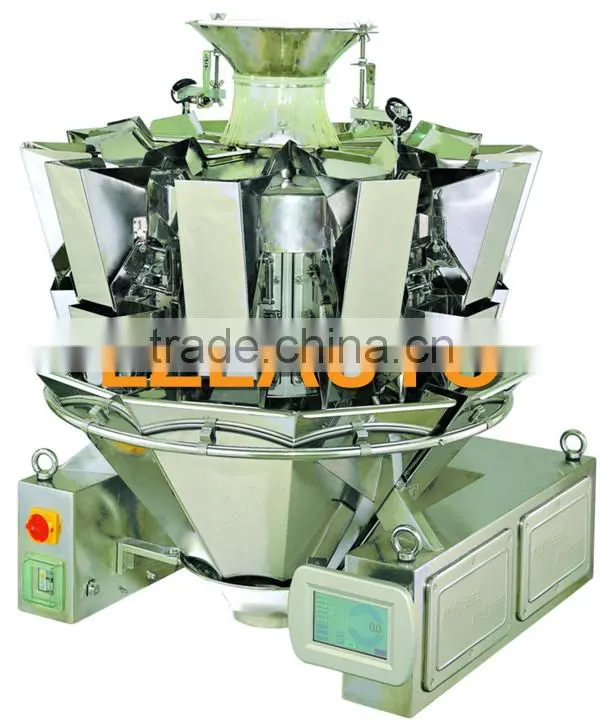

14 head weighter
Briefly explain Descriptive abstract
1. The oversize 5.5 L hopper is better suited for light weight, large volume of products, product scope of application is more extensive;
2. The more stringent stainless steel sealed waterproof structure, suitable for cleaning every day;
3. The rotation of main vibration and strong vibration machine better dispersion transport products;
4. The weighing bucket can in turn under the material blocking to prevent materials;
5. The new pattern of stainless steel panel helps to smooth movement of the vegetables, and will not damage the product itself.
The Main characteristics of the Main features
1. The main parts adopt stainless steel, the clean health, totally enclosed design easy to clean
2. According to the characteristics of by measuring objects are free to set the open Angle of the motor, realize high precision weighing
3. The combination scale weighing hopper can be set up for blanking, in order to avoid jams bulk material
4. Powerful data automatic statistics, the total weight of each batch production records, the total number of packages, percent of pass
Main features
Friction drive film transport belts.
Belt driving by the servo motor enables resistant, uniform, well-propartioned seals and give great operating flexibility.
The models suitable for the powder packing,it prevent excess cutoff during sealing and limit the occurrence of sealing damage,
contributing to a more appealing finish.
Use PLC Servo System and pneumatic control system and super touch screen to form the drive control center; maximize the whole
machine’s control precision, reliability and intelligentized level.
Touch screen can store the technical parameters of various kinds of products, no need to reset while products changing.
Stainless steel structure,contact parts SS304,some driving parts made of electroplating steel.
Extremely simple and easy to learn programming software. Horizontal jaw obstructiondetection, incorporating instantaneous
machine stoppage.
Fully interlock guarding system, film reel runout device. Full synchronisation for printers, labellers and feed systems.

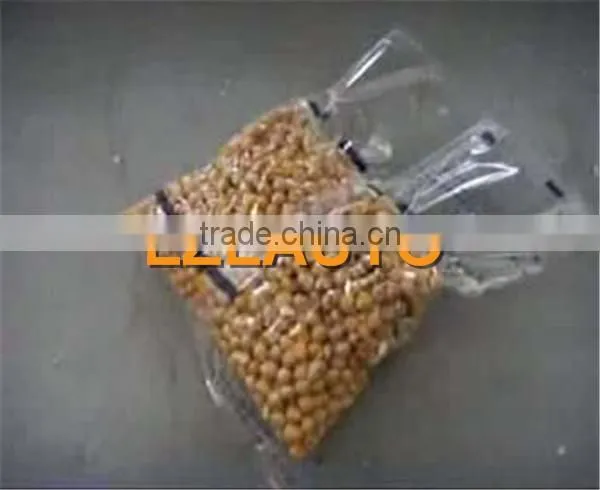

The Model is suitable for Pillow bag, Triangle bag ,Chain bag, Hole bag.
Packing speed maximum 70 bags/min (250 g, for example)
Bag of maximum 520 mm wide
Largest bag length 550 mm
Air quantity 6 kg/cm squared after 0.25 m/min
Power consumption three-phase 380 v, 3 kw
Stainless steel frame, electric cabinet, and material contact parts, transmission parts plating
Body weight 900 kg

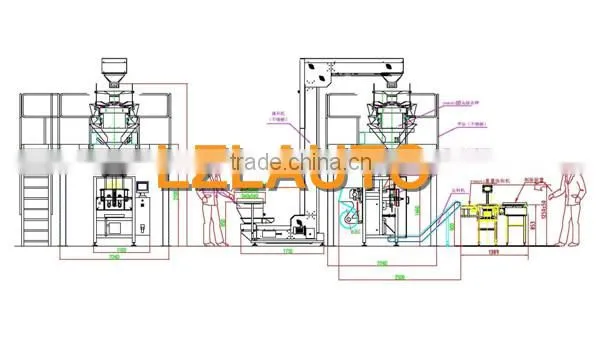

The fuselage size 1750 * 1600 * 2220 mm (length x width x height)
Suitable for packaging materials: composite film/foil membrane
Packing speed: and said even the machine speed of 30 or more bags/min
Bag size: the biggest bag 520 mm wide
Edge-sealing bag form: the use of three institutions (back cover)
Color touch screen membrane operation
Color code photoelectric control
Code printer is a standard configuration, can support two lines of print
Safety door control is independent of the PLC, controlled separately
Frame, electric cabinet, and material contact part is stainless steel, part of the transmission parts plating
Packaging machine specific configuration list see attachment
Parts list:
1 touch screen (color, 7 inches) MT6070IH Wenview
2 program controller (PLC) FX1N - 60 mt Mitisbish
3 1 kw servo motor, 1 kw panasonic
4 1 kw and 1 kw panasonic Japan servo drives
5 the safety door switch Omron
6 the safety relay OMRON
7 SMC pneumatic components
