Specifications
hotel soap into cartons packing machinehotel soap into cartons packing machine
Automatic high speed cartoning machine
| Max speed | 200 cartons per minute |
| Normal speed | 180-200 cartons per minute |
| Model | TH260 |
| Warranty period | 1 year |
| Machine dimension | L4700*W1495*H1930 |
| Rated voltage | 380 V |
| Phase | 3P+N+G |
| Frequency | 60 HZ |
| Control Voltage | 24 V |
| Main speed reducer | 2.2 kW |
| Glue sprayer | 6 kW |
| Control cabinet | 0.8 kW |
| Total current | 10 A |
| Vacuum degree | -0.08 Mpa |
| Compressed air consumption | 15 L/min |
| Compressed air pressure | 0.6 Mpa |
TH260 series full-automatic cartoner is widely used in the package field, such as pharmaceuticals, food, daily chemical and so on. It can function independently, or can be joined to the whole packing line.
It is mainly composed of the following parts:master driving unit, product-transferring unit, product-suction unit, carton-transferring unit, carton-suction unit, product-push unit, coding unit, carton-pressing unit, glue sprayer (carton flap folding unit), discharge unit, electric control unit and pneumatic unit. Under coordinated work of the above parts, the product packing procedure is completed perfectly.

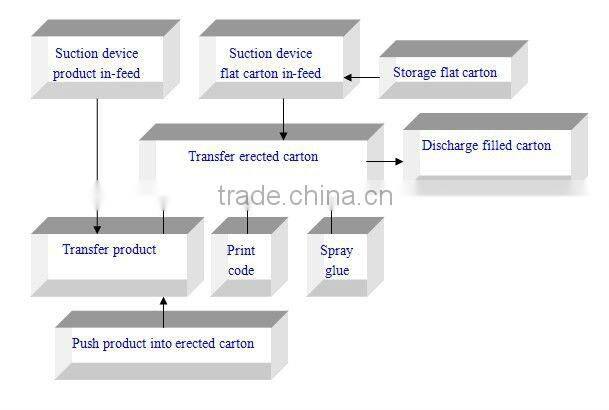

Specific operation principles are as follows:
Products flow onto the feeding-in belt from upstream machine, and were put to transferring shoes by product suction unit.
When the suction cups under the control of photoelectrical switch detect that the products are ready,the carton-suction rod begins to suck carton,meanwhile carton-pull rod begins to pull the carton,and then the carton-unfolding rod unfolds the carton,finally the carton is successfully put on the carton guide rail. The carton –suction device has a protection function -- no product entering, no carton suction.The product pusher unit boasts the protection function of -no push when there is product without cartons.
The products which enter cartons will undergo flap folding, coding, glue spraying and closing with the cooperation of workbench closing unit. The cartons filled with products will be tightened by the discharge conveyor and then transferred to the case packing platform.
This machine’s speed is controlled by variable frequency and programmable control unit. The visible packing speed and the packing procedures are tracked by photo eyes. This machine boasts safety devices such as overloading protection, electricity leakage protection, and failure alarm.
This user-friendly machine adopts world famous control elements with touch screen in both Chinese and English.
This compact equipment operats simply and reliably,boasting fast packaging speed,stable packaging quality,as well as smooth and beautiful packaging appearance.
Pre-Sale Services
Even before you purchase one of our products, we want to make sure you get the most out of the products you have chosen. That's why we offer these pre-sale services-to help you make the proper product selection in terms of size, specifications and application.
Sell Service
Listen to you carefully and offer you the best packing solution.
After Sale Service
We know that our customers need the assurance their packaging production operations can be depended upon! That's why we have a dedicated service department, consisting of expert factory trained equipment technicians to service the many different brands of systems we carry.
Han Di feels very strongly about the importance of supporting our customers and the product solutions we provide. Consequently we offer comprehensive maintenance options designed to prevent equipment issues before they become problems. As the old adage states, an ounce of prevention is worth a pound of cure!
Han Di provides monthly, quarterly, semi-annually and yearly maintenance agreements on a wide range of packaging equipment systems. This program has many benefits that will SAVE you TIME and MONEY!
- Decreases Chance of Equipment Downtime
- Increases Life of System
- Maintains Optimal Equipment Efficiency
- Increases the Safety of the Equipment
- Increases System Reliability
- Increase Production Levels
And you'll have the added assurance and peace of mind that your packaging operation will be operational when you need it most.
For your convenience, our service department will work according to your schedule. As an added benefit to our customers, we will send you a periodic letter to remind you when recommended preventative maintenance is due. The cost of the program is dependant upon number and type of equipment to be serviced.
Additionally our comprehensive preventative maintenance program is offered free of charge to our "Star Preferred Customer Group".
