Specifications
1, IP65 saw or infrared touch bezel2, open frame and panel mount type optinos
3, 15/17/19 series

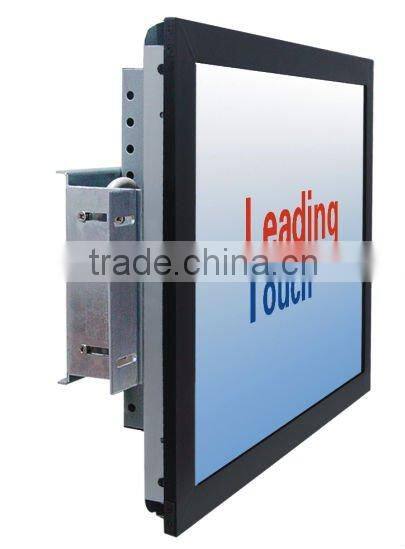

LeadingTouch kiosks LCD's touchmonitors are designed for easy integration into kiosk, gaming machine, industrial enclosure and other installations where compact, touch-integrated display are preferred touchscreen.

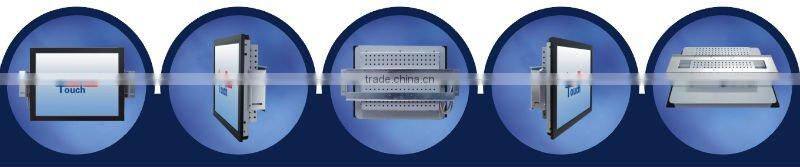

This kiosks Touch Monitor are designed for space saving and easy mounting integrations. The Open Frame configuration along with optional side mounting brackets would enable you to easily customize into kiosks, cabinets, in-wall as well as other enclosures.
Model |
TM-1929 |
Description |
19” TFT Open Frame Touchmonitor |
Case/Bezel Color |
Black |
Display |
4:3 Ratio Active matrix TFT LCD |
Optimal(native) resolution |
1280X1024@60Hz |
Sychronization Range |
Horizontal:30-80 kHz; Vertical: 60-75Hz |
Useful screen area |
Horizontal: 14.96" (380 mm);Vertical: 11.97" (304mm) |
Colors |
16.7 million |
Brightness |
LCD panel: 300cd/m2 (typical) |
With SAW touchscreen: 280 cd/m2 (typical) | |
Pixel Pitch |
0.294 x 0.294 mm |
Response Time |
8 msec (typical) |
Contrast ratio |
800:1 typical |
Viewing angle(typical, from center) |
Horizontal (left/right): 160°(80° /80° ) |
Vertical (up/down): 170°(85° /85° ) | |
Backlight Lamp life |
50,000 Hrs to 1/2 brightness |
Input video format |
VGA or DVI optional |
Input video signal connector |
Mini D-Sub 15-Pin VGA type |
On Screen Display(OSD) |
Remote OSD with 1.2m cable |
Touch Technology |
SAW(Infrared, Capacitive Optional) |
Touch Interface |
Combo 10ms232 and USB interface |
Touch Resistive Time |
10ms |
Mounting Options |
Open Frame VESA, 75 mm & 100mm |
Power supply |
External:100-240V AC, 50-60 Hz |
Power Consumption |
50W max |
Temperature Range |
Operating: 0°C to 50°C; Storage: -20°C to 60°C |
Humidity Range |
Operating: 10%-90%; Storage: 5%-90% no condensing |
Touchmonitor Dimension |
515x 367x 65.7(mm) |
Shipping Carton Dimension |
TBD |
Weight(approx.) |
TBD |
Warranty |
Monitor: 3 years’; LCD Panel: 1 year |
Agency Approvals |
FCC, CE, RoHS compliant |
