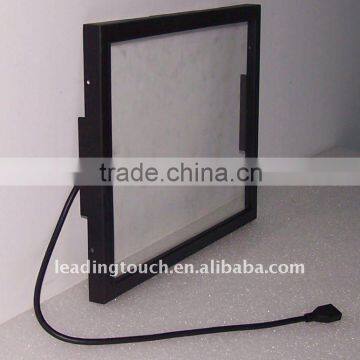

Leadingtouch 10.4" Waterproof SAW Touch Screen Frame for Kiosks Monitors TB-1049

Specifications

1, waterproof saw touch plstic frame for touch monitor
2, easy integration to a touch display.
3, 10.4",12",15",17",19",22"

Size
General Size	10.4",12",15",17",19",22"
Custom Size	7"-26"
Touch technology	SAW,IR,Resistive,Capacitive
Performance
Resolution(Interpolation)	4096*4096
Linearity Error	<±1%
Response Speed	<10ms
Mechanical
Construction	Sensors are sealed inside frames
Frame Material	Metal / Plastic
Input Method	Finger or gloved hand (rubber ,cloth or leather)
Touch Times	7,000,000
Touch Activation Force	<85g
Vandal-proof	No break by 1-pound steel ball dropping from 130 cm high
Waterproof	No defect by applying water on active area
Dustproof	With frames sealed by dustproof strips to prevent dust from accumulating on sensors
Surface Durability	Surface durability is that of glass, Mohs' hardness rating of 7
Optical
Light Transmission	90%(Meet ASTM D1003)
Gloss	Antiglare surface (curved or flat): 95 ± 15 gloss units or 65 ± 15 gloss units
	per ASTM D2457 using a 60-degree gloss meter
Environmental
Temperature	Operating Range: -20°C ~ 70°C
	Storage Range: -40°C ~ 85°C
Relative Humidity	Operating Range: 0%~90% RH (no dew falls)
	Storage Range: 0% to 95% RH (no dew falls)
Altitude	Up to 5,000m
Life Time	At least 10-years
Electrical
Operation Voltage	Typical +DC 5V, +4.75V to +5.25V
Power Supply	USB or PS/2 interface
Interface	Full Duplex USB 2.0 (Full Speed) Plug and play compatible
	Serial RS-232. Baud Rate: 9600, 8 Data Bits, 1 Stop Bit, No Parity
Electrostatic Protection	15 kV air / 8 kV contact discharges (EN61000-4-2,1995 :Level 4)
Touchpoint Density	>100,000 touchpoints/in² (15,500 touchpoints/cm²)
Agency Approvals	CE, FCC, Rohs
Operating System
Operation System Linux/ Dos / Windows ME/95/98 / NT4.0/XP/2000/Mac OS
Reliability
MTBF	Greater than 1,543,000 hours per MIL-HDBK-217-F2
Thermal Cycling	Ambient (0.5 hr) to 65°C / 90%RH (0.5 hr), 12 thermal cycles, 2°C/Minute
