API Cement Float Collar and Shoe With PDC Drillable

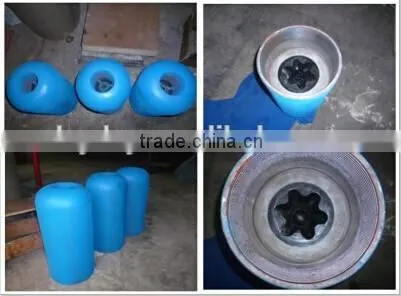

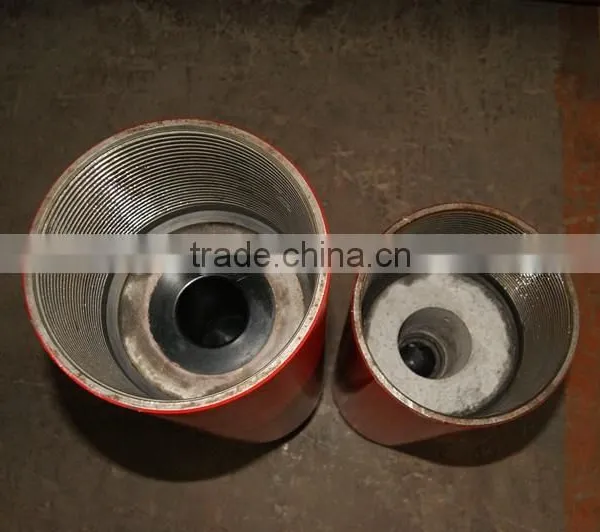

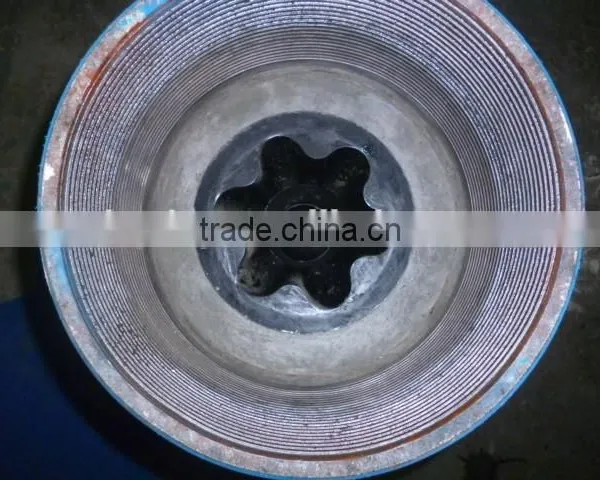

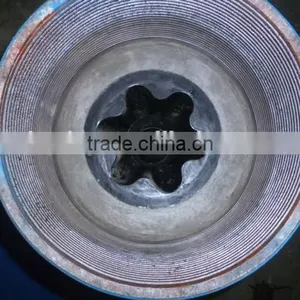

Cement float collar and float shoe are conventional necessary accessories of casing string substructure, usually connected in the bottom of casing string, used to guide the casing string smoothly into the well, to prevent cement backflow and create pressure then cement solidification after Realizing pressure in the cementing well, decrease derrick load, control height of cement plug. This components of the device processed drillable aluminum alloy , Finally can directly drill.
Specification |
O.D. |
Nominal Diameter |
Positive pressure |
Reverse pressure |
Connection |
Standard |
5 1/2″ |
φ154 |
φ122 |
20 |
25 |
LCSG |
SY/T5168-2000 |
7″ |
φ194 |
φ159 |
20 |
25 |
LCSG |
SY/T5168-2000 |
9 5/8″ |
φ270 |
φ220 |
20 |
25 |
LCSG |
SY/T5168-2000 |
13 3/8″ |
φ365 |
φ313 |
10 |
10 |
CSG |
SY/T5168-2000 |
Dezhou Yuanda Petroleum Machinery Co., Ltd. is a very famous high tech enterprise in Dezhou of China that
sets oil mechanical product design,development,production,sales and sevice as a whole,and registered capital of 20 million yuan. It is located in Dezhou City, Shandong Province, which covers an area of 78,000 square meters. We have the luxurious office building and two large production plants which cover 9,000 square meters , as well as the acquisition of the advanced production equipment with a total investment of more than 30 million in fixed assets element. Now it employs 128 people, including 38 engineers and technicians, and 86 secondary education workers. At present, we has passed ISO9001 quality system certification of DNV, ISO14001, OHSAS18001 certification.
