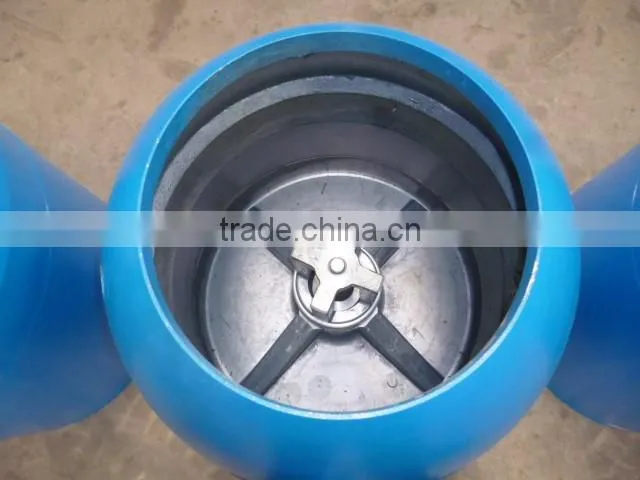

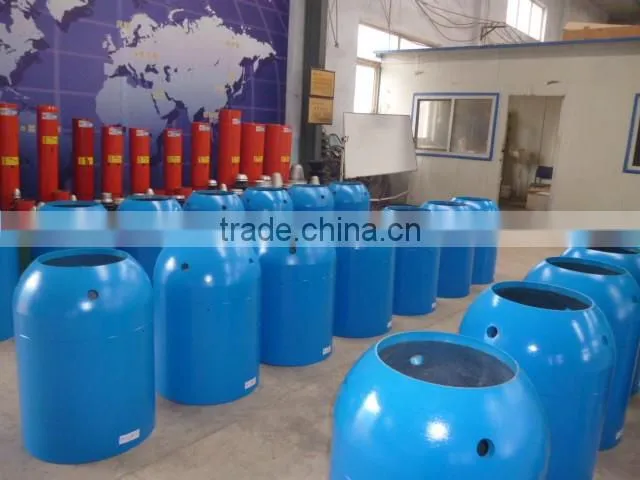

Help CenterStab-in Float Collar and Float Shoe
Related Products
-
Cementing Tool Stab in Type Float Collar and Float ShoeUS$ 10 - 50MOQ: 1 Piece -
API Casing Guiding Tool Float Collar and Float Shoe for OilfieldUS$ 10 - 50MOQ: 1 Piece
-
API AUTOMATIC-FILL FLOAT COLLAR &SHOE FOR CEMENTING TOOLUS$ 10 - 100MOQ: 1 Piece
-
API Oilwell Equipment Parts Float Collar and Float Shoe for CasingUS$ 10 - 100MOQ: 1 Piece
-
API Cement Tool Float Equipment for Oilwell CasingUS$ 10 - 100MOQ: 1 Piece
1. Structure:

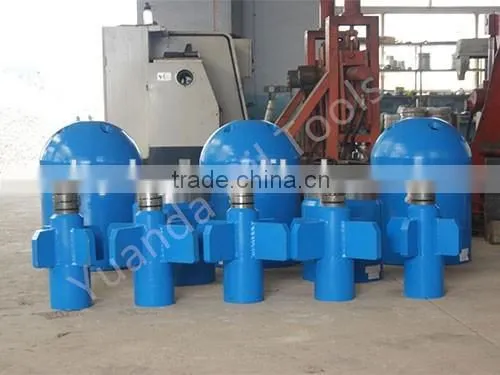

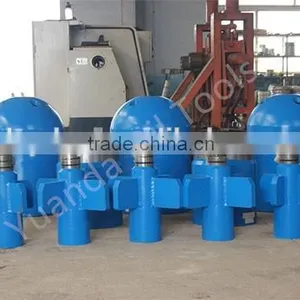

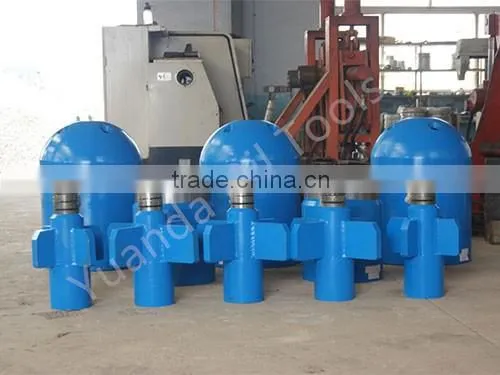

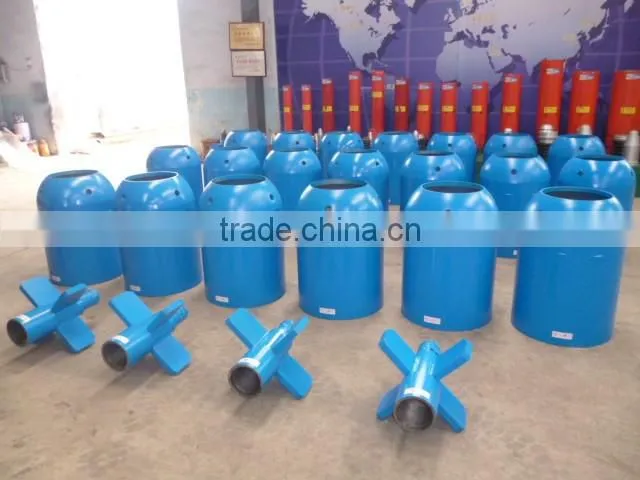

It mainly consists of stab-in stinger and stab-in float collar or float shoe. And could connect one common float shoe or guide shoe in lower when use the stab-in float collar. There have the guide wing on the stab-in stinger, could make sure the stab-in stinger will stab in the jack successfully.
2. Purpose:
could reduce the mixed slurry, calculate correctly, save the cement and increase cementing quality.
3.Parameter
|
Specification Parameter |
103/4″ (273) |
133/8″ (340) |
185/8″ (473) |
20″ (508) |
Rated load of jack(t) |
≥3 |
≥3 |
≥3 |
≥3 |
Sealing capacity between stab-in stinger and jack(MPa) |
≥9 |
≥9 |
≥9 |
≥9 |
Resistance to return pressure capacity (MPa) |
≥8 |
≥8 |
≥8 |
≥8 |
The length of stab-in stinger seal section (MM) |
120 |
120 |
120 |
120 |
Connection thread of stab-in stinger |
NC50(410) |
NC50(410) |
NC50(410) |
NC50(410) |
Max. OD of stab-in stinger (MM) |
Φ247 |
Φ311 |
Φ447 |
470 |
