oilfield downhole tool casing packer
1.Main application
External casing packer adopts the hydraulic expansion type structure and is mainly used for Complex well completing project to improve well cementing and completing quality. The practice proves that the tool is simple, wide adaptability, and is a kind of important completion tool.
2.Product standard :
Q/JH 024—2004.

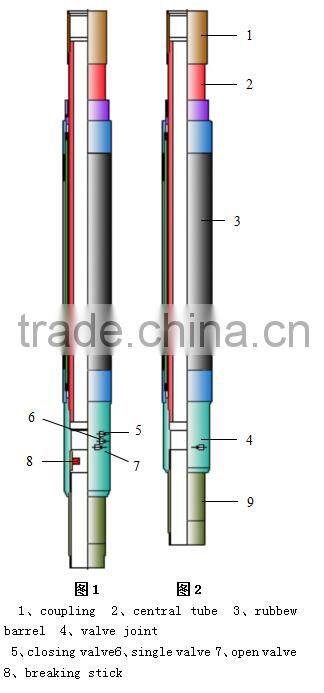

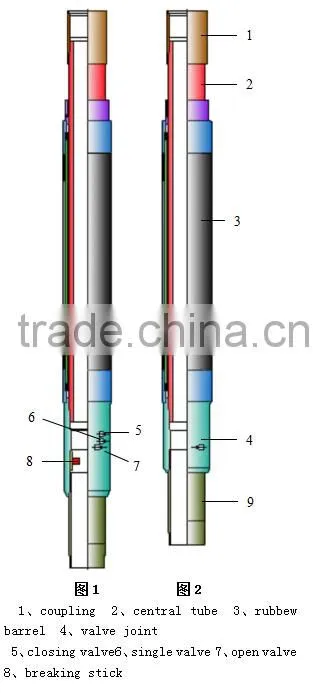

3.Main structure:
External casing packer consists of the valves joint assembly,glue tube assembly,central canal and short joint, etc.
The valve system is divided into axial and radial valve system. Radial valve system consists of one set and three valves
.
4.Specification
specification |
DIA. (mm) |
Max OD.(mm) |
ID.(mm) |
Total Length(mm) |
Glue Tube Length (mm) |
Working DIA.(mm) |
Connection Thread |
HXK48 |
48 |
78 |
|
2130~2740 |
915~1520 |
84~132 |
1.9TBG |
HXK60 |
60 |
89 |
52 |
2130~2740 |
915~1520 |
95~147 |
23/8″TBG |
HXK73 |
73 |
102 |
62 |
2620~12000 |
950~11000 |
109~168 |
27/8″TBG |
HXK89 |
89 |
114 |
76 |
2620~12000 |
950~11000 |
121~188 |
31/2″TBG |
HXK102 |
102 |
133 |
89 |
2680~12000 |
950~11000 |
141~220 |
4″TBG,LTC |
HXK114 |
114 |
146 |
97 |
2660~12000 |
950~11000 |
155~241 |
41/2″LCSG |
HXK127 |
127 |
148 |
108 |
2680~12000 |
950~11000 |
157~245 |
5″LCSG |
HXK140 |
140 |
178 |
121 |
3000~12000 |
950~11000 |
188~294 |
51/2″LCSG |
HXK140 |
140 |
190 |
121 |
3000~12000 |
950~11000 |
201~314 |
51/2″LCSG |
HXK178 |
178 |
206 |
155 |
3000~12000 |
950~11000 |
216~337 |
7″LCSG/BTC |
HXK245 |
245 |
286 |
220 |
3150~12000 |
950~11000 |
303~472 |
95/8″LCSG |
HXK273 |
273 |
324 |
250 |
3200~12000 |
950~11000 |
343~535 |
103/4″CSG |
HXK298 |
298 |
349 |
273 |
3400~12000 |
950~11000 |
365~576 |
113/4″CSG |
Dezhou Yuanda Petroleum Machinery Co., Ltd. is a very famous high tech enterprise in Dezhou of China that
sets oil mechanical product design,development,production,sales and sevice as a whole,and registered capital of 20 million yuan. It is located in Dezhou City, Shandong Province, which covers an area of 78,000 square meters. We have the luxurious office building and two large production plants which cover 9,000 square meters , as well as the acquisition of the advanced production equipment with a total investment of more than 30 million in fixed assets element. Now it employs 128 people, including 38 engineers and technicians, and 86 secondary education workers. At present, we has passed ISO9001 quality system certification of DNV, ISO14001, OHSAS18001 certification.
1.Question:Are you manufacture or trader ?
Answer : We are one professional and leading manufacture in Dezhou Shandong Province.
2.Question:How about the quality and price?
Answer :All our cement tools meet the API standard quality with very good cost perfomance.
3.Question: How about the quality warranty time?
Answer : one year.
