The expansion tank or expansion vessel is an very important component of the the wall hung gas boilers, it is a small tank used to protect closed water heating systems and domestic hot water systems. The tank absorbs excess water pressure caused by thermal expansion.

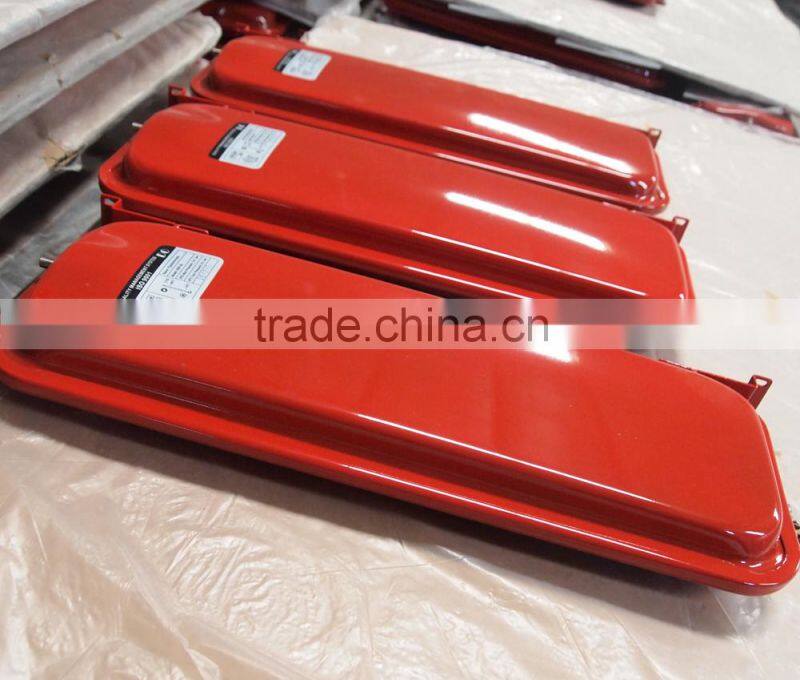

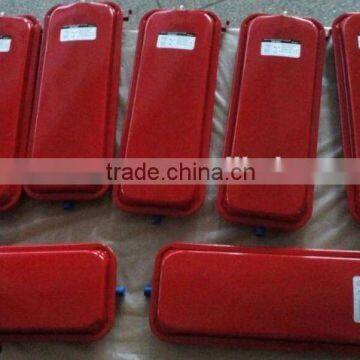

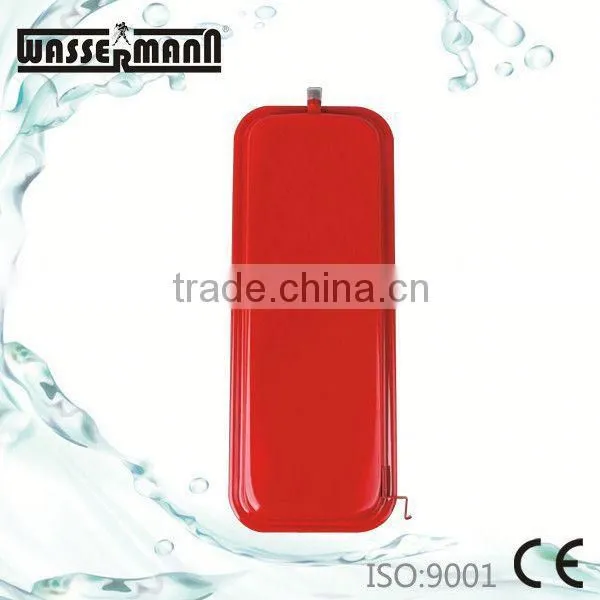

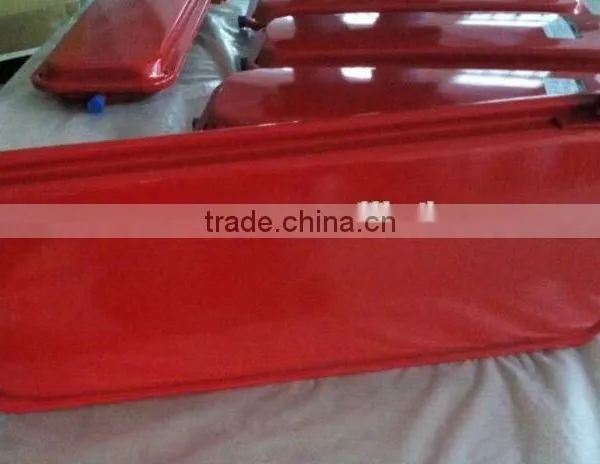

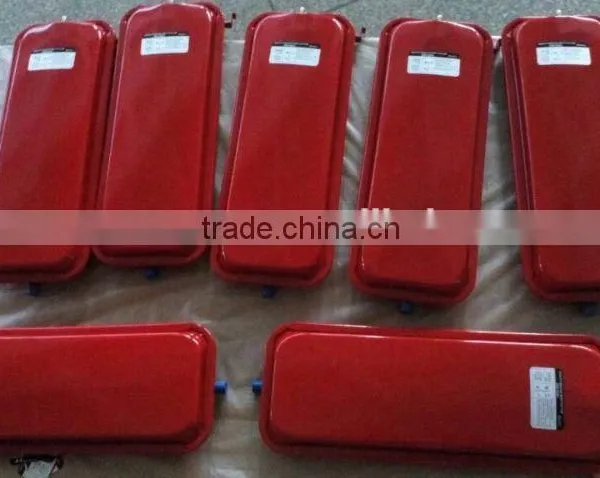

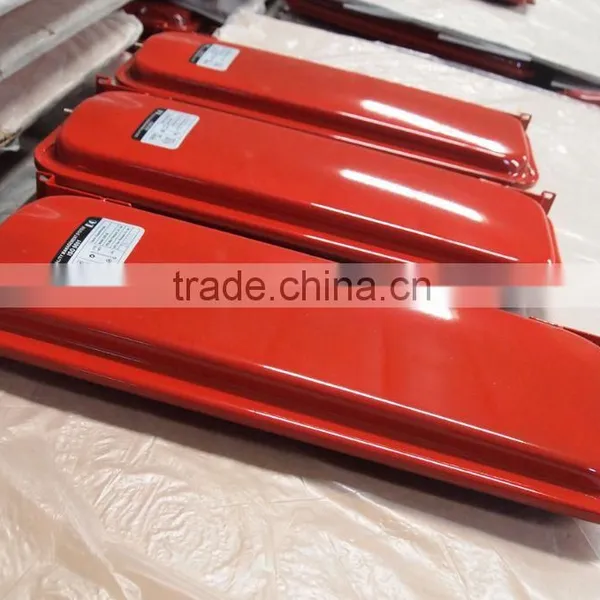

Product Image
Features
1. Galvanized plate, with eco-friendly paint.
2. Plate thinkness is 2mm.
3. Max. working pressure : 4.5 bar
4. When the water pressure reaches 2 bar, the steel plate and the membrane will separate.
5. Max. water temperature up to 110°c
6. Filled in nigrogen pressure: 14.5PSI
7. Full tightness tests are done one by one before the packing, to make sure there will be no leakage.

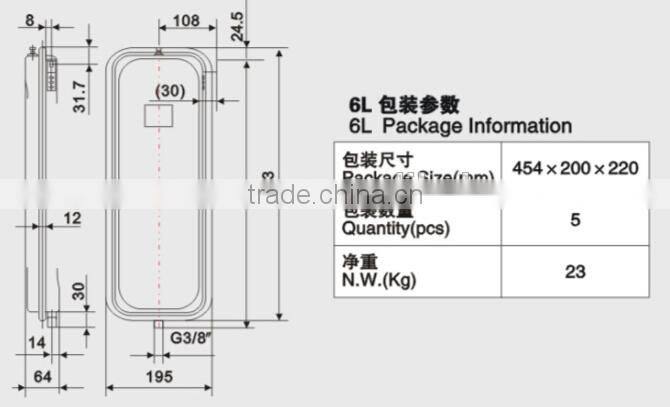

Dimensions
Working Principle:
1.When the pressure of the heating system rise, the liquid is pushed into airbag and then the airbag expanses to compress
the air between airbag and tank.The liquid will not stop entering until the pressure of air and system are the same.
2.When the pressure of the heating system drop, the air pressure between airbag and tank is higher than the system
pressure, the liquid is pushed out into the system by the air,so that the system pressure will not drop too much.
Characteristics:
Internal bladder structure ensures that the water does not touch with the tank wall, so the walls of the pressure tank internal no rust and the pressure tank without dewing phenomenon, this prolong the life of tank greatly. Compared with traditional water container, expansion tank in refrigeration and HVAC system has the advantages of convenient installation ( not installed in the highest point ) takes up little space, no two times pollution, long life and so on.
Each tank will be packed by a plastic bag, then pack in the pallets.
WASSERMANN is a distributor of climate and sanitary hot water solutions and services, operating in a market more than 10 years.
It is a company always focuses on customer needs,thus, we offer integrated systems instead of just single products. Our basic product assortment combines the following fields:
. Hot Water Circulating Pumps
. Gas Boiler Circulating Pumps
. Gas Pressure Regulators
. Gas Relief Valves and Gas Filters
. Gas Solenoid Valves and Gas Detectors
. Hot Water Pressure Tanks
. Gas Boiler Expansion Tanks
. Manifolds
. Brass Ball Valves & Fittings
. Mixing Valves, Thermostatic Valves and Diverting Valves
. Air Vent Valves & Safty Valves
. Thermostats
. Manometers
. PTFE Tapes
. Voltage Stabilizers
. Plate Heat Exchangers
. Water Pre-Filters and Water Filters
. Aluminum Plastic Pipes
. Aluminum Radiators
