Ground Screw Electric-Driver Machine WBQ HD-01
- QINGDAO
- T/T D/P D/A Credit Card PayPal
You May Like
-
Easily Operation Spiral Piling Machine for Solar Ground Mount System
-
Ground Screw Electric-Driver Machine for Fence WBQ HD-03
-
Ground Screw Electric-Driver Machine for Solar Power System
-
SWDL150 Spiral Piling Machine for Solar System
-
SWDL150 Spiral Piling Machine for Solar System, Constructions
-
SWDL150 Spiral Piling Machine for Solar System, Constructions, Industries
Product Details
| Place of Origin | Shandong, China | Brand Name | WBQ | |
| Model Number | WBQ HD-01 | Drill Type | Other, Ground Screw Electric-Driver | |
| Application | For solar power project and fence etc | Frequency | 800 | |
| Max. Drilling Diameter | 68mm | No-Load Speed | 8(R/MIN) | |
| Rated Input Power | 200V | Rated Torque | 1500 | |
| Rated Voltage | 220V | Weight | 10KGS |
Product Description
Specifications
Ground Screw Electric-Driver Machine for garden and fence:1Easily operation
2Application for digging&drilling
3Time-saving
1. Brief Introduction of WBQ Company:
Making history: since 1990 |
| Main market: the European, USA, Asia market |
| Special spec. or marks can be made according to clients' instruction |
| Owning related intellectual properties |
2. Ground Screw Electric-Driver Machine's Technical Parameters:
| Technical Parameters | ||||||
| Rated Torque (Nm) | Rotation Speed (r/min) | Rotation Speed (r/min) | Rated Current | Square Head Size | Host Machine Net Weight (kg) | Maximal Ground Screw |
| 1500 | 8 | 220V/60Hz | 4A | 25*25 | 10 | φ68*1000 |

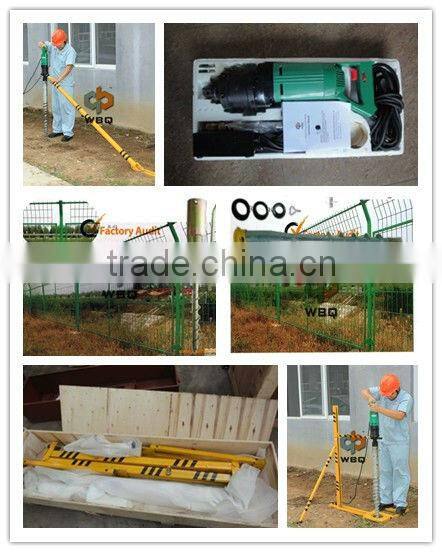

3. Ground screw electric-driver
A. Functional Description | |
WBQ ground screw drivers are designed to install or remove various sizes and types of WBQ ground screws. | |
B. Assembly | |
This driver is shipped completely assembled,only the counter torque devices to be fixed during drilling the ground screw. Detailed informations for assembly refer to attached video CD. | |
C. Drill out the ground screw | |
There is a reverser on the handle of host machine. When we push the reverser, the host machine will contrarotate. Then ground screw will be drilled out. | |
D. Control instrument regulation | |
When the ground screws work normally, the adjusting knob of control instrument can be adjusted to maximum. It can ensure the host machine output the biggest torque. | |

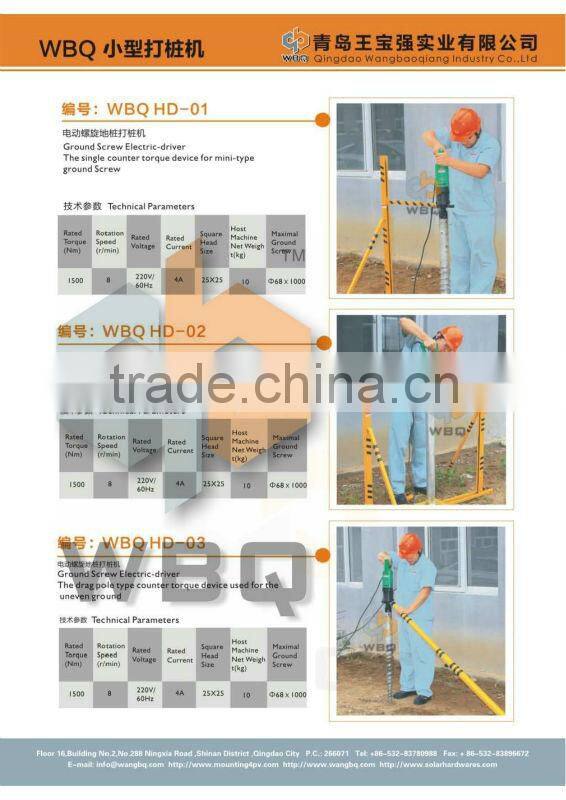

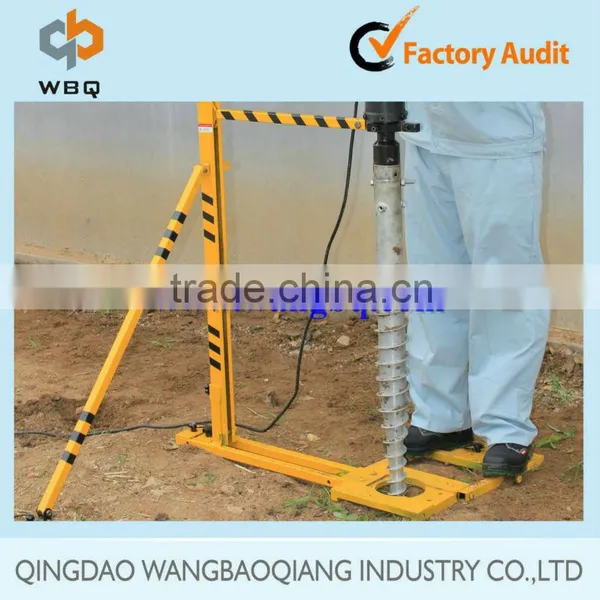

E. Three pattern of the counter torque device | |
1. The single counter torque device for mini-type ground screw 2. The double counter torque device for bigger ground screw 3. The drag pole type counter torque device used for the uneven ground |
